Specification
Brand : WYDDDARY
BulletPoint1 : 【5KV AC Testing】Effortlessly perform high-voltage withstand tests with this RK2670AM tester, capable of handling 5KV AC voltages. The environmental temperature is 0~40℃, the relative dumidity≤75%.
BulletPoint2 : 【Reliable Safety Features】: Incorporates a 3-hole power supply plug and solid GND connection for enhanced safety, backed by a stable voltage regulator for long-lasting performance.
BulletPoint3 : 【LED Display】Clear and easy-to-read high-brightness LED display shows test time, voltage, current and real-time display of breakdown current value and voltage value, ensuring an efficient and accurate testing process.
BulletPoint4 : 【Versatile Applications】Designed for versatile usage in various industries, including electrical testing, transformers, meters, motors, cables, and electronics –Complying with the national standard, it has become a necessary pressure resistance test tool for many manufacturers.
BulletPoint5 : 【Complete Testing Kit】1×Withstand Voltage Test Equipment; 1×High Voltage Test Bar; 1×Ground Line; 1×Power Cord; 1×Remote Control Test Bar
ExternallyAssignedProductIdentifier1 : 0840403779239
ExternallyAssignedProductIdentifier2 : 840403779239
IncludedComponents : Withstand Hi-Pot Tester*1

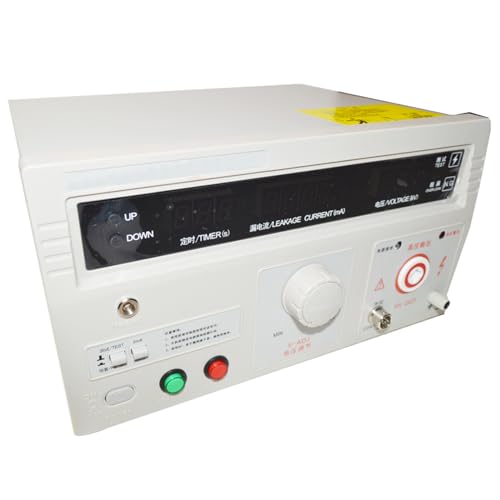

ItemName : WYDDDARY Withstand Hi-Pot Tester RK2670AM 110V 5KV AC Voltage Withstand Test Instruments 100VA Hi-Pot Insulation Resistance Testing Tool LED Digital Display Hipot Tester
ItemPackageDimensions_Height : 10.24 inches
ItemPackageDimensions_Length : 15.75 inches
ItemPackageDimensions_Width : 14.57 inches
ItemPackageQuantity : 1
ItemTypeKeyword : insulation-resistance-meters
Manufacturer : WYDDDARY
MeasurementAccuracy : 0.1mm
ModelName : Hyuduonivggyfqm0
ModelNumber : Hyuduonivggyfqm0
NumberOfItems : 1
PartNumber : CD142010
ProductDescription :

Paraments

Model: RK2670AM

Description: Klgital display with remote control

Test Voltage (AC): 0~5KV +/-5%

Leakage Current (AC): 0~2/20mA +/-5%

Timing (s): 0~99s; Manual control

Pmax: 100VA

Intput Voltage(Power): 110V

Weight: 40lbs

Pre-used Caution

Read the following items carefully before operating RK267 series voltage withstand test instrument

1. Use three-hole power supply plug and insure GND connection well.

2. GND port and power supply GND port should be connected well.

3. Wear insulation glove, stand on insulation mat.

4. Anti-clockwisely circumvolve "V-ADJ" rotary switch to the maximum before turn on test instrument.

5. Before preset all functions, reset instrument.

6. Don't connect test port and test wire when doing test.

7. Don't connect HV output port with shield box or GND wire to avoid instrument damage.

8. Turn off power when accident take place.

9. Examine and repair when Indicator or annunciator is out of function.

10. Operate carefully to avoid hazard when take the remote test.

11. The instrument must be placed on the worktable of conductive materials.

12. The operator can not wear clothes with metal decoration or wear metal accessories.

13. When the tester is in the test conditions, the test line, the test probes, output end, and the test objects are all with high pressure, do not touch!

ProductSiteLaunchDate : 2024-06-07T05:14:15.687Z
