Specification
Brand : YITRANIC
BulletPoint1 : Test voltage range: 1-1000V, Insulation resistance test range: 100KΩ-10TΩ.
BulletPoint2 : 24-bits, 4.3-inch and 4-wire touch LCD screen, resolution: 480*272.
BulletPoint3 : Contact detection function for capacitive components.
BulletPoint4 : Programmable sequence test mode. 20 setup files can be stored in the internal memory,support U-disk.
BulletPoint5 : 2 years warranty. Achieve remote control by RS232C and USB Device interface.
Color : White
IncludedComponents : Insulation Resistance Tester，power cord

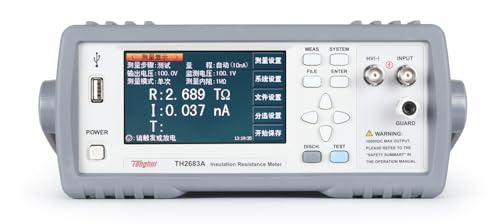

ItemName : TH2683A Insulation Resistance Tester Megohmmeter, Programmable 10kΩ - 10TΩ, 0-1000V High Resistance Meter
ItemPackageDimensions_Height : 28 centimeters
ItemPackageDimensions_Length : 35 centimeters
ItemPackageDimensions_Width : 30 centimeters
ItemTypeKeyword : insulation-resistance-meters
Manufacturer : YITRANIC
MeasurementAccuracy : ±2%
ModelName : ZIZEV6174egtyc2-11
ModelNumber : ZIZEV6174egtyc2-11
NumberOfItems : 1
PartNumber : TH2683A-Y
PowerSourceType : Corded Electric
ProductDescription : With touch, color LCD screen and unique insulation resistance/leakage current dual test function, TH2683A/TH2683B insulation resistance meter is an intelligent measurement instrument that is used for rapid measurements on insulating properties of electronic parts and components (especially the capacitance), dielectric material, equipments, wires, cables, etc.

TH2683A/TH2683B is provided with sorting output and external single pulse signal input interface, making it easy for pipeline operation. The quipped communication interface can achieve the off-site operations of all functions of the instrument through microcomputer. The instrument has a powerful anti-jamming capability, which makes the measurement more reliable.

Features:
■ Test voltage range: 1-1000V(TH2683A),1-500V(TH2683B)
■ Insulation resistance test range: 100KΩ-10TΩ
■ Insulation resistance, leakage current dual display
■ 24-bits, 4.3-inch and 4-wire touch LCD screen
■ LCD resolution: 480*272
■ Zero clearing function
■ Contact detection function for capacitive components
■ Fast test: 30ms
■ Programmable sequence test mode
■ 6 ranges, manual or auto range mode
■ 4-bin comparison function: 3 bins for PASS, 1 bin for FAIL
■ 20 setup files can be stored in the internal memory,support U-disk
■ Measurement data can be stored on U-disk
■ Automatically upgrade firmware by a disk
■ Selectable Chinese and English operation interfaces
■ Handler interface realizes on-line operation
■ Achieve remote control by RS232C and USB Device interface.
■ Footswitch trigger function.
ProductSiteLaunchDate : 2024-05-10T05:48:29.519Z
Size : US Plug
SpecificationMet : Th2683a Insulation Resistance Tester, Power Cord
Style : Resistance Tester
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
