Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : Megger
BulletPoint : VC6410 digital groundingResistanceMeter 200 Ω 0.001 Ω
BulletPoint1 : BM5200 5kV Insulation Tester Contractor
BulletPoint2 : 1 T Ω, 1.4 Ma, 5 kV digital insulation tester with digital and analogue display
BulletPoint3 : Five test ranges; 250 V, 500 V, 1000 V, 2500 V and 5000 V
BulletPoint4 : Insulation (InS), Polarisation Index (PI) and variable timed test (t) modes
BulletPoint5 : Selectable DC or AC (including frequency) voltmeter functions
Color : Multiple colors
ExternallyAssignedProductIdentifier : 5036175220634
ExternallyAssignedProductIdentifier1 : 0797447719267
ExternallyAssignedProductIdentifier2 : 797447719267
IncludedComponents : inc

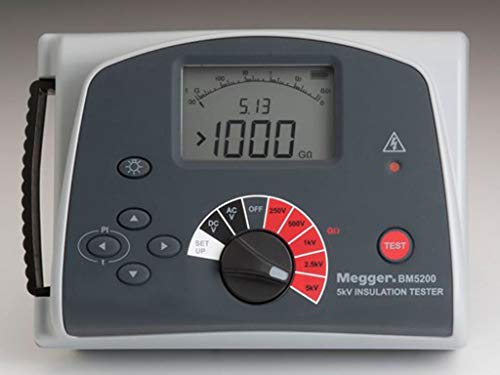

ItemName : Megger BM5200 Insulation Tester 5 kV
ItemPackageDimensions_Height : 7.95 inches
ItemPackageDimensions_Length : 11.3 inches
ItemPackageDimensions_Width : 7.95 inches
ItemPackageQuantity : 1
ItemTypeKeyword : insulation-resistance-meters
Manufacturer : MEGGER / STATES
Material : Material
MeasurementAccuracy : 1
MeasurementType : Multimeter
MinimumOperatingVoltage : 6 volts
ModelName : 1001-289
ModelNumber : ccdaef29f50e178999b8db643f82fc
NumberOfItems : 1
NumberOfLithiumMetalCells : 1
PartNumber : 1001-289
PowerSourceType : Corded Electric
ProductDescription : Megger BM5200 - 5 kV Insulation Tester New section Prevention of HAZARD from arc flash and short-circuits added Safety rated at CATIII 600V Applied test voltage measurement display Selectable DC or AC (including frequency) voltmeter functions Guard terminal to shunt surface leakage currentsThe Megger BM5200 tester is a battery powered instrument with digital and analogue arc display, designed for high voltage insulation resistance testing in the maintenance and servicing of cables, rotating plant machinery, transformers, switchgear and industrial installations.DC insulation tests are performed at 250 V, 500 V, 1000 V, 2500 V and 5000 V. Insulation resistance measuring range is 100 kO to 1000 GO. Automatic discharge for capacitive circuits under test is provided and decaying voltage displayed.The guard terminal can be used to minimise the effects of surface leakage and hence erroneous measurements when carrying out insulation resistance tests.Three insulation resistance (IR) test modes are provided, (InS, PI and t) and available in any IR test range. In IR mode (InS) tests are initiated by pressing and holding down the TEST button for two seconds and terminated by a second press of the TEST button. A Polarisation Index (PI) mode performs a ratio metric test that calculates the ratio of insulation resistance at ten minutes to insulation resistance at one minute. The IR test timer (t) mode facilitates a single ?xed time test based on the set time interval t.For capacitive test objects the instrument will automatically discharge through an internal resistor and indicate voltage across the terminals in the range 25 V to 600 V with higher voltages indicated by '>600 V'. This feature will give decaying voltage indication following the testing of reactive loads. When the voltage indicator disappears it is safe for the user to disconnect the test leads.The BM5200 is powered by eight 1.5 V IEC LR6 (AA) cells. Des
ProductSiteLaunchDate : 2014-09-18T17:03:17.360Z
Size : Small
Style : Protection
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 41113600
UpperTemperatureRating : 55 degrees_celsius
