Specification
BatteriesRequired : 1
Brand : Graigar
BulletPoint1 : Bargraph to display insulation resistance. Displays the value of external AC voltage along with flashing symbol.
BulletPoint2 : Auto null function to automatically subtract the test lead resistance before displaying the real continuity resistance value.
BulletPoint3 : Trac-Lok mode to conserve battery life on insulation and continuity tests. Live circuit warning beeper.
BulletPoint4 : Releasing the test button automatically discharges the charges stored in the circuit under test.Backlight function to view the test results in dimly lit areas.
BulletPoint5 : 200mA continuity measuring current to IEC 61557. Minimum 1mA current on insulation tests to IEC 61557.
ExternallyAssignedProductIdentifier1 : 0707457448675
ExternallyAssignedProductIdentifier2 : 707457448675
IncludedComponents : 7122B, 8923 × 2, Shoulder Bag, Instruction Manual
ItemName : Kyoritsu 3007A Digital Insulation Continuity Tester 250V/500V/1000V Insulation Resistance Meter KEW3007A 20MΩ/200MΩ/2000MΩ
ItemPackageDimensions_Height : 28 centimeters
ItemPackageDimensions_Length : 35 centimeters
ItemPackageDimensions_Width : 30 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : insulation-resistance-meters
Manufacturer : Graigar
MeasurementAccuracy : ±1.5%rdg±5dgt (20Ω)
ModelName : ViaGasaFamidox142gvz3ew-11
ModelNumber : KEW 3007A
NumberOfItems : 1
PartNumber : Kyoritsu 3007A
PowerSourceType : Battery Powered
ProductDescription :

Insulation Resistance

Test voltage:250V/500V/1000V

Measuring ranges:(Mid-scale value)20MΩ/200MΩ/2000MΩ

Output voltage on open circuit:Rated test voltage+20%, -0%

Nominal current:1mA DC min.

Output short circuit current:1.5 mA DC approx.

Accuracy:±1.5%rdg±5dgt (20MΩ/200MΩ)±10%rdg±3dgt (2000MΩ)

Continuity Test

Measuring ranges:(Mid-scale value)20Ω/200Ω/2000Ω

Output voltage on open circuit:7 - 12V DC

Measuring current:200mA DC min.

Accuracy:±1.5%rdg±5dgt (20Ω); ±1.5%rdg±3dgt (200Ω/2000Ω)

AC Voltage

AC voltage range:0-600V AC

Accuracy:±5%rdg±3dgt

General

Safety Standard:IEC 61010-1 CAT III 300V Pollution Degree 2; IEC 61010-2-031 IEC 61557-1/2/4

IP Rating:IEC 60529-IP54

EMC Standard:IEC 61326-1

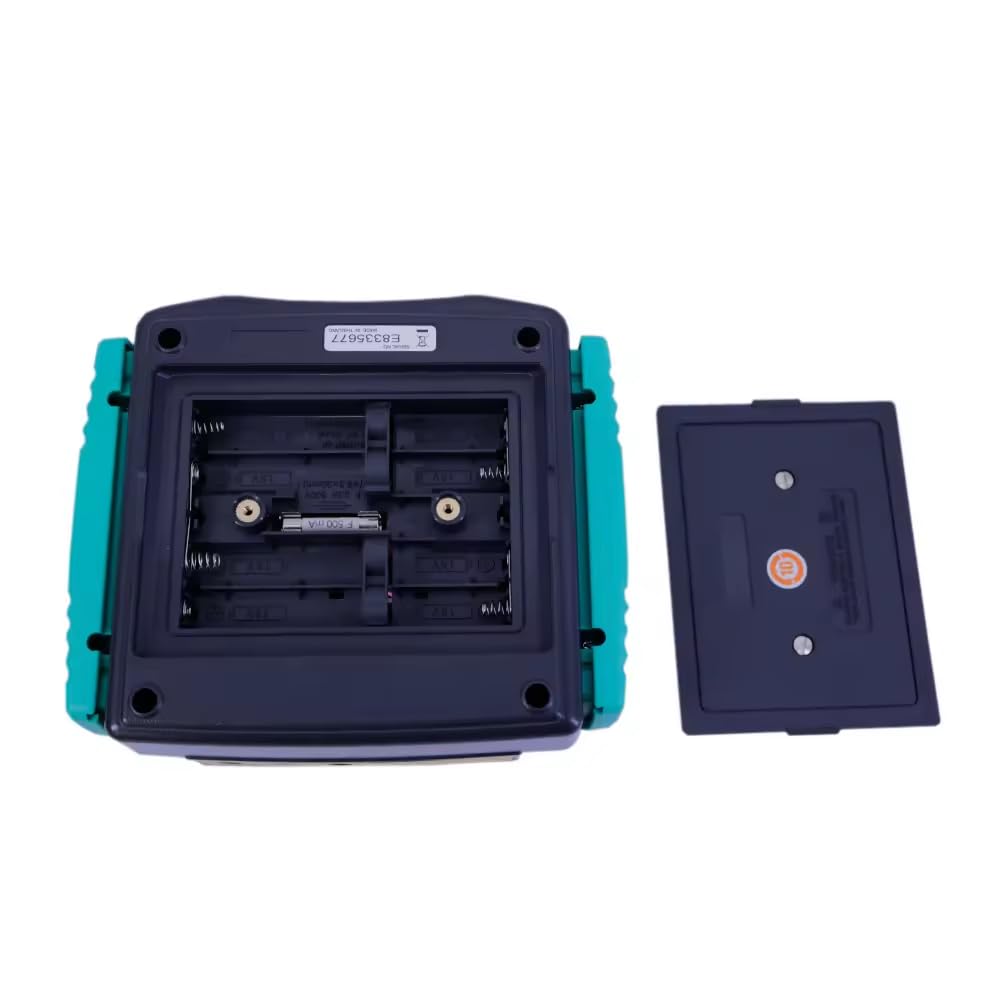

Power source:R6 (AA) (1.5V) × 8

Dimensions:167(L) × 185(W) × 89(D)mm

Weight:990g approx

Included Accessories:7122B (Test leads) Pouch for test leads,8923 (F500mA/600V fuse) × 2,Shoulder Strap,Instruction Manual

ProductSiteLaunchDate : 2024-05-07T07:33:06.456Z
Size : US Plug
Style : US Plug
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
