Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : Garosa
BulletPoint1 : [ACCURATE AND POWERFUL] - High accuracy megohm meter for AC and DC voltage, insulation resistance measurement.
BulletPoint10 : USB interface:With USB interface, software monitoring, storage data can be uploaded to the computer, save and print
BulletPoint2 : [PI MEASUREMENT AND AGING IDENTIFICATION] - Measure polarization index and identify aging problems in insulation of , cables, motors, etc.
BulletPoint3 : [WITH BACKLIGHT AND SUPPORT FRAME] - Backlit screen for dim environments and extendable support frame for convenient stand operation.
BulletPoint4 : [MULTI HIGH VOLTAGE OUTPUT] - Measure appliance's normalcy or short circuit by discharging with adjustable voltage.
BulletPoint5 : [AUTOMATIC COMPARISON] - Automatically calculate DAR absorption ratio and determine equipment's insulation resistance affected by humidity.
BulletPoint6 : Dgital insulation tester DC Voltage Range Resolution:0.1V
BulletPoint7 : Dgital insulation Resistance meter AC Voltage Range:0～750V
BulletPoint8 : high voltage digital insulation tester AC Voltage Range:0.1V
BulletPoint9 : Output short-circuit Current:≥5mA(5KV)
Color : Grey
IncludedComponents : No
ItemName : Digital Insulation Resistance Tester, Digital Megohmmeter High Accuracy Multimeter with Backlight, Insulation Resistance Tester for Ground, Ohmmeters
ItemPackageDimensions_Height : 9 centimeters
ItemPackageDimensions_Length : 34 centimeters
ItemPackageDimensions_Width : 27 centimeters
ItemTypeKeyword : insulation-resistance-meters
Manufacturer : Garosa
Material : VTSYIQI20240417152727VTSYIQI
MeasurementAccuracy : 0.1mm
ModelName : Garosavdh8zsrp4m
ModelNumber : Garosavdh8zsrp4m
NumberOfItems : 1
NumberOfLithiumIonCells : 1
PartNumber : Garosavdh8zsrp4m
PowerSourceType : Battery Powered
ProductDescription : Spec:

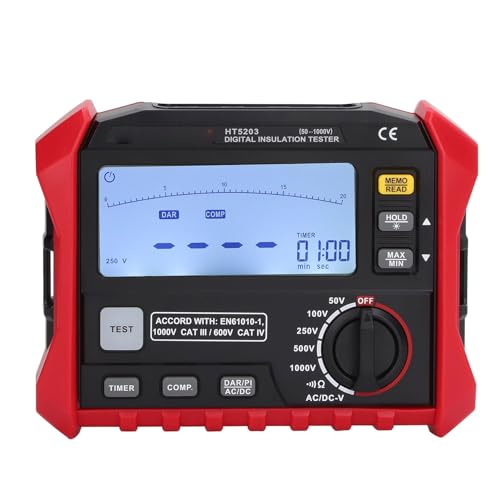

Item Type: Insulation Resistance Tester
Model: HT5203
Material: ABS, silicone
Battery: 8 x 1.5V AA battery(not include)
Basic Parameters:
DC Voltage Measurement:
Range: 1000V
Resolution: 1V
Accuracy: ±(1.0% reading and 5 words)
AC Voltage Measurement:
Range: 750V
Resolution: 1V
Accuracy: ±(1.0% reading and 5 words)
Frequency Range: 40~400Hz(sine )
Continuity Measurement:
Measuring Range: 200.0Ω
Resolution: 0.1Ω
Accuracy: ±(1.0% reading and 5 words)
Resistance: Insulation Resistance Measurement:
Test voltage Measuring range Resolution Accuracy
50V 0~20.00MΩ 0.01MΩ ±(3% reading and 5 words)
20.0~200.0MΩ 0.1MΩ
100V 0~20.00MΩ 0.01MΩ ±(3% reading and 5 words)
20.0~200.0MΩ 0.1MΩ
0.200~1.000GΩ 0.001GΩ
250V 0~20.00MΩ 0.01MΩ ±(3% reading and 5 words)
20.0~200.0MΩ 0.1MΩ
0.200~2.000GΩ 0.001GΩ
500V 0~20.00MΩ 0.01MΩ ±(3% reading and 5 words)
20.0~200.0MΩ 0.1MΩ
0.200~2.000GΩ 0.001GΩ
2.00~20.00GΩ 0.01GΩ
1000V 0~20.00MΩ 0.01MΩ ±(3% reading and 5 words)
20.0~200.0MΩ 0.1MΩ
0.200~2.000GΩ 0.001GΩ
2.00~20.00GΩ 0.01GΩ
20.0~100.0GΩ 0.1GΩ ±(5% reading and 5 words)


Package List:
1 x Tester2 x Tester Pen2 x Clip1 x User Manual1 x Storage Bag

How To Use:
Power on and use directly.


ProductSiteLaunchDate : 2024-04-18T03:55:02.925Z
Size : Large
Style : VTSYIQI20240417152727VTSYIQI
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
