Specification
Brand : CNYST
BulletPoint1 : Rated voltage: 100; 250; 500; 1000; 2500; 5000V (step voltage adjustment, can output a variety of test voltage)
BulletPoint2 : Resistance range: 0.01MΩ ~ 10TΩ, capacitance measurement: 10nF ~ 50uF, DC voltage: 0 ~ 1000V, AC voltage: 0 ~ 750V
BulletPoint3 : Resistance range: 0.01MΩ ~ 10TΩ, capacitance measurement: 10nF ~ 50uF, DC voltage: 0 ~ 1000V, AC voltage: 0 ~ 750V
BulletPoint4 : Backlight: Controllable gray screen backlight, suitable for use in dark places,Display Mode :4-digit large LCD display, gray screen backlighting
BulletPoint5 : Data storage :500 groups, data access function, alarm function
Color : black
IncludedComponents : see details
ItemName : CNYST 5kV High Voltage Insulation Resistance Tester Digital HV Insulation Tester with Max Output Voltage 5000V Resistance Limit Range 10TΩ Insulation Resistance Test Voltage Test Current Test
ItemPackageDimensions_Height : 25 centimeters
ItemPackageDimensions_Length : 45 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : insulation-resistance-meters
Manufacturer : CNYST
Material : plastic
MeasurementAccuracy : see details
ModelNumber : 2024022707
NumberOfItems : 1
PartNumber : 2024022707
PowerSourceType : Battery Powered
ProductDescription :

product description

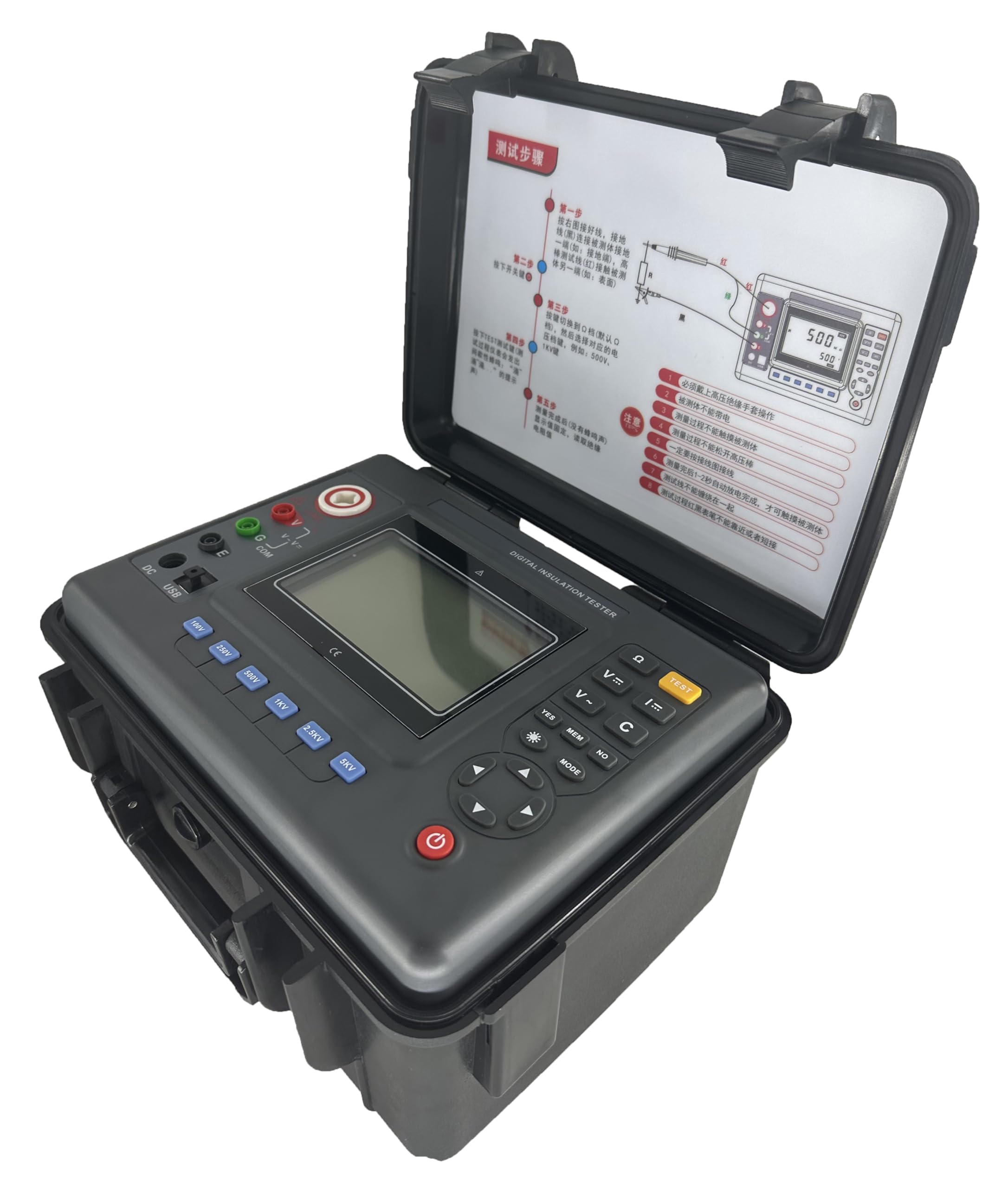

Digital insulation resistance tester, also known as megohmmeter and high-voltage insulation resistance meter, is used for testing insulation resistance. This instrument has large-screen LCD gray-white backlight display, data storage, data review, alarm, automatic discharge, charging, automatic shutdown and other functions. It also has the function of measuring DC voltage AC voltage absorption ratio and polarization index. The whole machine is beautiful and high-end, with wide measuring range, high resolution, convenient operation, easy to carry, accurate, reliable, stable performance, large output power and strong anti-interference ability.

The digital insulation resistance tester has a shockproof, dustproof and moisture-proof structure and is adaptable to harsh working environments. It is commonly used in telecommunications, electric power, meteorology, machine rooms, oil fields, mechanical and electrical installation and maintenance, and industrial enterprise departments that use electricity as industrial power or energy. An essential instrument. It is suitable for measuring the insulation resistance values of various insulating materials and transformers, motors, cables and electrical equipment.

Technical Parameters

Function: insulation resistance test, voltage test, current test, capacitance test

Base conditions: 23℃±5℃, below 75%rh

Rated applied voltage (V): 100V; 250V; 500V; 1000V; 2500V; 5000V, accuracy rated voltage × (1±10%)

Accuracy: ±3%rdg±5dgt

Resolution: 0.01MΩ

Insulation resistance range (GΩ): 0.01MΩ～10TΩ

DC voltage range: 0.1～1000V, accuracy: ±1.5%rdg±3dgt, resolution 0.1V

AC voltage range: 0.1～750V, accuracy: ±1.5%rdg±3dgt, resolution 0.1V

DC current measurement: 0.01nA～6mA, accuracy: ±5.0%rdg±5dgt, resolution 0.01nA

Capacitance measurement: 10nF～50uF, accuracy: ±10%rdg±5dg, (resolution 10nF)

Output short circuit current: ≥6mA

Absorption ratio and polarization index measurement: Yes

Power source: 12V rechargeable battery

Backlight: Controllable gray and white screen backlight, suitable for use in dim places

Display mode: 4-digit large LCD display, gray and white screen backlight

LCD display size: 108mm×65mm

Instrument size: 240mm (length) × 188mm (width) × 85mm (height)

USB interface: With USB interface, software monitoring, stored data can be uploaded to the computer, saved and printed

Communication line: 1 USB communication line

Test wire: high-voltage rod red 3 meters, high-voltage test wire black 1.5 meters, green wire 1.5 meters

Data storage: 500 groups, flashing "FULL" symbol indicates the storage is full

Data review: Data review function: “READ” symbol display

Overflow display: over-range overflow function: "OL" symbol display

Alarm function: Alarm prompt will be issued when the measured value exceeds the alarm set value

Power consumption:

Standby: 30mA Max (backlight off)

Turn on backlight: 42mA Max

Measurement: 200mA Max (backlight off)

Instrument mass: 2340g (including battery)

Battery voltage: The battery voltage is insufficient and a low battery symbol is displayed.

Automatic shutdown: The instrument will shut down after about 15 minutes of no operation.

Insulation resistance: ≥50MΩ (between measuring line and shell)

Withstand voltage: AC3kV/50Hz 1min

Working temperature and humidity: -10℃～+50℃＜85%RH

Storage temperature and humidity: -15℃～+55℃＜90%RH

Suitable for safety regulations: IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529 (IP54), pollution, etc. 2, CAT III 300V
