Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : VTSYIQI
BulletPoint1 : Function---Insulation resistance tester, voltage test, DC current test, capacitance test Basic condition:23℃±5℃，below 75%rh Rated voltage:500V、1000V、2500V、5000V、10KV、15KV Insulation resistance range:0.01MΩ～50TΩ resolution：0.01MΩ
BulletPoint10 : 6 voltage levels---Digital insulation resistance meter consists of medium and large scale integrated circuits. The output power of the watch is large, and the output voltage level is a lot (with 6 voltage levels). DC voltage measurement range is 0 ～ 1000V, AC voltage measurement range is 0 ～ 750V. DC current measurement range is 100pA-6mA. Capacitance measurement range is 10nF-50nF.
BulletPoint2 : Test Voltage---Test Voltage(V):rated voltage×（1±10%） DC Voltage Range:0～1000V Resolution: 0.1VAC Voltage Range:0～750V Resolution: 0.1V DC Current:0.1nA～6mA Resolution: 0.1nA
BulletPoint3 : Capacitance---Capacitance:10nF～50uFResolution: 10nF Output short-circuit Current:≥6mA@15KV Absorption Ratio and Polarization Index Measurement:Have Power Supply:12.6V rechargeable battery Backlight:Controllable gray screen backlight, suitable for use in dim places
BulletPoint4 : Dispaly---Dispaly mode:4-bit large LCD display, gray screen backlight LCD display size:108mm×65mm Instrument size:L/W/H：240mm×188mm×85mm USB interface:With USB interface, software monitoring, storage data can be uploaded to the computer, save and print
BulletPoint5 : USB Connect---Communication Line:USB communication line 1PC Test Line:High voltage rob red 3meter, high voltage test line black 1.5meter, green 1.5meter Data Storage:500 groups, "FULL" symbol indicates that storage is full Data Review:Data review function: "MR" symbol display
BulletPoint6 : Overflow Display---Exceed measurement range overflow function: “> ” symbol display Alarm Function:Alarm when the measured value larger or smaller than the alarm setting value Power Consumption:Standby: 30mA Max(backlight off), Turn on backlight: 42mA Max Measure:200mA Max(backlight off)
BulletPoint7 : Weight---Instrument weight:2750g(including battery) Battery voltage:When the battery voltage is low, low battery symbol “ ”will display Automatic shut-down:automatic shutdown after 15 minutes boot Insulation Resistance:≥50MΩ(between Measuring line and housing) Pressure Resistance:AC3kV/50Hz 1min
BulletPoint8 : Working environment--Working Temperature and Humidity:－10℃～+50℃＜85%RH Storage Temperature and Humidity:－15℃～+55℃＜90%RH Suitable for Safety Regulations:IEC61010-1、IEC1010-2-31、IEC61557-1,5、IEC60529(IP54)、pollution grade 2、CAT Ⅲ 300V
BulletPoint9 : Application---Digital insulation resistance meter also known as megohmmeter, high voltage insulation resistance tester, etc., for the insulation resistance test. The instrument has a large LCD screen gray backlight display, data storage, data access, alarm, automatic shutdown and other functions. At the same time, it also has the function of measuring DC voltage, AC voltage, absorption ratio and polarization index of DC voltage. The machine is beautiful and upscale, has a wide range, high resolution, convenient operation, easy to carry, accurate, reliable, stable performance, strong anti-interference ability.
Color : Grey
IncludedComponents : main host

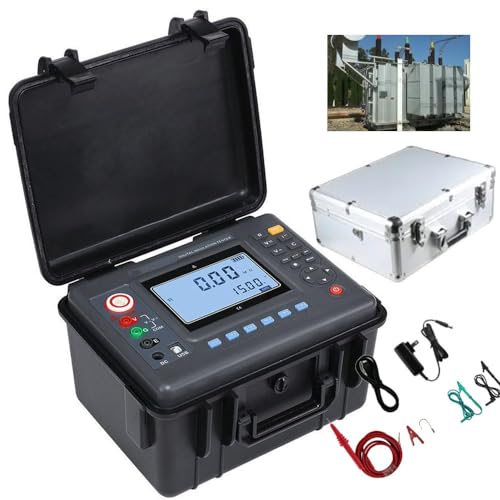

ItemName : 15 kV Insulation Tester Digital HV Insulation Tester Meter with Insulation Resistance 0.01MΩ to 50TΩ Resolution 0.01MΩ Voltage Range 0 to 750V Resolution 0.1V DC Current 0.1nA to 6mA Resolution 0.1nA
ItemPackageDimensions_Height : 25 centimeters
ItemPackageDimensions_Length : 45 centimeters
ItemPackageDimensions_Width : 20 centimeters
ItemTypeKeyword : insulation-resistance-meters
Manufacturer : VTSYIQI20240717164144VTSYIQI
Material : plastic
MeasurementAccuracy : 0.01MΩ
ModelNumber : VTSYIQI20240717164144VTSYIQI
NumberOfItems : 1
NumberOfLithiumIonCells : 3
PartNumber : VTSYIQI20240717164144VTSYIQI
PowerSourceType : Battery Powered
ProductDescription : VTSYIQI 15kv Insulation Resistance Meters Digital 50TΩ High Voltage Insulation Tester Meter Detector With Range 500V 1000V 2500V 5000V 10KV 15KV Resolution 0.01MΩ 4 Bit Large LCD Display
ProductSiteLaunchDate : 2017-03-27T07:00:00.000Z
Size : Large
Style : VTSYIQI20240717164144VTSYIQI
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
