Specification
Brand : Deeoee
BulletPoint : AD620 Microvolt MV Voltage Amplifier Signal Instrumentation Module Board 3-12VDC Arrival
BulletPoint1 : Reland Sun
BulletPoint2 : ATTINY13A-SSU
BulletPoint3 : 8-bit microcontroller
BulletPoint4 : ?CONVENIENT PROGRAM CONTROL?Single chip microcomputer high and low level can make it sound, better than a passive buzzer. An active internal buzzer with shock source, so long as a power will be called 2 program easy to control, SCM can allow a high and low sounds, while passive buzzer cannot.
BulletPoint5 : Note: Please pay attention to the voltage before ordering to make sure the power adapter can work successfully in your area.
Color : Active
ExternallyAssignedProductIdentifier : 4862440103347
ExternallyAssignedProductIdentifier1 : 0739227449803
ExternallyAssignedProductIdentifier2 : 739227449803

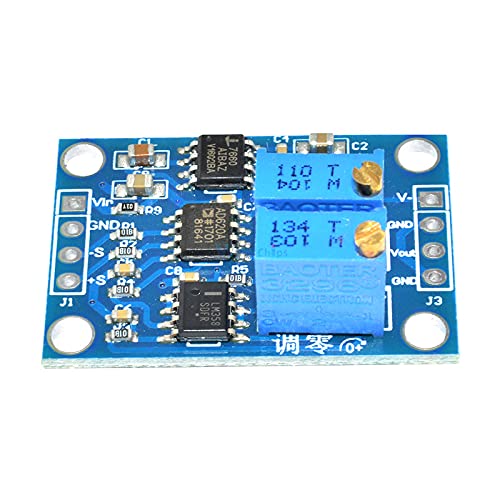

ItemName : AD620 Microvolt MV Voltage Amplifier Signal Instrumentation Module Board 3-12VDC Arrival
ItemTypeKeyword : instrumentation-amplifiers
Manufacturer : Deeoee
Material : Copper
NumberOfItems : 10
PartNumber : CXXMODULE-10992
ProductDescription :
Descriptions:
High Precision uV / mV Voltage Amplifier Small Signal Instrumentation Amplifier AD620 Transmitter
Using AD620 as the main amplifier, can amplify uV, mV voltage. Magnification 1.5-10000 magnification, adjustable. High precision, low offset, better linearity. Adjustable zero to improve accuracy. Can be used for AC, DC signal amplification. Module use, need to have a certain electronic basis, if no basis customers, please carefully purchase, shop to provide technical support.
Product Highlights:
1: wide supply voltage range, the AD620 amplification of this product can be amplified microvolts, millivolt, compared to LM358 amplification accuracy, better linearity, the maximum voltage output range of ± 10V.
2: magnification range, magnification up to 1000 ti2mes, only through a potentiometer can be adjusted.
3: adjustable zero through the zero potentiometer to adjust the zero, improve accuracy, there will be no zero drift phenomenon to meet customer needs.
4: a negative voltage output, the module uses 7660A chip output negative voltage (-Vin), can be provided to the customer to drive other dual power load.
5: mini type, the size of 32 * 22mm, evenly distributed around the four 3mm positioning holes, both sides of the port 2.54mm standard pitch pinhole.
Product parameters:
Input voltage: 3-12VDC. (Bulk purchase can be customized)
magnification: 1.5-1000 times adjustable, zero adjustable
Signal input voltage: 100uV - 300mV
Signal output range: ± (Vin-2V)
Negative voltage output: higher than -Vin. As the negative voltage chip output resistance problem, the actual output is higher than -Vin, the greater the load power, the greater the negative voltage drop.
Offset voltage: 50μV.
Input bias current: 1.0nA (max).
Common mode rejection ratio: 100 dB
Offset voltage drift: 0.6μV / ℃ (maximum).
Stability: 2μV / month maximum
Size: 32 * 22mm ProductSiteLaunchDate : 2021-06-26T18:41:11.981Z
Size : AC-013 Male
