Specification
Brand : Generic

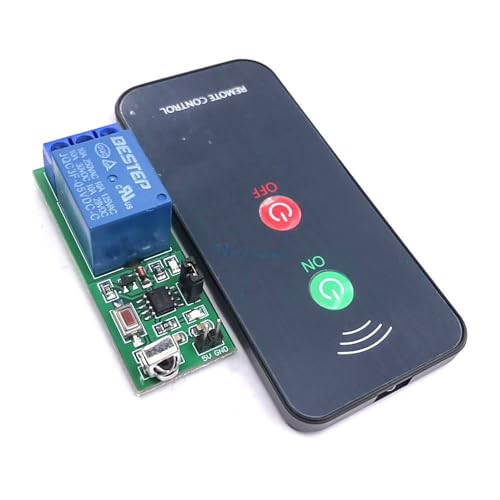

BulletPoint : 5V 10A 1 Channel Infrared Remote Control Relay Module Learning Infrared Remote Control Switch Relay Driver Board Module
CurrentRating : 10 amps
ExternallyAssignedProductIdentifier : 4861082264690
ItemName : Generic 5V 10A 1 Channel Infrared Remote Control Relay Module Learning Infrared Remote Control Switch Relay Driver Board Module
ItemPackageDimensions_Height : 7.8 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 3 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : infrared-emitters
Manufacturer : Generic
Material : Copper
MaximumSwitchingCurrent : 10 amps
MaximumSwitchingVoltage : 250 volts
NumberOfItems : 1
OperationMode : Automatic
PartNumber : YGQ_MODULE_10795
ProductDescription : |5V 10A 1 Channel Infrared Remote Control Relay Module Learning Infrared Remote Control Switch Relay Driver Board Module
Features:
1. The module adopts 10A relay, the um load of the interface: AC 250V/10A, DC 30V/10A
2. The working mode of the relay can be switched through the jumper cap
3. Learning infrared remote control switch, can let the single-chip microcomputer remember the key value data of a key of the remote control, and let it control the switch of the relay
4. Fix bolt holes for easy installation
5. The theoretical distance can reach about 8-12 meters, easy to use
The learning infrared remote control switch, as the name implies, allows the single-chip microcomputer to remember the key value data of a key of the remote control, and let it control the switch of the relay. By learning again, the stored key data can be modified. For example, you use the remote control this time. If you want to use the "8" key for learning, you can use "8" as the control button after success, and the data will not be lost after power down. If you want to use the button "9" as the control, you need to re-learn the microcontroller and make changes.
Module instructions:
1. Power on, the wiring is correct, the LED indicator is on, the module will work normally after 5 seconds, and the relay will work at the same time!
2. Long press the S1 button, the indicator light flashes, the module enters the learning mode, press any button on the remote control, the indicator light stops flashing and learning is complete
3. The working mode of the relay (self-locking or jog) can be switched through the jumper cap
4. The remote control has a built-in battery
Notes:
The power supply must be 5V, voltage higher than 5.5V will burn the microcontroller
The theoretical distance is about 8-12 meters, but the actual application depends on the surrounding environment factors and intermediate barriers (such as diaphr
ProductSiteLaunchDate : 2024-05-15T13:09:00.108Z
UnitCount : 2.1164
UnspscCode : 32000000
