Specification
Brand : Seamax
BulletPoint1 : Air270: Beam 5.0ft, Overall length 9ft, Inner dimensions 2.4x6ft, Pontoon diameter 17 inches, 3 pontoon chambers, 1 Airmat chamber, 1 keel chamber; Boat weight 90Lbs. Max loading 822Lbs with 3 Passenger, Boat Rated 10HP motor and with 15” Short shaft transom. 1x bench seat.
BulletPoint2 : Air320: Beam 5.0ft, Overall length 10.5ft, Inner dimensions 2.4x7.5ft, Pontoon diameter 17 inches; 3 pontoon chambers, 1 Airmat chamber and 1 keel chamber; Boat weight 100Lbs. Max loading 987Lbs with 4 Passenger, Boat Rated 15HP motor and with 15” Short shaft transom. 2x bench seat.
BulletPoint3 : Ultra light weight durable high pressure air floor with an extra EVA protective layer against wear and tear. Easy complete boat hull and floor Roll-UP design for fast deployment and compact storage.
BulletPoint4 : Marine grade laminated plywood transom. Long lasting hot welded air chamber seams. All around rub strake and under inflatable keel. Preinstalled stainless steel tow ring patches and heavy duty life line. Multiple easy to access carrying handles around the hull.
BulletPoint5 : Complete accessories pack: 2x aluminum oars, 1x foot pump, 1x field fast repair kit, 1x boat carrying bag, 2x plywood bench seat (Air320)
ExternallyAssignedProductIdentifier : 7701193002682
ExternallyAssignedProductIdentifier1 : 0721541239802
ExternallyAssignedProductIdentifier2 : 721541239802

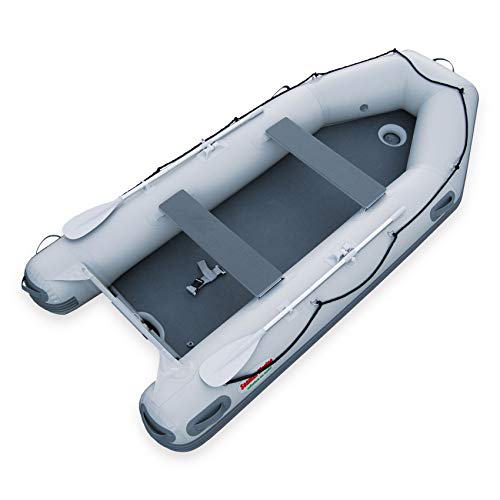

ItemName : Seamax Inflatable Boat Air Series from 9ft to 10.5ft, with Light Weight High Pressure Airmat (AIR320-10.5FT)
ItemPackageDimensions_Height : 17.1 inches
ItemPackageDimensions_Length : 36.2 inches
ItemPackageDimensions_Width : 19.5 inches
ItemPackageQuantity : 1
ItemTypeKeyword : open-water-inflatable-rafts
Manufacturer : Seamax Marine
Material1 : PVC
Material2 : Polyester
Material3 : Vinyl
PackageLevel : case
PartNumber : W25690270
Pattern : Solid
ProductDescription : Airmat Floor Technology

Airmat floor is made up of two layers of fabric held together by thousands of polyester cross-stitches; when inflated to high pressure this air cushion becomes as rigid as a traditional floor. Airmat floor is much lighter and takes up less space. Soft to touch the Airmat floor absorbs bumps and resists tears. Airmat chamber max pressure can support 10 PSI. We suggest using Seamax Electric Air Pump.

Boat Assemble

Inflatable Boat is not hard to assemble; it may take up to 1 hour at the first time. Before you pump the air chambers, please double check all valves and make sure they are at intake position. There is a push /or turn stick at the middle as the switch of the position. You also can use air valve tools to check all the air valves and make sure all screwed down enough.

Clear a flat surface that is clean and free of sharp objects. Place the boat in the ground flat surface to start. You can put cardboard underneath or do it at the carpet. The boat has a Plywood Support for Airmat floor at the rear. Please place the support in right position before start. The rear support helps the floor to be flat and getting proper V Hull when boating.

Pump the tube chamber until 40-60% full. Pumping air can help to open up the boat and you will be easier to place the Airmat floor in to right position, remember the plywood support must be face down.

You can keep pumping the tube chambers one by one until 80%, double check the Airmat floor position again. Try push the floor in all angle to make sure all good. Then pump the tube chamber until full pressure, and the Airmat chamber, finally is the V-hull chamber.

ProductSiteLaunchDate : 2018-10-16T21:40:58.231Z
Size : Large
Style : AIR320 - 10.5FT
UnitCount : 1
UnspscCode : 25111500
