Specification
Brand : Telemecanique Sensors
BulletPoint1 : Inductive Proximity Sensor
BulletPoint2 : Inductive Proximity Sensors detect metal targets only (in close proximity to the sensor)
BulletPoint3 : Non-contact detection
BulletPoint4 : Achieve precise and stable detection with the inductive sensors, which include advanced features like less than 10% lag distance and minimal temperature effect, ensuring high accuracy in metal detection
BulletPoint5 : Streamline your operations with the inductive proximity switches, which boast a quick installation design and a handy LED indicator, making it easier to monitor the sensor status in real-time during any project
Color : Black
ExternallyAssignedProductIdentifier : 7437237487480
ExternallyAssignedProductIdentifier1 : 785901911470
ExternallyAssignedProductIdentifier2 : 0785901911470
ExternallyAssignedProductIdentifier3 : 00785901911470
ExternallyAssignedProductIdentifier4 : 0785901528043
IncludedComponents : SQDXSAV12801

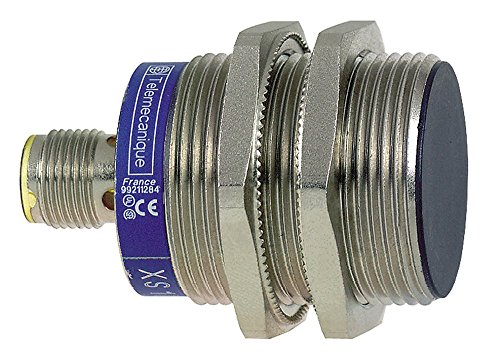

ItemName : Telemecanique Sensors XS1N30PA349D Inductive Sensor, 24 VDC, 200 mA, XS
ItemPackageDimensions_Height : 9.7 centimeters
ItemPackageDimensions_Length : 4.1 centimeters
ItemPackageDimensions_Width : 6.6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : inductive-proximity-sensors
Manufacturer : Telemecanique Sensors
Material : metal
Material1 : plastic
Material2 : metal
MaximumSupplyVoltage : 30 volts_of_direct_current
MeasuringRange : 4mm
ModelName : SQDXSAV12801
ModelNumber : XS1N30PA349D
MountingType : Flange Mount
NumberOfBoxes : 1
NumberOfItems : 1
OutputType : NPN
PartNumber : XS1N30PA349D
ProductDescription : After supplying power to the switch, the oscillator in the high-frequency oscillation circuit generates an alternating electromagnetic field on the detection surface of the switch. When a metal approaches the detection surface of the switch, the eddy currents inside the metal absorb the energy of the alternating electromagnetic field in the oscillator, causing it to weaken or stop oscillating. The two states of energy change in the oscillator are converted into a level signal by the detection circuit. The level signal is amplified by the amplification circuit and triggered by the trigger circuit to output the transistor circuit, generating a switching signal. So as to detect the presence of metals and achieve the purpose of detecting metals.
a. Basic parameters
1. Product model: LJ12A3-4-Z/BX
2. Working voltage: 6-36VDC
3. Detection distance: 0-4mm
4. Load current:<300mA
5. Output form: NPN three wire (non embedded)
6. Output status: Normally open (NO)
7. Output level: Low level (when metal is present)
8. Testing substances; Metal objects
9. Product material: Copper/PBT
10. External lead: 1.2 meters
11. Output indicator: LED (red)
12. Product dimensions: 12mm diameter, 40mm thread length, 60mm total length

b. Characteristic parameters
1. Hysteresis distance:<10% detection distance
2. Current consumption:<13mA
3. Protection functions: power reverse protection, surge protection, load short circuit protection
4. Operating environment: -30 ° C to+70 ° C/-30% to+95% RH
5. Insulation impedance:>50M Ω
6. Temperature influence: Temperature range -30 ° C to+65 ° C, within ± 15% detection distance. 7. Voltage influence: Within ± 15% of rated power supply voltage range, switch detection distance influence ± 10%; When the power supply voltage exceeds the rated voltage by 15%, it will cause damage to the power supply when turned on
8. Design structure: IP67 (IEC specification)
ProductSiteLaunchDate : 2013-05-07T15:14:02.165Z
SensingDistance : 4 millimeters
SpecificUsesForProduct : Automatic control industry, machine industry, light industry, limiting station, orientation taking count, speeding trial
StreetDate : 2017-03-12T00:00:01Z
Style : Modern
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
