Specification
Brand : Heschen
BulletPoint1 : Mounting Hole Diameter: 5mm; Cable length: 200cm/78"
BulletPoint2 : Detecting Distance: 1mm±10%; Set distance: 0-0.7mm
BulletPoint3 : Output Type: Normally Open, Shield Type
BulletPoint4 : Current Output: 100mA; Working Voltage: 10-30 VDC
BulletPoint5 : Detect Object: Magnetic Metal
CircuitType : 1-way
Color : Grey
ConnectivityProtocol : X-10
ControlMethod : application
CurrentRating : 100 milliamps
ExternallyAssignedProductIdentifier : 4536854502934
ExternallyAssignedProductIdentifier1 : 670534179550
ExternallyAssignedProductIdentifier2 : 0670534179550

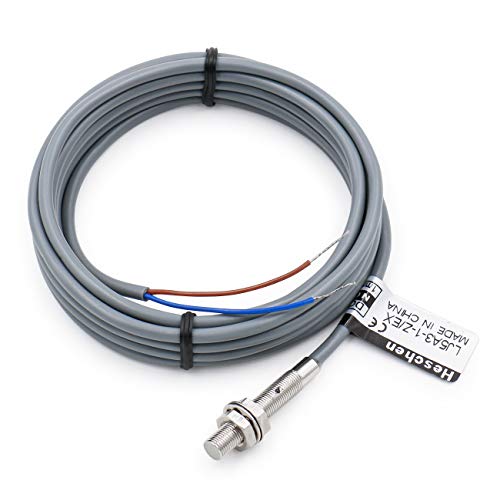

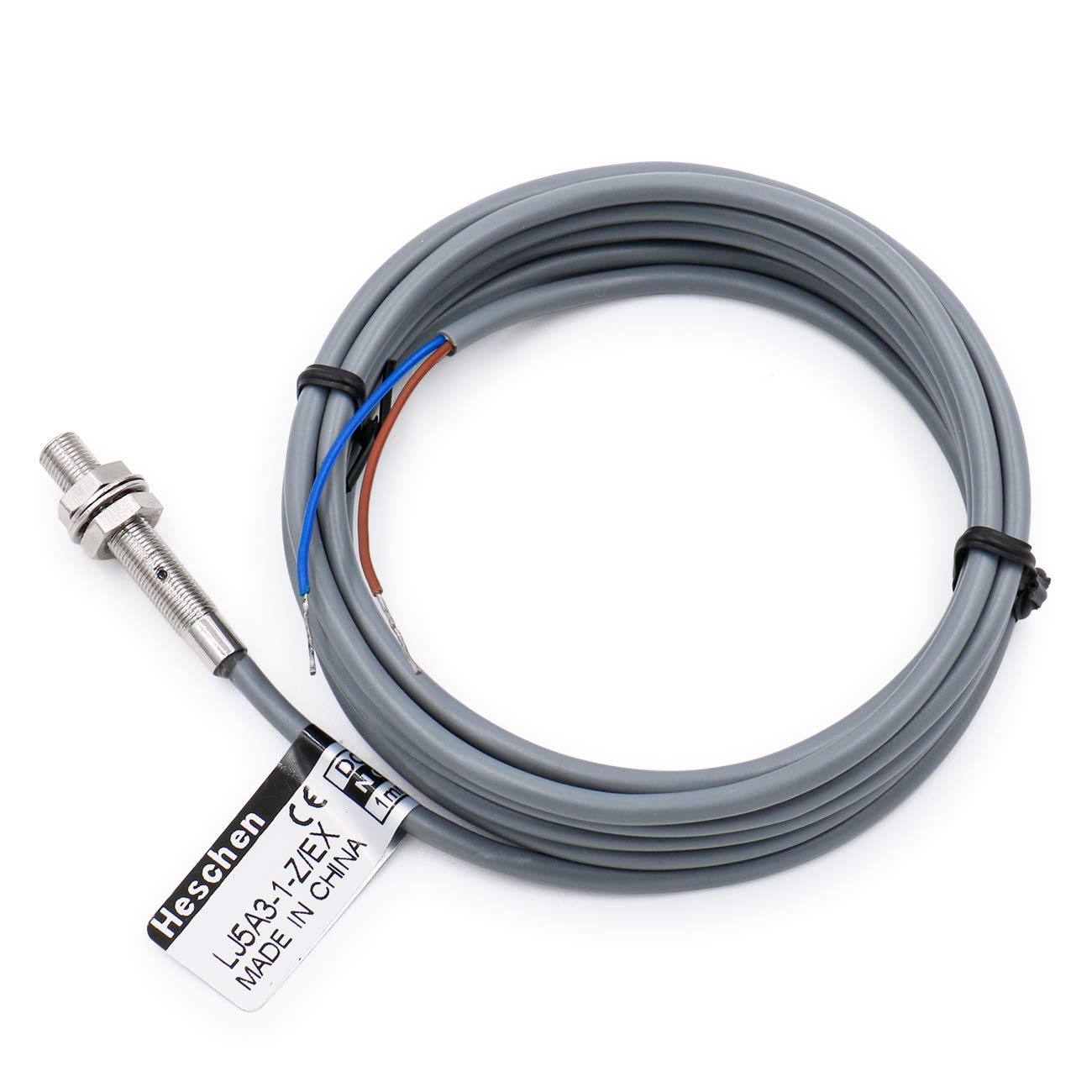

ItemName : Heschen M5 Inductive Proximity Sensor Switch Shield Type LJ5A3-1-Z/EX Detector 1mm 10-30VDC 100mA Normally Open(NO) 2 Wire
ItemPackageDimensions_Height : 11.7 centimeters
ItemPackageDimensions_Length : 1.3 centimeters
ItemPackageDimensions_Width : 7.9 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : inductive-proximity-sensors
Manufacturer : Heschen Electric
Material : Shell : Nickel plated brass , Detection surface : ABS
ModelNumber : HS-LJ5A3-1-Z/EX
MountingType : Through Hole Mount
NumberOfItems : 1
NumberOfPositions : 1
OperatingVoltage : 30 volts
OperationMode : automatic
PartNumber : LJ5A3-1-Z/EX
ProductDescription :

Detection Object: Magnetic metal(the detection distance decreases when it is non-magnetic metal).

Delay Distance: 10% below of the detection distance.

Supply Voltage: DC10-30V Impulse (p-p)10% below.

Comsuption Current: 0.8mA below.

Control Output: 100mA below.

Loop Protection: Reversal connection protection,surge absorption,load short-circuit protection.

Ambient Temperature & Humidity: During operation , storage: individually-30～＋65℃(no freeze ,no drew ), During operation,storage: individually 35-95%RH.

Insulation Impedance: 50MΩ above ( DC500 megameter ) between charging part and shell.

Withstand Voltage: AC1000V 50/60Hz 1 min. between charging part and shell.

Temperature Influence: Temperature range-30～＋65℃, at + 23℃, ± 15% detection distance, Temperature range-25～＋60℃, at +23℃, ±10% detection distance.

Voltage influence: Inside ±15% rated supply voltage range,at rated supply voltage value, inside ± 10 % detection distance.

ProductSiteLaunchDate : 2019-05-27T04:58:44.909Z
SupplierDeclaredDgHzRegulation : not_applicable
SwitchType : Temperature Switch
TerminalType : Screw
UnitCount : 1
UnspscCode : 39122200
