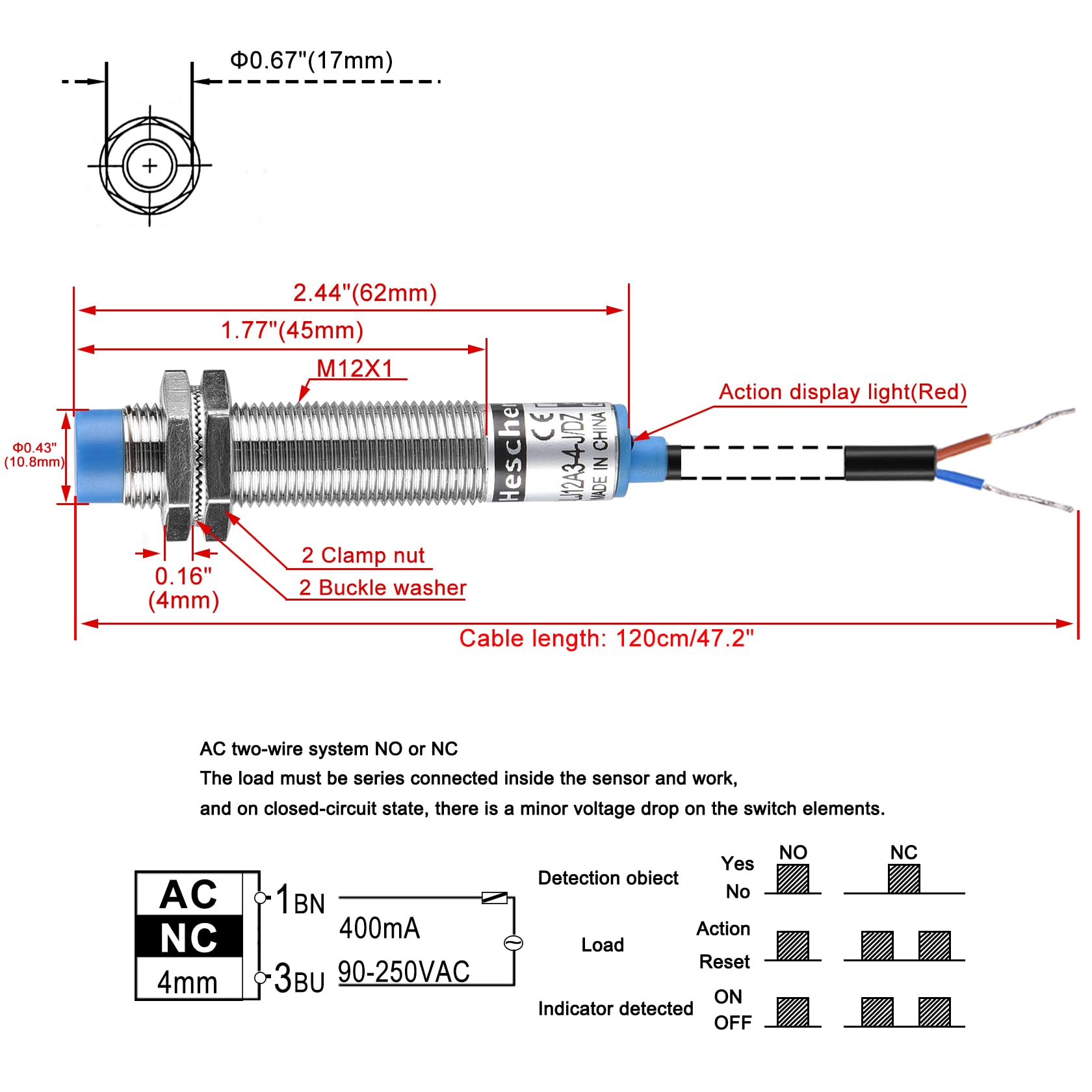

Heschen M12 Inductive Proximity Sensor Switch, Non-Shield Type, LJ12A3-4-J/DZ, Detector 4mm, 90-250VAC 400mA, Normally Closed(NC), 2 Wire

Customer rating 4.5 stars

Imported from USA | Ships in 10 working days

5% additional discount on UPI | Cash On Delivery available

1

₹4000 -40% ₹2400/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart.
EMI and GST Invoice available.

Product Information


Specification
AgeRangeDescription : Baby
Brand : Heschen
BulletPoint1 : Mounting Hole Diameter: 12mm
BulletPoint2 : Detecting Distance: 4mm±10%; Set distance: 0-3.6mm
BulletPoint3 : Output Type: NC(Normally Closed); Non-Shield Type
BulletPoint4 : Current Output: 400mA; Working Voltage: 90-250 VAC
BulletPoint5 : Detect Object: Magnetic Metal
CircuitType : 1-way
Color : Blue
CompatibleDevices : Security System, Lighting Control, Smart Home Hub
ConnectivityProtocol : Bluetooth
ConnectorType : 2 Pin
ControlMethod : touch
CpsiaCautionaryStatement : no_warning_applicable
CurrentRating : 200 milliamps
EducationalObjective : HIGH
ExternallyAssignedProductIdentifier1 : 670534170830
ExternallyAssignedProductIdentifier2 : 0670534170830
ExternallyAssignedProductIdentifier3 : 00610256049267
IncludedComponents : 1 x Magnetic Reed Switch
InternationalProtectionRating : IP54
ItemName : Heschen M12 Inductive Proximity Sensor Switch, Non-Shield Type, LJ12A3-4-J/DZ, Detector 4mm, 90-250VAC 400mA, Normally Closed(NC), 2 Wire
ItemPackageDimensions_Height : 8.5 centimeters
ItemPackageDimensions_Length : 2.5 centimeters
ItemPackageDimensions_Width : 7.5 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : inductive-proximity-sensors
Manufacturer : Heschen Electric
Material : Shell : Nickel plated brass , Detection surface : ABS
ModelName : E3F-DS30P1 Diffuse Reflection Infrared Obstacle Avoidance Sensor
ModelNumber : HS-LJ12A3-4-J/DZ
MountingType : Pole Mount
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfPositions : 3
OperatingTemperature : 65 degrees_celsius
OperatingVoltage : 30 volts
OperationMode : ON-OFF
OutputType : NPN
PartNumber : LJ12A3-4-J/DZ
PowerSourceType : Corded Electric
ProductDescription :
  • Detection Object: Magnetic metal(the detection distance decreases when it is non-magnetic metal).
  • Delay Distance: 10% below of the detection distance.
  • Supply Voltage:AC90-250V 50/60Hz.
  • Comsuption Current: 1.7mA below.
  • Control Output:400mA below.
  • Loop Protection: Surge absorption.
  • Ambient Temperature & Humidity:During operation, storage: individually-30~+65℃(no freeze ,no drew ), During operation,storage:individually 35-95%RH.
  • Insulation Impedance: 50MΩ above ( DC500 megameter ) between charging part and shell.
  • Withstand Voltage: AC1000V 50/60Hz 1 min. between charging part and shell.
  • Temperature Influence: Temperature range-30~+65℃,at + 23℃,± 15% detection distance, Temperature range-25~+60℃,at +23℃,±10% detection distance.
  • Voltage influence: Inside ±15% rated supply voltage range,at rated supply voltage value ,inside ± 10 % detection distance.

  • ProductSiteLaunchDate : 2020-06-05T07:36:25.268Z
    Size : NPN NO 8mm
    SpecificationMet : CE
    Style : E3F-DS30P1
    SupplierDeclaredDgHzRegulation : not_applicable
    SwitchType : Inductive
    TargetAudienceKeyword : Adults
    TargetGender : unisex
    TerminalType : Screw
    UnitCount : 1
    UnspscCode : 46171600
    UpperTemperatureRating : 60 degrees_celsius
    Voltage : 30 volts
    Wattage : 6 watts
