Specification
Brand : Generic
BulletPoint : PMSA003 Laser PM2.5 DUST SENSOR A003 High-precision laser Dust Concentration Sensor Digital Dust Particles A003 With Cable

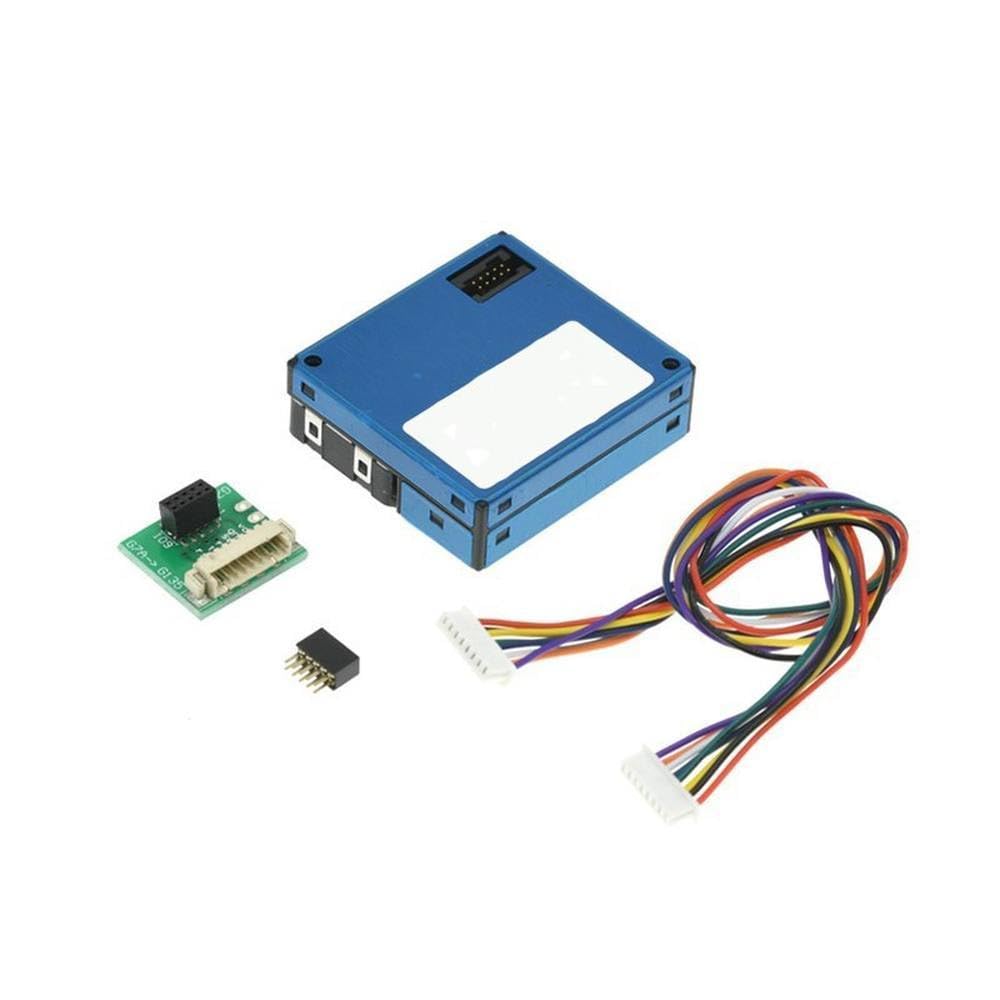

ItemName : PMSA003 Laser PM2.5 DUST Sensor A003 High-Precision Laser Dust Concentration Sensor Digital Dust Particles A003 with Cable
ItemTypeKeyword : indoor-air-quality-meters
Manufacturer : Generic
PartNumber : Lile_HFN_2132
ProductDescription : PMSA003 is based on the principle of laser scattering digital universal particle concentration sensor, can be continuously collected and calculated per unit volume of air in different particle size of the number of suspended particles, that is, particle concentration distribution, and then converted into a mass concentration, Digital interface output. The sensor can be embedded in a variety of suspended particles in the air associated with the concentration of instrumentation or environmental improvement equipment, to provide timely and accurate concentration data.

PIN1
VCC
Power supply positive (+ 5V)
PIN2
VCC
Power supply positive (+ 5V)
PIN3
GND
Negative power supply
PIN4
GND
Negative power supply
PIN5
RESET
Module Reset Signal / TTL Level @ 3.3V> Low Reset
PIN6
NC

PIN7
RX
Serial Receive Pin / TTL Level @ 3,3V
PIN8
NC

PIN9
TX
Serial port pin / TTL level @ 3,3V
PIN10
SET
Set pin / TTL level @ 3,3V, high or floating for normal operation> low level for hibernation
ProductSiteLaunchDate : 2023-11-30T05:22:18.231Z
UnitCount : 1
