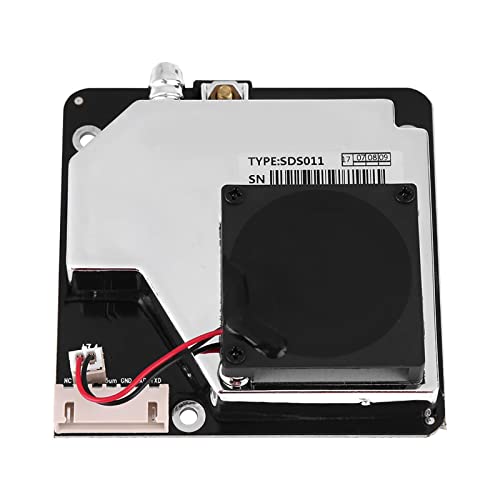

Specification Brand : Hyuduo BulletPoint1 : [Quick response]: Updates data frequency at 1Hz for real-time information BulletPoint2 : [Convenient and compact]: User-friendly design with small volume for convenient use BulletPoint3 : [Accurate and reliable monitoring]: Utilizes detection technology for precise and consistent results BulletPoint4 : [High resolution]: Resolves particle concentration as low as 0.3ug/m3 BulletPoint5 : [Easy integration]: Features serial output and built-in fan for easy installation Hazmat1 : LITHIUM ION BATTERIES CONTAINED IN EQUIPMENT Hazmat10 : CN_SmallLithiumIonBatteryInEquipment Hazmat11 : DE_SmallLithiumIonBatteryInEquipment Hazmat12 : EG_SmallLithiumIonBatteryInEquipment Hazmat13 : ES_SmallLithiumIonBatteryInEquipment Hazmat14 : FR_SmallLithiumIonBatteryInEquipment Hazmat15 : GB_SmallLithiumIonBatteryInEquipment Hazmat16 : IN_SmallLithiumIonBatteryInEquipment Hazmat17 : IT_SmallLithiumIonBatteryInEquipment Hazmat18 : JP_SmallLithiumIonBatteryInEquipment Hazmat19 : MX_SmallLithiumIonBatteryInEquipment Hazmat2 : UN3481 Hazmat20 : NL_SmallLithiumIonBatteryInEquipment Hazmat21 : PL_SmallLithiumIonBatteryInEquipment Hazmat22 : SA_SmallLithiumIonBatteryInEquipment Hazmat23 : SE_SmallLithiumIonBatteryInEquipment Hazmat24 : SG_SmallLithiumIonBatteryInEquipment Hazmat25 : TR_SmallLithiumIonBatteryInEquipment Hazmat26 : US_SmallLithiumIonBatteryInEquipment Hazmat27 : ZA_SmallLithiumIonBatteryInEquipment Hazmat3 : II Hazmat4 : 9 Hazmat5 : AE_SmallLithiumIonBatteryInEquipment Hazmat6 : AU_SmallLithiumIonBatteryInEquipment Hazmat7 : BE_SmallLithiumIonBatteryInEquipment Hazmat8 : BR_SmallLithiumIonBatteryInEquipment Hazmat9 : CA_SmallLithiumIonBatteryInEquipment IncludedComponents : No ItemName : High Precision Air Particle Concentration Dust Detection Sensor SDS011 with Accurate and Reliable Quick Response Easy Integration High Resolution Convenient use ItemPackageDimensions_Height : 3 centimeters ItemPackageDimensions_Length : 14 centimeters ItemPackageDimensions_Width : 9 centimeters ItemPackageQuantity : 1 ItemTypeKeyword : indoor-air-quality-meters Manufacturer : Hyuduo Material : Plastic MeasurementAccuracy : 0.1mm ModelName : Hyuduodm90nhwgia ModelNumber : Hyuduodm90nhwgia MountingType : Flange Mount NumberOfItems : 1 PartNumber : Hyuduodm90nhwgia ProductDescription : Specification: Features: Accurate and Reliable: detection, stable, good consistency. Quick response: data update frequency 1Hz. Easy integration: serial output, built-in fan. High resolution: resolution of 0.3ug/m3. Convenient use, easy installation, and small volume. Specifications: Material: Plastic Condition: 100% brand new and Weight: 60g
Interface specification: Pin Name Note 1 NC Empty 2 1um PM2.5: 0- PWM Output 3 5V 5V power input 4 2.5μm PM10: 0- PWM Output 5 GND GND 6 R Serial port receiver RX, TTL level @ 3.3V 7 T Serial port TX, TTL level @ 3.3V Note: The pitch of Interface is 2.54mm Communication protocol: Serial communication protocol: 9600 8N1. (Rate of 9600, data bits 8, parity none, stop bits 1) Serial report communication cycle: 1+0.5 seconds Data frame (10 bytes): message header + order+ data(6 bytes) + checksum + message trailer The number of bytes Name Content 0 message header AA 1 order C0 2 data 1 PM2.5 low byte 3 data 2 PM2.5 high byte 4 data 3 PM10 low byte 5 data 4 PM10 high byte 6 data 5 ID byte 1 7 data 6 ID byte 2 8 checksum checksum 9 message trailer AB Checksum: data 1 + data 2 + ...+ data 6 PM2.5 data content: PM2.5 (um/m3) = ((PM2.5 high byte*256 ) + PM2.5 low byte)/10 PM10 data content: PM10 (um/m3) = ((PM10 high byte*256 ) + PM10 low byte)/10 The low byte and high byte of SN are the last four of the bar code on the sensor. PWM output: Output range: PM2.5: 0-μg/m3, PM10: 0-μg/m3 Cycle: 1004ms +1% High level output in start cycle: 2ms Middle cycle: 1000ms +1% Low level output in end cycle: 2ms
