Specification
Brand : BELEKS
BulletPoint1 : 【Practical and Reusable】Wire connectors is a reusable and convenient wire connector. If you need to change other wires or do a temporary electrical testing, just flip the little lever up and pull out the wire what you need and replace, No twisting & no tape at all .
BulletPoint2 : 【Safer and Reliable】 Wire electrical connectors are safer than traditional wire connectors. 1.The housing is made of polycarbonate and polyamide66, which is flame retardant and high temperature resistant. Reduce potential safety hazards 2. The copper tin plated has strong corrosion resistance, maintaining good conductivity.3.The built-in stainless steel clip spring is used to ensure the wire connection is secure and not easy to fall off.
BulletPoint3 : 【Easy and Fast】Pull the lever up, insert a conductor and push the lever back down, visually inspect for proper strip length and complete wire insertion through its transparent housing–done! As tool-free, lever-actuated connectors,BELEKS P04 Series Splicing Connectors easily, quickly and safely connect solid, stranded and fine-stranded conductors ranging from 24–12 AWG.
BulletPoint4 : 【Universal Compatibility】Wire connectors kit can connect any combination of solid, stranded, and flexible copper wires(0.2~4mm²/AWG24-12). It is commonly used in motor, electrical control, power supply, home applianc, such as sockets, switches, lamps, electrical boxes, chandeliers, cars, loudspeakers, fan controls etc.
BulletPoint5 : 【Full of Fun】This BELEKS kit is an absolute delight for establishing firm and secure connections. exercise caution: the lever-nuts possess considerable grip strength and can pinch if not handled with care.
Color : Green
ConnectorType : Crimp
CurrentRating : 32 amps
CurrentRating1 : 5 amps
CurrentRating2 : 10 amps
ExternallyAssignedProductIdentifier : 4050821267706
ExternallyAssignedProductIdentifier1 : 797505209532
ExternallyAssignedProductIdentifier2 : 0797505209532
ExternallyAssignedProductIdentifier3 : 00783087093256
IncludedComponents : Connectors

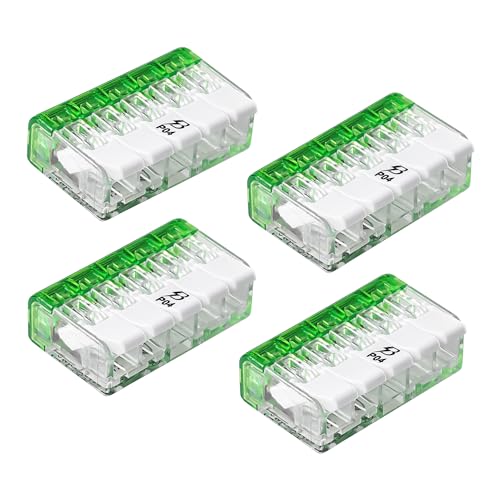

ItemName : BELEKS 5 Conductor Splicing Wire Connector with Levers, AWG 12-24 Transparent Body, 5 Port Electrical Lever Nuts - Pack of 25
ItemPackageDimensions_Height : 8.509 centimeters
ItemPackageDimensions_Length : 5.4102 centimeters
ItemPackageDimensions_Width : 6.1976 centimeters
ItemPackageQuantity : 3
ItemTypeKeyword : idc-electrical-terminals
LowerTemperatureRating : -49 degrees_fahrenheit
Manufacturer : BELEKS
Material : Metal
Material1 : Polycarbonate (PC)
Material2 : Copper
Material3 : Alloy Steel
MaximumVoltage : 600 volts
MeasurementSystem1 : Imperial
MeasurementSystem2 : Metric
ModelNumber : P04-5P-25
MountingType : DIN Rail Mount
NumberOfContacts : 5
NumberOfItems : 25
NumberOfLevels : 1
NumberOfPoles : 5
NumberOfPositions : 5
OperatingVoltage : 600 volts
PackageLevel : unit
PartNumber : AT-QMS-D2-1-4PCS-BS(5/32)
ProductDescription :

BELEKS Lever Wire Connectors kit P04 Series

With lever and adapter;  item number:P04;

available as 2, 3 and 5-conductor terminals;comfortable conductor connection from 0.2 to 4 mm²;

 installation of solid wire, Twisted wire and flexible cord.;

quick installation of devices with higher power requirements;

safe laying of long cables with larger conductor cross sections;

  mounting adapter for standards-compliant installation;

     individual fixations possible;

Safety note :

1 in grounded networks;

     rated data according to IEC/EN: rated data according to EN ;  rated voltage (II/2): 450V; rated current: 32A;

rated data according to UL: approval data according to UL; rated voltage UL: 600V;   ]

2 Actuation type:

Lever;Connectable conductor materials:polycarbonate;

3 Fine-stranded conductor:

0.2- 4 mm² / 24-12 AWG;

4 Colour:

Transparent;Insulated.

Material main shell shell shell material: Polycarbonate (PC);

   flammability class according to UL 94: V2;

   colour of actuator:green;

ProductSiteLaunchDate : 2023-12-06T06:41:01.905Z
Size : 25PCS
SpecificationMet : UL
Style : Wire Range 2-14AWG,1 Port,5/32" Allen Hex
SupplierDeclaredDgHzRegulation : not_applicable
TemperatureRange : 9E+1 degrees_celsius
TemperatureRating : -49-194℉
TerminalType : Ring Terminal
UnitCount : 1
UpperTemperatureRating : 90 degrees_celsius
Voltage : 600 volts
