Specification
Brand : DISIROU
BulletPoint1 : Crimping range: 4-70mm² (12AWG~2/0AWG)
BulletPoint2 : Crimping force: 45KN
BulletPoint3 : Stroke: 14mm
BulletPoint4 : Crimping type: Hexagon type
BulletPoint5 : Length: Approx.275mm
Color : Purple
ExternallyAssignedProductIdentifier : 7435467086510
FinishType : Painted

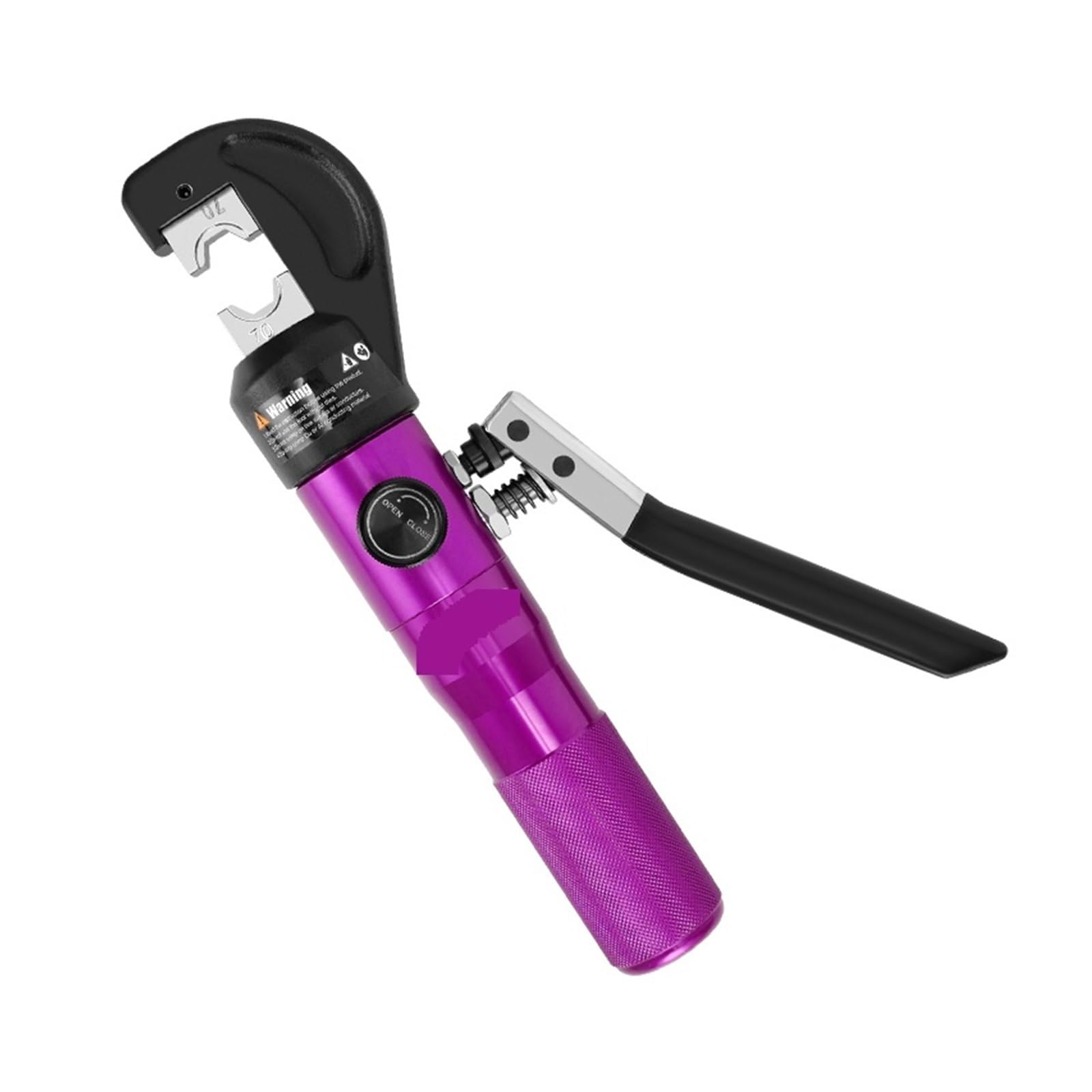

ItemName : Hydraulic Crimping Tool Crimping Plier Range 4-70MM2 Force 45KN Crimping Copper and Aluminum Terminals Hydraulic Tool(Purple)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemShape : Square
ItemTypeKeyword : hydraulic-cranes
Manufacturer : DISIROU
Material : Steel
ModelName : 1005005533001154
ModelNumber : GLLEPBBAA-755FA73CABB944F322C8938680B
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : GLLEPBBAA-755FA73CABB944F322C8938680B
PowerSourceType : ac
ProductDescription : CHANHYD HYDRAULIC CRIMPER FOR COPPER ALUMINUM TERMINAL
Complete Die Set Assembly (9pcs)
#4~12AWG(1/16" stainless steel cable)
#6~10AWG(3/32" stainless steel cable)
#8~(1/8" stainless steel cable)
#10~8AWG(5/32" stainless steel cable)
#16~6AWG
#25~4AWG(3/16" stainless steel cable)
#35~2AWG(1/4" stainless steel cable)
#50~1/0AWG
#70~2/0AWG
CHANHYD HYDRAULIC CRIMPING TOOLS KIT
Crimping range: 4-70mm² (12AWG~2/0AWG)
Crimping force: 45KN
Stroke: 14mm
Crimping type: Hexagon type
Length: Approx.275mm
Weight: Approx.3.3kg
Package: Plastic case
Crimping die: 4, 6, 8, 10, 16, 25, 35, 50, 70mm²(12,10,8,6,4,2,1/0,2/0AWG and 1/8 " "for stainless steel wire rope)
Including: Crimping tool x1/Cable cutter x1/Crimping dies x9/Sealing ring x4/Hexagon wrench x1/Plastic case x1/Instruction x1
It can crimp not only copper aluminum cable but also stainless steel wire rope.
Quick and Easy to Use Crimper Step by Step
1. Loosen the upper screw
Loosen the screw to easily replace the upper die.
2. Loosen the lower screw
Jack up the lower die base to remove the lower screw and replace the die.
3. Insert dies
Select the pressing die to match the crimping terminal and tight the dies with the crimper.
4. Turn valve to work
Turn the hydraulic valve to the "CLOSE" position.
5. Put in the terminal
Put the connecting terminal into the tool head.
6. Press the handle
Press the handle up and down. Continue pumping until handle comes to a stop.
7. Release the handle
Turn the hydraulic valve to the "OPEN" position and the piston is automatically reset.
8. Complete crimping
The crimping effect is good and tight.
Application of Hydraulic Crimping Tool
