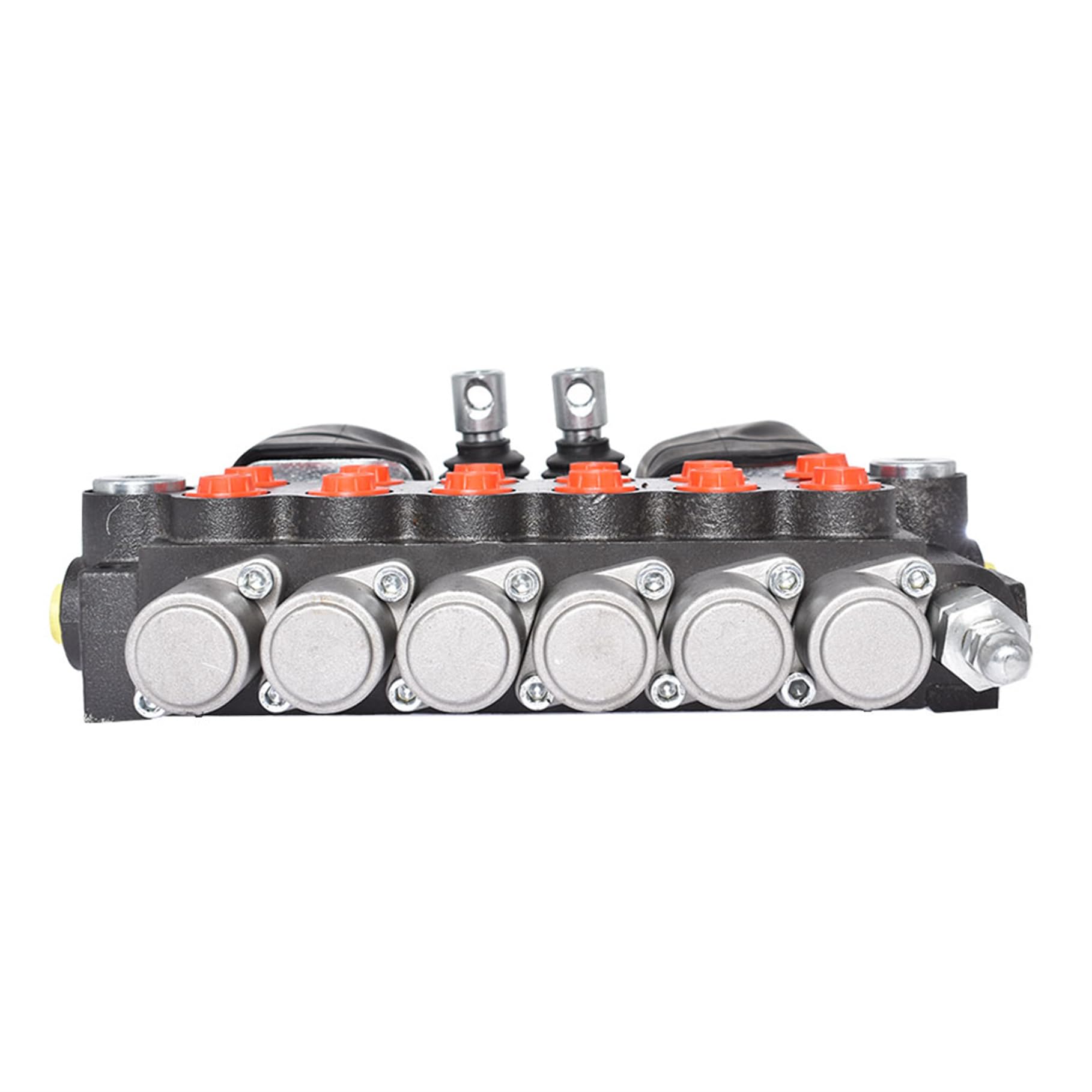

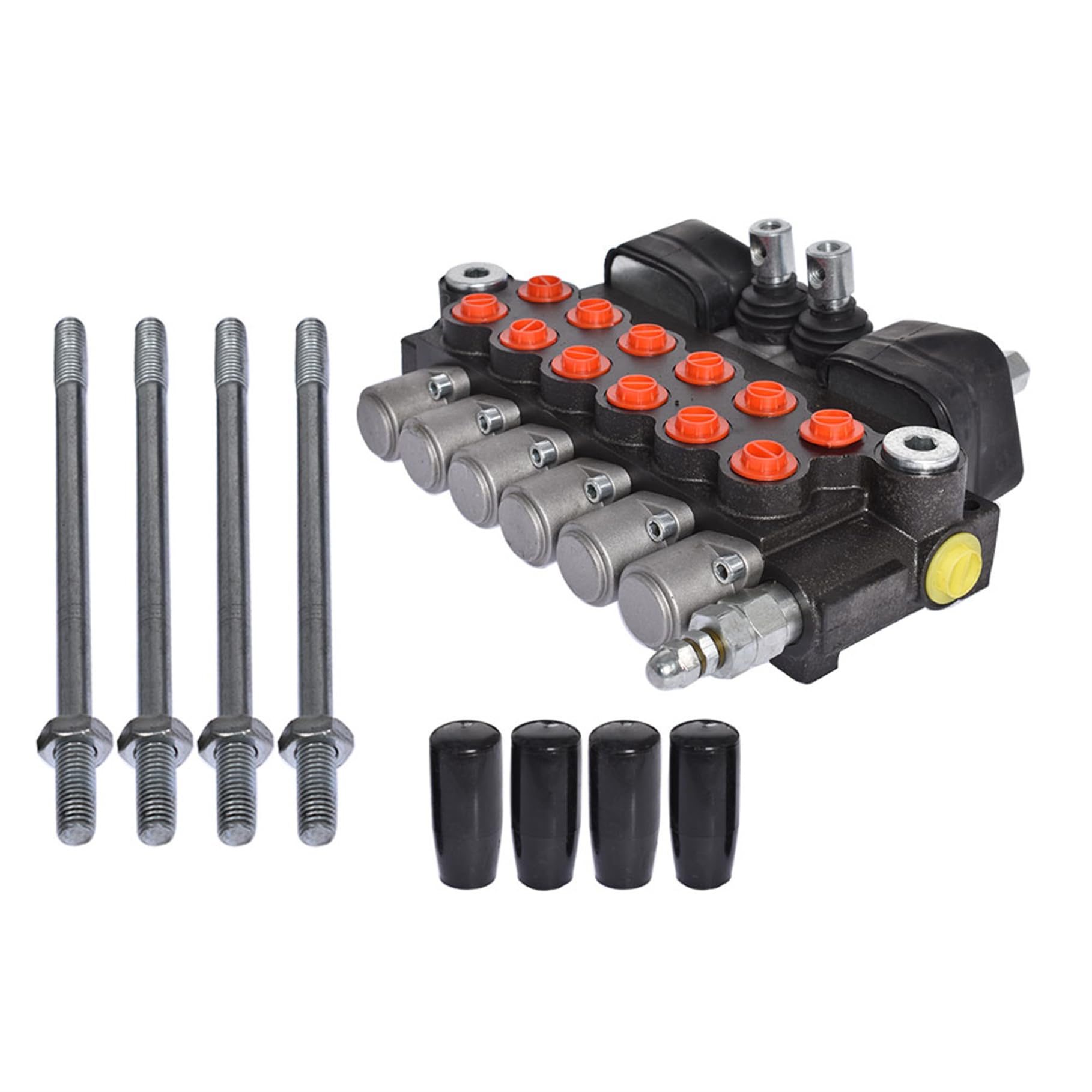

Specification Brand : TJHSM BulletPoint1 : Material - The hydraulic directional valve is made of cast iron structure BulletPoint2 : 6 Spool Hydraulic Valve - The hydraulic valve can manage and guide the flow of hydraulic oil between hydraulic pumps and hydraulic cylinders, motors, tanks, and more BulletPoint3 : Double Acting - This control valve comes with 6 spools. All spools are standard double-acting spools BulletPoint4 : Max Operating Pressure: 3625 PSI, T: 725 PSI, A and B: 4350 PSI BulletPoint5 : Max Relief Valve Range: 3625 PSI, Flow Rating: 11 GPM (40 l/min) Color : Black Department : unisex-adult ExternallyAssignedProductIdentifier : 3252508153352 FitType : Universal IncludedComponents : NEW ItemName : TJHSM Hydraulic Directional Control Valve with 2 Joystick 6 Spool 11 GPM 3625 PSI SAE Ports Double Acting Hydraulic Valve for Tractors Loaders Tanks Loaders Log Splitters ItemPackageDimensions_Height : 11 centimeters ItemPackageDimensions_Length : 31.5 centimeters ItemPackageDimensions_Width : 24.5 centimeters ItemPackageQuantity : 1 ItemTypeKeyword : hydraulic-directional-control-valves Manufacturer : TJHSM ModelName : valve Q-10 Q-10B ModelNumber : QDAF8-014935TJH01 NumberOfItems : 1 PartNumber : QDA-1283697-562330-TJH ProductDescription : 6 Spool 11 GPM Hydraulic Directional Control Valve: The hydraulic directional control valve is widely used in the hydraulic system of small tractors, tractor loaders, fellers, forklift environmental vehicles, light loaders, and more
Double Acting Spools: All spools are standard double-acting spools, which are very suitable for double acting cylinders
Simple description: Spring Return: Spring return to the neutral position Install: The vertical or horizontal handle mount Adjustable Relief Valve Range: 1500 to 3625 PSI Material: cast iron
Numerical description: Max Relief Valve Range: 3625 PSI Max Flow Rate: 11 GPM Flow Rating: 11 GPM (40 l/min) Max Operating Pressure: P: 3625 PSI, T: 725 PSI, A and B: 4350 PSI A and B Work Ports: 8 SAE O-Ring (3/4 inch-16) Thread Inlet Port: 10 SAE O-Ring (7/8 inch-14) Thread Outlet Port: 10 SAE O-Ring (7/8 inch-14) Thread 2 – 5/16 inch Mounting Holes
Tip: Can be used as a motor or single-acting spool possible (8 SAE port plug required)
ProductSiteLaunchDate : 2024-09-13T02:27:29.370Z Size : Does not apply Style : fashion SupplierDeclaredDgHzRegulation : not_applicable SupplierDeclaredHasProductIdentifierExemption : 1 UnitCount : 1 UnspscCode : 40141600 Voltage : 858 volts
