Specification
Brand : Summit Hydraulics
BulletPoint1 : Max Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSI
BulletPoint2 : Flow Rating: 15 GPM
BulletPoint3 : Work Ports: #8 SAE (3/4 – 16 ORB) Female Thread
BulletPoint4 : Pressure & Return Ports: #10 SAE (7/8- 14 ORB) Thread
BulletPoint5 : 3000 PSI Rated
ExteriorFinish : Chrome
ExternallyAssignedProductIdentifier1 : 0765552699248
ExternallyAssignedProductIdentifier2 : 765552699248
ItemName : Summit Hydraulics Electric Rear Remote Valve Kit for Compact Tractors (Three Spool) (2.0" ROPS Width)
ItemPackageDimensions_Height : 7 inches
ItemPackageDimensions_Length : 15 inches
ItemPackageDimensions_Width : 8 inches
ItemPackageQuantity : 1
ItemTypeKeyword : hydraulic-directional-control-valves
Manufacturer : Summit Hydraulics
Material : Aluminum
NumberOfItems : 23
NumberOfPorts : 2
PartNumber : 83944762-STR
ProductDescription :

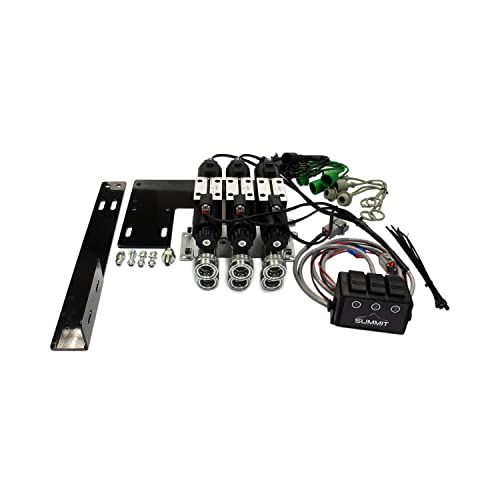

Electric Rear Remote Valve Kit for Compact Tractors (Three Spool)

This all-in-one rear remote valve kit is designed to install on your compact tractor (with power beyond kit installed) to add rear remote connections. This allows you to easily control various hydraulic implements using our Summit Hydraulics switchbox controls. You can add three rear remote coupler sets to your machine.

This kit requires minimal basic tools and mounts directly to your ROPS (variations for 2″ ROPS & 3″ ROPS available). It can be installed in 1.5 hours (estimated), and acts independently from the other hydraulic valves on your machine.

This kit will connect to the two quick connect power beyond couplers on the rear of your machine. These are the couplers often used to connect a backhoe and then are connected to each other when the backhoe is not in use.

NOTE: The rear remote connections on your machine will be 1/2″ Body AG ISO 5675 Female Couplers. The hoses for your implements will need 1/2″ Body AG ISO 5675 Male Couplers.

Valve Body Features:

Solid aluminum housing designed for rugged use

Max Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSI

Flow Rating: 15 GPM

Aluminum Body

3000 PSI Rated

Port Sizes:

Work Ports: #8 SAE (3/4 – 16 ORB) Female Thread

Pressure & Return Ports: #10 SAE (7/8- 14 ORB) Thread

Switch Features:

Switch Box with three momentary rocker switches that spring automatically to the neutral position

or Ergonomic joystick with 2 momentary push button switches and Switch Box with two momentary rocker switches

Valve harness uses Deutsch environmentally sealed connections for great functionality in harsh weather

1 36″ Valve Harness with Deutsch connectors

Solenoid Specifications:

Nominal Voltage Tolerance +/- 10%

Power Rating: 37 Watts

Amps: 3.08

100% Duty Cycle

ProductSiteLaunchDate : 2021-04-22T16:08:44.126Z
Size : 1 spool
SpecificationMet : sae
Style : 2.0" ROPS Width
UnitCount : 1
UnspscCode : 40141600
ValveType : rear remote valve
