SpecificationBrand : Summit Hydraulics
BulletPoint1 : 4 Spool valve with compact design allows for installations in tight areas
BulletPoint2 : All spools lock into forward position detent to allow for float
BulletPoint3 : Used for open center systems (Pump to Tank Flow)
BulletPoint4 : Anti-drop load checks on each spool
BulletPoint5 : Precision ground and hard chrome-plated spools assure a long life
ExteriorFinish : Chrome
ExternallyAssignedProductIdentifier1 : 0765552699200
ExternallyAssignedProductIdentifier2 : 765552699200

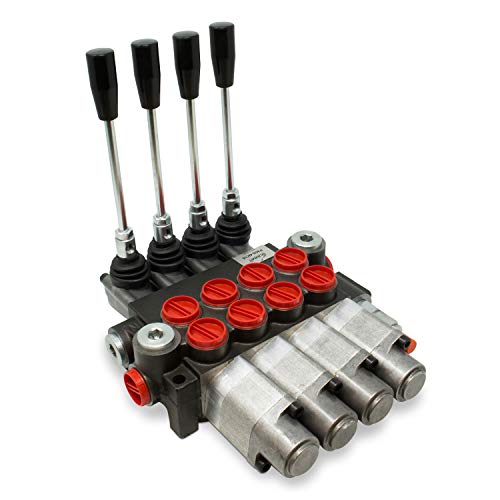

ItemName : Monoblock Hydraulic Directional Control Valve, 4 Spool, 4 Float, 11 GPM
ItemPackageDimensions_Height : 7 inches
ItemPackageDimensions_Length : 15 inches
ItemPackageDimensions_Width : 8 inches
ItemPackageQuantity : 1
ItemTypeKeyword : hydraulic-directional-control-valves
Manufacturer : Summit Hydraulics
Material : Cast Iron
NumberOfItems : 23
NumberOfPorts : 2
PartNumber : 83944762-STR
ProductDescription :
Monoblock Hydraulic Directional Control Valve, 4 Spool, 4 Float, 11 GPM
SKU: P402-4K16
This monoblock valve is a hydraulic directional control valve. These valves are used to start and stop fluid flow into hydraulic cylinders or hydraulic motors.
Common Uses:
- Operate hydraulic cylinders (Double-Acting or Single-Acting)
- Operate hydraulic motors ("D" Spool Required)
- Install rear remotes on a tractor
Benefits:
- 2 Spool valve with compact design allows for installations in tight areas
- All spools lock into forward position detent to allow for float
- Used for open center systems (Pump to Tank Flow)
- Anti-drop load checks on each spool
- Precision ground and hard chrome-plated spools assure a long life
- High-tensile strength cast iron monoblock construction
- SAE O-Ring ports ensure solid seal and prevent blockages
- Capable of closed center or Power Beyond (conversion plug required)
- Vertical or horizontal handle mount
- Adjustable Relief Valve Range: 1500 to 3625 PSI
- Used as motor or single-acting spool possible (#8 SAE port plug required)
Features:
- Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
- Flow Rating: 11 GPM (40 l/min)
- A & B Work Ports: #8 SAE O-Ring (3/4”-16) Thread
- Inlet Port: #10 SAE O-Ring (7/8”-14) Thread
- Outlet Port: #10 SAE O-Ring (7/8”-14) Thread
- 2 – 5/16” Mounting Holes
- Made in Europe
ProductSiteLaunchDate : 2021-03-05T18:34:41.349Z
Size : 1 spool
SpecificationMet : UL
Style : C Spool (Closed Center) 12 Volt
UnitCount : 1
UnspscCode : 40141600
ValveType : the relief valve
