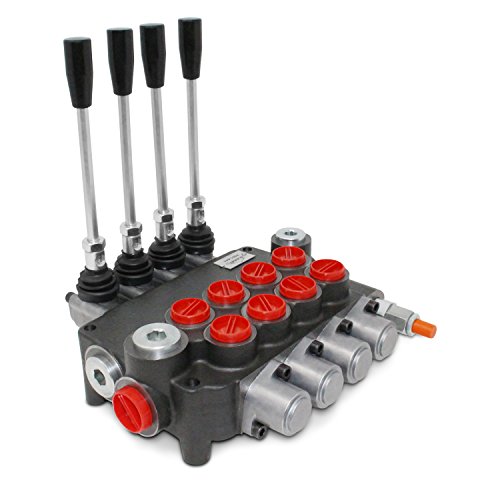

Monoblock Hydraulic Directional Control Valve, 4 Spool, 21 GPM, SAE Ports

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 48100/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart

Product Information


Specification
Brand : Summit Hydraulics
BulletPoint1 : 4 Spool, 21 GPM Flow, 3625 Max PSI
BulletPoint2 : All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders
BulletPoint3 : Used for open center systems (Pump to Tank Flow)
BulletPoint4 : Anti-drop load checks on each spool
BulletPoint5 : Adjustable Relief Valve Range: 1500 to 3625 PSI
BulletPoint6 : G (Gauge) port is SAE –6, 9/16-18 thread
BulletPoint7 : Two angled feet are included with eight M8-1.23 x16mm long bolts for ease of mounting.
BulletPoint8 : Option to include a pressure relieve valve with a 300-3000psi adjustment range. The valve cavity is shipped plugged if the relieve valve is not selected.
BulletPoint9 : Directly replaces many other parallel bar manifolds. Dimensionally compatible with Damon AD03P02 2 S/C series.
ExteriorFinish : Chrome
ExternallyAssignedProductIdentifier1 : 0765552693826
ExternallyAssignedProductIdentifier2 : 765552693826
ItemDisplayWeight : 1.8 pounds
ItemName : Monoblock Hydraulic Directional Control Valve, 4 Spool, 21 GPM, SAE Ports
ItemPackageDimensions_Height : 4.5 inches
ItemPackageDimensions_Length : 10 inches
ItemPackageDimensions_Width : 10 inches
ItemPackageQuantity : 1
ItemTypeKeyword : hydraulic-directional-control-valves
Manufacturer : Summit Hydraulics
Material : Steel
MaximumOperatingPressure : 3000 pounds_per_square_inch
ModelNumber : MPA6
NumberOfItems : 1
NumberOfPorts : 4
PartNumber : MPA6 series
ProductDescription :

Monoblock Hydraulic Directional Control Valve, 4 Spool, 21 GPM

SKU: P802-4A1

This monoblock valve is a hydraulic directional control valve. These valves are used to start and stop fluid flow into hydraulic cylinders or hydraulic motors.

Common Uses:

  • Operate hydraulic cylinders (Double-Acting or Single-Acting)
  • Operate hydraulic motors ("D" Spool Required)
  • Install rear remotes on a tractor

Benefits:

  • 4 Spool valve with compact design allows for installations in tight areas
  • All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders
  • Used for open center systems (Pump to Tank Flow) - closed center option available
  • Anti-drop load checks on each spool
  • Precision ground and hard chrome-plated spools assure a long life
  • High-tensile strength cast iron monoblock construction
  • SAE O-Ring ports ensure solid seal and prevent blockages
  • Capable of closed center or Power Beyond (conversion plug required)
  • Vertical or horizontal handle mount
  • Adjustable Relief Valve Range:  1500 to 3625 PSI
  • Used as motor or single-acting spool possible (#10 SAE port plug required)

Features:

  • Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
  • Flow Rating: 21 GPM (80 l/min)
  • A & B Work Ports:  #10 SAE O-Ring (7/8”-14) Thread
  • Inlet Port: #10 SAE O-Ring (7/8”-14) Thread
  • Outlet Port: #12 SAE O-Ring (1-1/16”-12) Thread
  • 3 – 5/16” Mounting Holes
  • Made in Europe

ProductSiteLaunchDate : 2017-11-10T08:00:00.000Z
Size : With Pressure Relieve Valve
SpecificationMet : UL
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 40141600
