Specification
AgeRangeDescription : adult
Brand : Fluidhaus
BulletPoint : Valves / Needle Valves
BulletPoint1 : Includes mounting bolts (M5x45mm long)
BulletPoint2 : Rated IP65 for dust and water resistance.
BulletPoint3 : Includes lighted DIN connector for each coil. LED illuminate’s clear connector housing when power is supplied to the connector/coil.
BulletPoint4 : Used in mobile, industrial. automation and construction equipment
BulletPoint5 : Purchase Fluidhaus sub plate series SA10 separately.
BulletPoint6 : Solenoid Power: DC= 30 watts, AC = 50VA (220VA inrush)
BulletPoint7 : Operating temperature = -22֯F to 174֯F
BulletPoint8 : Valve can be mounted in any direction.
Color : Black
Department : Unisex Adult
ExteriorFinish : Black Oxide
ExternallyAssignedProductIdentifier : 9313520395480
ExternallyAssignedProductIdentifier1 : 0765552698791
ExternallyAssignedProductIdentifier2 : 765552698791
IncludedComponents : Mounting Bolts

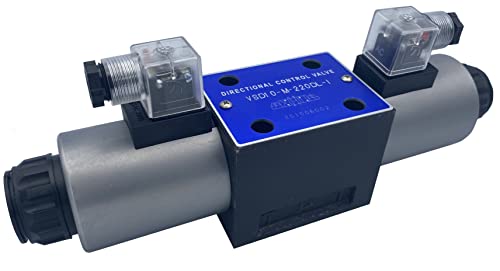

ItemName : Hydraulic Directional Control Valve D05 (NG10) 31 GPM 4560 psi AC or DC (M-Motor-Center A&B Blocked and Pressure to Tank, 110VAC)
ItemPackageDimensions_Height : 4 inches
ItemPackageDimensions_Length : 14 inches
ItemPackageDimensions_Width : 6 inches
ItemPackageQuantity : 1
ItemTypeKeyword : hydraulic-directional-control-valves
Manufacturer : Fluidhaus
Material : Carbon Steel
ModelName : Hydraulic Valve D05 NG10
ModelNumber : VSD10
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfPorts : 6
PartNumber : PPDB-LAN

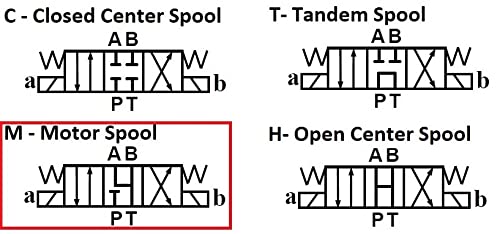

ProductDescription : Hydraulic Directional Control Valve. Proven high quality robust valve design successfully designed into many high volume applications. D05 (NG10) Cetop mounting. Can be mounted to standard available sub plates and bar manifolds. Maximum flow of 31 gpm Maximum working pressure = 4560psi (315 Bar) 3-position, 4-way, Spring centered, energize to shift Double solenoid operated Solenoid Power: DC= 35 watts, AC = 90VA (550VA inrush) Operating temperature = -22֯F to 174֯F Removable Coil Valve can be mounted in any direction Coil can be rotated to optimal connector position Uses DIN 46350 Form A electrical connection type Includes lighted DIN connector for each coil. LED illuminate’s clear connector housing when power is supplied to the connector/coil. IP65 water and dust rating. NBR Buna seals Use with mineral based hydraulic fluid. Four fastening screws included, M6x40mm long White label with no logo for OEM manufacturers. Weight = 10.8 lbs (4.9 kg) Options: Solenoid Voltage: 12VDC, 24VDC, 110VAC (50 or 60 hz), 220VAC (50 or 60 hz) Spool Configurations: M: Motor spool, A and B ports to tank and P port blocked when centered. Actuators will move freely from external forces when the valve is in the center position. Motors and cylinders will coast to a stop when centering. Adding an A&B port P.O. check valve under this valve will ensure a positive stop and hold the position of a motor and cylinder for longer durations. T: Tandem Spool, A and B ports closed and P to T in center position: Actuators will stop in center position and the supply pressure will be directed to tank. Commonly used with fixed displacement gear pumps so pressure can flow direct to tank and not build up heat by blowing across a relieve valve as would be needed with the M and C spool.
ProductSiteLaunchDate : 2021-03-06T19:25:58.832Z
Size : M-Motor-Center A&B Blocked and Pressure to Tank
SpecificationMet : reach
Style : 110VAC
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 40141600
Voltage : 376 volts
