Cart 2 india

Specification
Brand : WsrrLun
BulletPoint1 :
BulletPoint2 :
BulletPoint3 :
BulletPoint4 :
BulletPoint5 :
Color : Black
ExternallyAssignedProductIdentifier1 : 0756804722241
ExternallyAssignedProductIdentifier2 : 756804722241
IncludedComponents : 1* Hydraulic Adjustable Variable Flow Control Valve

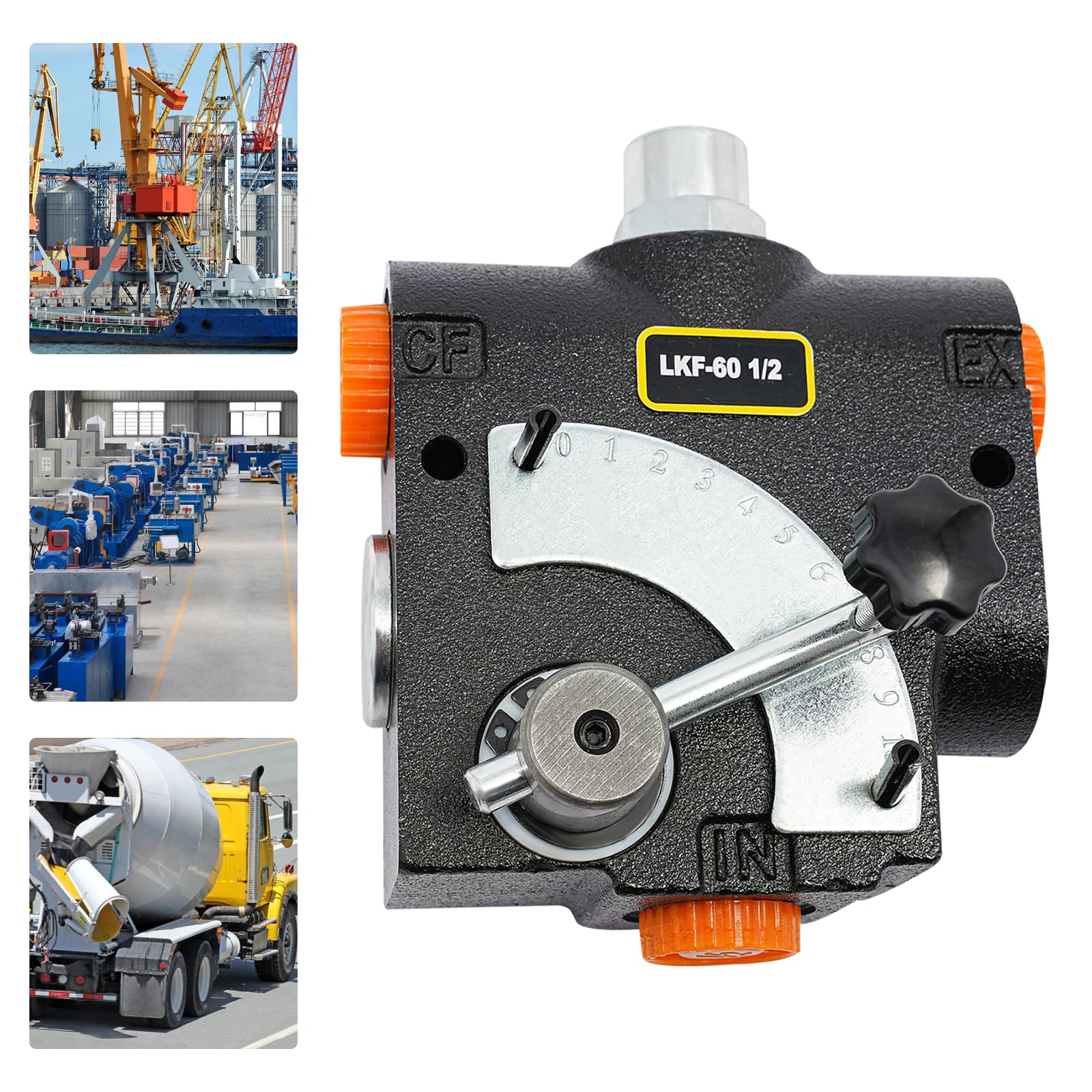

ItemName : Hydraulic Adjustable Variable Flow Control Valve 0-16 GPM Hydraulic Directional Control Valve suitable for small tractors light-loading machines 1/2" NPT Port Size LKF-60
ItemPackageDimensions_Height : 4.13 inches
ItemPackageDimensions_Length : 6.3 inches
ItemPackageDimensions_Width : 5.51 inches
ItemPackageQuantity : 1
ItemTypeKeyword : hydraulic-directional-control-valves
Manufacturer : WsrrLun
Material : Stainless Steel
MaximumOperatingPressure : 3000 pounds_per_square_inch
ModelName : Hydraulic Adjustable Variable Flow Control Valve 16 GPM
ModelNumber : LKF-60
NumberOfItems : 1
NumberOfPorts : 3
PartNumber : LKF-60
ProductDescription :

21MPa Hydraulic Acting Adjustable Flow Control Valve Directional Control Valve

Details

Burr-free Edges: Smooth, burr-free edges are not only comfortable to touch, but also care for your skin.

Practical Knob: The hydraulic valve helps you to regulate the flow more easily.

Application

The hydraulic adjustable variable flow control valve is suitable for small tractors, tractor loaders, log splitters, light-loading machines, and so on. It is used to stop or start a hydraulic motor or cylinder.

Ports

IN: Inlet Port

CF (Controlled Flow): Flow coming from this port is pressure compensated and proportional. Flow can vary from closed to fully open depending on the position of the lever.

EX (Excess Flow): Flow coming from this port is pressure compensated. If the lever is set to 0 all flow will exit the valve from this port.

Specification

Color: Black

Model: LKF-60

Assembly Required: No

Nominal Diameter: 15mm/0.59in

Nominal Pressure: 21MPa

Nominal Flow Rate: 0-60L/15.85Gal/min

Adjustable Flow Rate: 0-16 GPM

Port Size: 1/2" NPT

Maximum Working Pressure: 3000 PSI

Product Size: 11.5*4.8*14.7cm/4.53*1.89*5.79 in

Gross Weight: 3.9kg/8.6lbs

Package Size: 16*14*10.5cm/6.3*5.51*4.13in

Package Included

1* Hydraulic Adjustable Variable Flow Control Valve

Notes

1.Please note that the EX Port must be plumbed back into the tank for the relief valve to operate.

2.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

ProductSiteLaunchDate : 2024-08-02T08:52:25.761Z
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 40141600
ValveType : directional control valve
