SpecificationBrand : Summit Hydraulics
BulletPoint1 : 4 Spools, C Spool (Closed Center), 12 Volt
BulletPoint2 : Flow Rating: 25 GPM
BulletPoint3 : This double acting hydraulic control valve is designed to control the flow of hydraulic fluid in/out of a hydraulic motor. These valves can be used to add additional auxiliary hydraulic functions or replace a current hydraulic control valve. This is a three station, open-center, series configuration setup.
BulletPoint4 : A & B Ports are closed in the neutral position, and designed for double-acting cylinders. T port is closed to tank in the neutral position, and is designed for use on closed-center hydraulic systems. No load sensing options are available on this valve.
BulletPoint5 : Max Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSI
ExternallyAssignedProductIdentifier1 : 0765552698838
ExternallyAssignedProductIdentifier2 : 765552698838

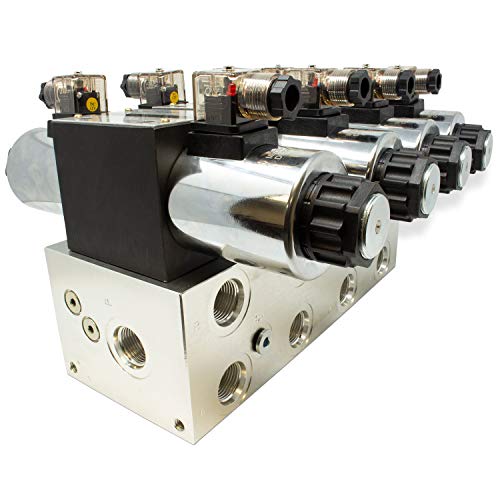

ItemName : Electric Hydraulic Double Acting Directional Control Valve, 4 Spool, 25 GPM (C Spool (Closed Center) 12 Volt)
ItemPackageDimensions_Height : 6 inches
ItemPackageDimensions_Length : 14 inches
ItemPackageDimensions_Width : 12 inches
ItemTypeKeyword : hydraulic-directional-control-valves
Manufacturer : Summit Hydraulics
Material : Aluminum
NumberOfItems : 1
NumberOfPorts : 2
PartNumber : D100-4A-12V
ProductDescription :
This double acting hydraulic control valve is designed to control the flow of hydraulic fluid in/out of a hydraulic cylinder. These valves can be used to add additional auxiliary hydraulic functions or replace a current hydraulic control valve. This is a single station, open-center, series configuration setup.
C Spool (Closed Center)
- A & B Ports are closed in the neutral position, and designed for double-acting cylinders.
- T port is closed to tank in the neutral position, and is designed for use on closed-center hydraulic systems. No load sensing options are available on this valve.
- 12 volt
Valve Body Features:
- Solid aluminum housing designed for rugged use
- Max Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSI
- Flow Rating: 25 GPM
- Aluminum Body
- 3000 PSI Rated
- #12 SAE (1 1⁄16 – 12 ORB) female thread Work Ports
- #12 SAE (1 1⁄16 – 12 ORB) female thread Inlet (Pressure) Port
- #16 SAE (1 5/16 -12 ORB) female thread Outlet (Tank) Port
Switch Features:
- Switch Box with four momentary rocker switches that spring automatically to the neutral position
- Weatherproof enclosure and DIN connectors
- Switch includes a 3′ switch harness and 10′ extension valve harness for a total of 13′ between switch and valve
- Momentary push button rocker switch box allows for easy control
- Mountable Switch Bracket
Solenoid Specifications:
- Nominal Voltage Tolerance +/- 10%
- Power Rating: 37 Watts
- Amps: 3.08
- 100% Duty Cycle.
- 12 volt
ProductSiteLaunchDate : 2020-07-23T19:27:45.759Z
Size : 1 spool
SpecificationMet : sae
Style : C Spool (Closed Center) 12 Volt
UnitCount : 1
UnspscCode : 40141600
ValveType : the relief valve
