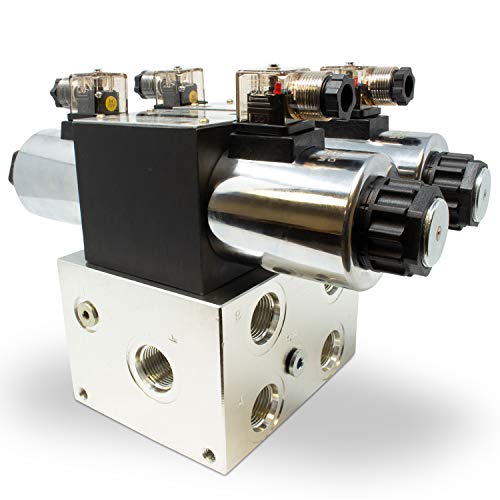

Electric Hydraulic Double Acting Directional Control Valve, 2 Spool, 25 GPM (C Spool (Closed Center) 12 Volt)

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 83400/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart

Product Information


Specification
Brand : Summit Hydraulics
BulletPoint1 : 2 Spools, A Spool (Controls Double Acting Cylinders), 12 Volt
BulletPoint2 : Flow Rating: 25 GPM
BulletPoint3 : This double acting hydraulic control valve is designed to control the flow of hydraulic fluid in/out of a hydraulic cylinder or motor (depending on spool type). These valves can be used to add additional auxiliary hydraulic functions or replace a current hydraulic control valve. This is a two station, open-center, series configuration setup
BulletPoint4 : All spools are double acting with spring return to neutral position, A spool is designed to control double acting cylinders, A and B ports are closed to Tank in neutral position
BulletPoint5 : Max Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSI
ExternallyAssignedProductIdentifier1 : 0765552698753
ExternallyAssignedProductIdentifier2 : 765552698753
ItemName : Electric Hydraulic Double Acting Directional Control Valve, 2 Spool, 25 GPM (C Spool (Closed Center) 12 Volt)
ItemPackageDimensions_Height : 4 inches
ItemPackageDimensions_Length : 13 inches
ItemPackageDimensions_Width : 10 inches
ItemTypeKeyword : hydraulic-directional-control-valves
Manufacturer : Summit Hydraulics
Material : Aluminum
NumberOfItems : 1
NumberOfPorts : 2
PartNumber : D100-2A-12V
ProductDescription :

Electric Hydraulic Double Acting Directional Control Valve, 2 Spool, 25 GPM

This double acting hydraulic control valve is designed to control the flow of hydraulic fluid in/out of a hydraulic cylinder. These valves can be used to add additional auxiliary hydraulic functions or replace a current hydraulic control valve. This is a two station, open-center, series configuration setup.


A Spool (Controls Double Acting Cylinders)

  • All spools are double acting with spring return to neutral position, A spool is designed to control double acting cylinders
  • A and B ports are closed to Tank in neutral position


Valve Body Features:

  • Solid aluminum housing designed for rugged use
  • Max Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSI
  • Flow Rating: 25 GPM
  • Aluminum Body
  • 3000 PSI Rated
  • #12 SAE (1 1⁄16 – 12 ORB) female thread Work Ports
  • #12 SAE (1 1⁄16 – 12 ORB) female thread Inlet (Pressure) Port
  • #16 SAE (1 5/16 -12 ORB) female thread Outlet (Tank) Port


Solenoid Specifications:

  • Nominal Voltage Tolerance +/- 10%
  • Power Rating: 37 Watts
  • Amps: 3.08
  • 100% Duty Cycle
  • 12 Volt

ProductSiteLaunchDate : 2020-07-24T20:26:15.563Z
Size : 1 spool
SpecificationMet : sae
Style : C Spool (Closed Center) 12 Volt
UnitCount : 1
UnspscCode : 40141600
ValveType : the relief valve
