Specification
Brand : Summit Hydraulics
BulletPoint1 : A Spool (Controls Double Acting Cylinders), 12 Volt
BulletPoint2 : Flow Rating: 25 GPM
BulletPoint3 : Momentary Rocker Switch includes a 5′ switch harness and 3′ extension valve harness for a total of 8′ between switch and valve allows for easy control with Mountable Switch Bracket
BulletPoint4 : All spools are double acting with spring return to neutral position, A spool is designed to control double acting cylinders, A and B ports are closed to Tank in neutral position
BulletPoint5 : Max Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSI
ExteriorFinish : Chrome
ExternallyAssignedProductIdentifier1 : 0765552697404
ExternallyAssignedProductIdentifier2 : 765552697404
ItemName : Electric Hydraulic Double Acting Control Valve w/Rocker Switch, 1 Spool, 25 GPM (A Spool, Controls Double Acting Cylinders, 12 Volt)
ItemPackageDimensions_Height : 4 inches
ItemPackageDimensions_Length : 10 inches
ItemPackageDimensions_Width : 7 inches
ItemPackageQuantity : 1
ItemTypeKeyword : hydraulic-directional-control-valves
Manufacturer : Summit Hydraulics
Material : Aluminum
ModelNumber : WAUSF8-014936
NumberOfItems : 1
NumberOfPorts : 6
PartNumber : D100-1A-12V-SW
ProductDescription :

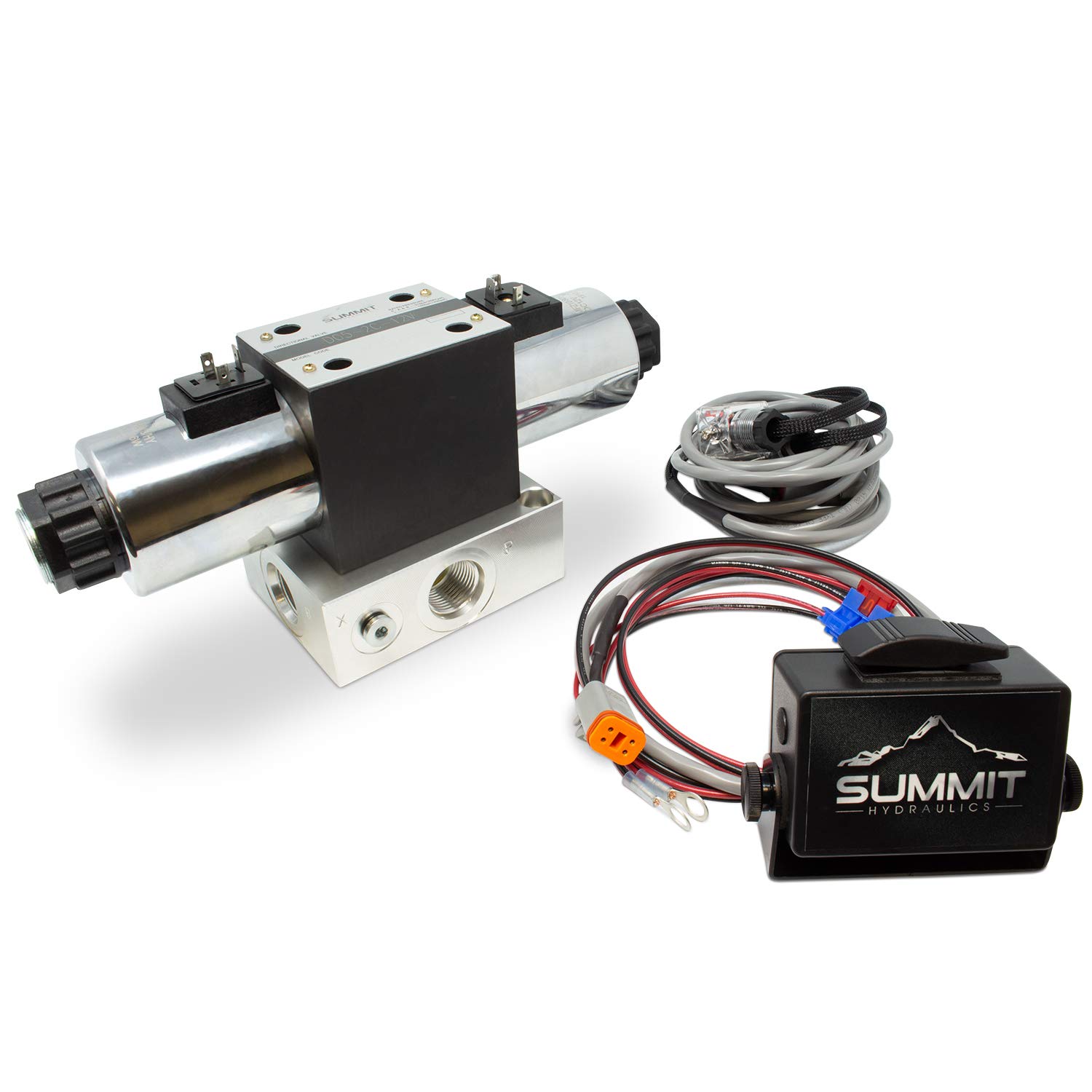

Electric Hydraulic Double Acting Directional Control Valve, 1 Spool, 25 GPM

This double acting hydraulic control valve is designed to control the flow of hydraulic fluid in/out of a hydraulic cylinder. These valves can be used to add additional auxiliary hydraulic functions or replace a current hydraulic control valve. This is a single station, open-center, series configuration setup.

A Spool (Controls Double Acting Cylinders)

• All spools are double acting with spring return to neutral position, A spool is designed to control double acting cylinders
• A and B ports are closed to Tank in neutral position

Valve Body Features:

• Solid aluminum housing designed for rugged use
• Max Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSI
• Flow Rating: 25 GPM
• Aluminum Body
• 3000 PSI Rated
• #12 SAE (1 1⁄16 – 12 ORB) female thread Work Ports
• #16 SAE (1 5/16 -12 ORB) female thread Outlet (Tank) Port
• #12 SAE (1 1⁄16 – 12 ORB) female thread Inlet (Pressure) Port

Switch Features:

• Switch includes a 3′ switch harness and 10′ extension valve harness for a total of 13′ between switch and valve
• Momentary push button rocker switch box allows for easy control
• Mountable Switch Bracket

Solenoid Specifications:

• Nominal Voltage Tolerance +/- 10%
• Power Rating: 37 Watts
• Amps: 3.08
• 100% Duty Cycle.
• 12 Volt

ProductSiteLaunchDate : 2020-07-24T23:27:45.759Z
SpecificationMet : sae
StreetDate : 2017-05-15T00:00:01Z
Style : A Spool (Controls Double Acting Cylinders) 12 Volt
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 40141600
ValveType : the relief valve
Voltage : 968 volts
