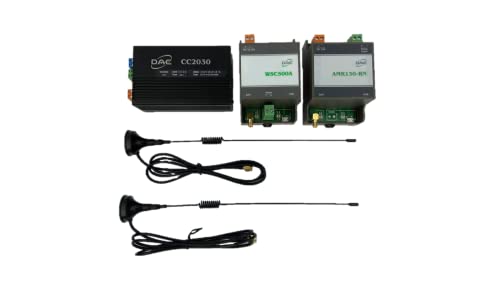

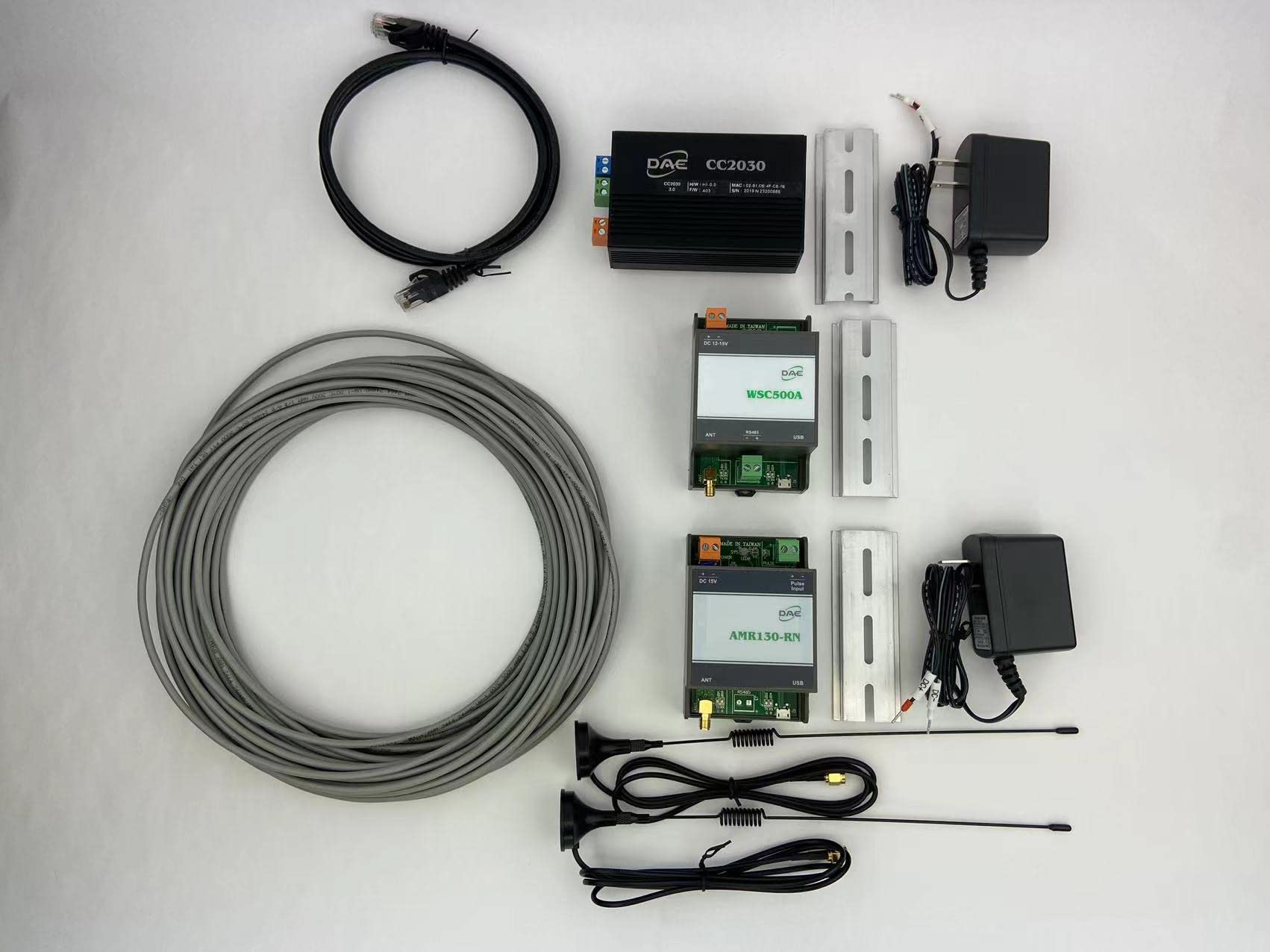

Specification BatteriesIncluded : 1 BatteriesRequired : 1 Brand : DAE BulletPoint : Standard Kit; MMS3 instrument in hard case BulletPoint1 : For existing building, hard to draw cable between AMR130AN (close to water meter) and CC2030 (close to your router), please choose CC2030 KIT+AMR130-RN KIT+WSC500A to connect them wirelessly. Indoor use only, DAE B1725 watertight enclosure available for outdoor use. BulletPoint2 : CC2030 KIT Gateway+AMR130-RN KIT+WSC500A can read a water meter with pulse output (like DAE AS200U-75P, MJ-75, PD-100, V-75P, VM-75P and WP-300P) remotely with cell phone, PC and generate billing report. If there is abnormal usage (ex. Broken piping), an email alert will be sent to your cell phone. No IT guy is required. Just connect wires as per 6th picture (see video) & ready to go. It includes 1 software key and 1 annual fee. One CC2030 Gateway can monitor 20 meters ( water, electricity, and gas). 1 software key ($30, one-time fee) and 1 annual fee ($2.5) per meter is required for additional meter connected to the CC2030. BulletPoint3 : If feasible to draw a cable between AMR130AN (close to water meter) and CC2030 (close to your router), it will be more cost-effective to choose DAE CC2030 KIT + AMR130AN KIT. (4th picture) For monitoring up to 16 water meters remotely with cell phone, PC and generate billing report, you will just need 1 AMR KIT + 1 CC2030 KIT (5th picture). DAE Controls LLC is an Minority Business. Please feel free to get the NMSDC Minority Supplier Certificate from DAE Controls Website. BulletPoint4 : For remote reading with CC2030KIT+AMR130-RN KIT+ WSC500A, 1 Non-Return-Valve (like NRVMJ-75 for MJ-75, to be installed at outlet of meter) is required for each Water Meter (1 gallon/pulse), or reading on cell phone, PC will be more than actual reading on meter due to back flow. With UL2464-100 (shielded, twisted pair cable), it can extend the connection of the water meter to AMR130-RN up to 328 feet (100 meters). BulletPoint5 : When water flows back, meter keeps generating pulse like water is flowing forward. Reading on cell phone, PC is based on input of pulse. Therefore, without Non-Return-Valve, reading on cell phone, PC will be more than actual reading on meter due to back flow. For example, when 10 gallons of water flow through MJ-75 meter and 2 gallons flow back, reading on meter is 8 gallons. But reading on cell phone, PC will be 12 gallons. ExternallyAssignedProductIdentifier : 00810049301170 ExternallyAssignedProductIdentifier1 : 0730707520319 ExternallyAssignedProductIdentifier2 : 730707520319 IncludedComponents : / ItemDisplayWeight : 3 pounds ItemName : DAE CC2030 KIT+AMR130-RN KIT+DAE WSC500A Connected Wirelessly, read 1 Water Meter by PC, Cell Phone, generate billing report ItemPackageDimensions_Height : 7.3 inches ItemPackageDimensions_Length : 4.25 inches ItemPackageDimensions_Width : 3 inches ItemPackageQuantity : 1 ItemTypeKeyword : moisture-meters Manufacturer : DAE Material : Plastic ModelName : CC2030 KIT+AMR130-RN KIT+WSC500A ModelNumber : CC2030 KIT+AMR130-RN KIT+WSC500A NumberOfBoxes : 1 NumberOfItems : 5 PartNumber : IG15818 Pattern : W/ Accessories, Fee and W/ AMR130-RN KIT PowerSourceType : Battery Powered ProductDescription : Please refer to 3rd pictures for DAE Cloud Metering Solutions for Water. CC2030 will collect water usage from AMR130-RN KIT (for 1 meter) through WSC500A wirelessly and send them to the cloud (DAE server) by Ethernet. With cell phone/PC, you can read the meter remotely and generate billing reports. No IT guy is required. Just connect wires as per 4th picture (see video) & ready to go. Operating Temperature: -40 to 70˚C (-40 to 158˚F) Operating Humidity: 0 to 90% RH (non-condensing) Auxiliary Power: DC 12-15V / 5.4VA Communication: RF 900~930MHz (Default: 915MHz) RF Transmission Rate: 0.3~62.5 ( Default: 2.4kbs ) Transmitter RF Output Power: 22dBm, 17dBm,13dBm, 10dBm Antenna Type: Suction type, 3.5dBi Transmission Range: 5 km (Clear weather, open area without obstacles, antenna 2 meters above the ground.) Certification: FCC certified Settable Parameters: Address 0~254; Baud Rate 1200, 2400, 4800, 9600 bps; Decimal Places: 0, 0.0, 0.00; Pulse Divider: 1, 4, 8, 10, 16, 32, 64 Non-volatile memory retains metering data during power failure To securely transfer metering data for DAE Cloud Metering Solutions on Water, please use UL2464 cable to extend connection between water meters (have about 4 ft pulse cable) and AMR130-RN, or reading of Cell phone/PC may be more than reading of meter due to exterior interference. With UL2464 cable, connection between meter, AMR130-RN can be extended at least 328 ft. You must have back-flow-prevention valve in your piping system, or the reading of Cell phone/PC may be more than the reading of water meter due to the backflow. Most of US piping system have back-flow-prevention valve. If not, please install one or refer to Non-Return-Valve (like NRVAS-75 for AS200U-75P) in DAE Controls Website, an in-expensive backflow prevention valve to be installed at the outlet of water meter. ProductSiteLaunchDate : 2022-03-22T19:47:08.206Z Size : BLD9800-C Standard Kit SupplierDeclaredDgHzRegulation : not_applicable SupplierDeclaredHasProductIdentifierExemption : 1 UnitCount : 1 UnspscCode : 43191600
