Product Information
Editorial Review

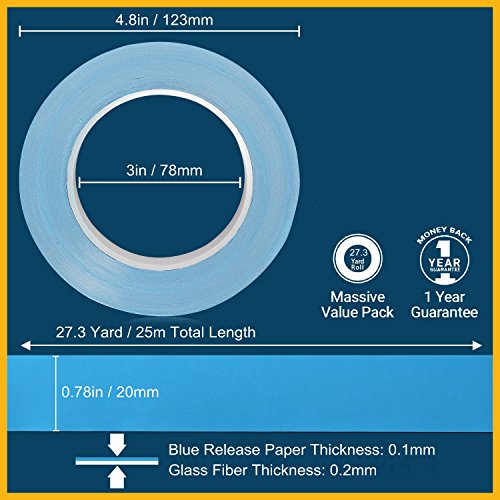

Specification: Dimension: 20mm x 25m Glass fiber thickness: 0.2mm Thermal Conductivity:1.5 W/m-k Breakdown Voltage: 4KVAC Thermal impedance : 0.3,,fin2/w Initial Adhesion: 1.3kg/inch 180°Adhesion power: >16 N/25mm Heat Resistance: 120°C (long time), 180°C ( short time) Applicable temperature range:-20~+120 °C Application: Used for attaching heat sink to CPU GPU, high power LED, chip set, LED TV field, Video Card RAM, DDR Memory Modules, SSD drives, Features: Thermal conductivity and high stability, its life than the general heat double-sided stickers long, normal temperature (80-120,,f ) can work for a minimum of 5 years. Notes For Attention: 1.When using thermal conductive double-sided tape, keep the adhesive surface clean and dry. 2.After tearing off the heat-conductive double-sided tape to peel the paper, double-sided thermal tape is evenly pressed with your fingers (just a little strength). 3.The viscosity of the heat-conductive double-sided adhesive tape have initial viscosity and persistent viscosity, and at room temperature, it takes 72 hours to achieve the maximum adhesive strength. That is, at the beginning of the sticky adhesive that is the initial viscosity to 40% of its maximum viscosity, persistent stickiness is stable over time. 4.In the paste process, the appropriate heating (60 ~ 70 ,,f), will greatly contribute to the effective increase in the area of adhesive, and as soon as possible to achieve maximum adhesion. In the lower temperature of the winter, it's little tips that heating to increase the viscosity of the heat-conductive double-sided tape when using the thermal conductive tape. Package included: 1 Roll Thermal Conductive Double-sided Tape
Features
1) With the features of high thermal conductivity, insulation, strong stickiness, softness, compression, thermal double conductive tape is great helper to solve heat dissipation for many electronics products.

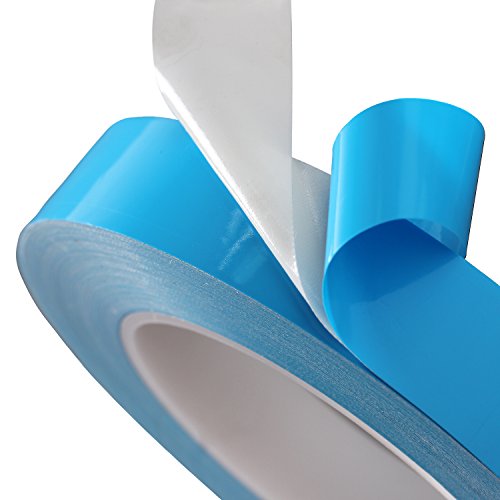

2) Easy to use - Just stick on surface of any object and tear the blue release paper, which can be tightly and firmly conglutinate on the heat source devices and heat sink to speed the heat dissipation.

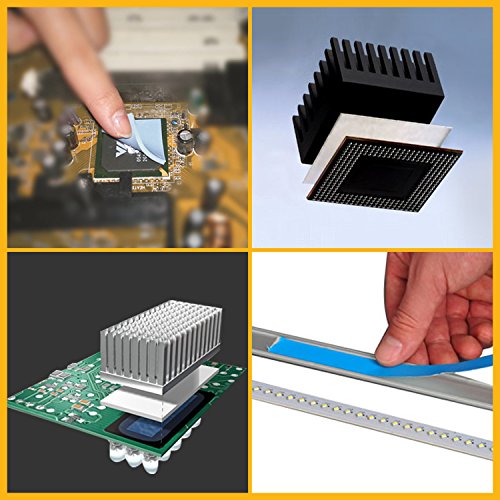

3) Double Side Adhesive Thermal Conductive Tape for attaching heatsink to high power LED, CPU GPU, etc.
4) Long term heat resistant 120C, short term heat resistant 180C.
5) Dimension size: 20mm x 25m x 0.3mm (Width x Length x thickness)
Specification
Binding : Personal Computers
Brand : CEATECH
EAN : 0615311854381
Label : U.S CAYEDA DIRECT
Manufacturer : U.S CAYEDA DIRECT
Model : CYD-007
PackageDimensions_Weight : 0.30 pounds
PackageDimensions : L:7.28 X W:5.98 X H:0.91
ProductGroup : PC Accessory
ProductTypeName : COMPUTER_COOLING_DEVICE
Publisher : U.S CAYEDA DIRECT
Studio : U.S CAYEDA DIRECT
Title : Ceatech 20mm x 25m Thermal Conductive Tape Adhesive Double Side Professional Cooling Tape for Heatsink LED, IC Chip-set
Specification: Dimension: 20mm x 25m Glass fiber thickness: 0.2mm Thermal Conductivity:1.5 W/m-k Breakdown Voltage: 4KVAC Thermal impedance : 0.3,,fin2/w Initial Adhesion: 1.3kg/inch 180°Adhesion power: >16 N/25mm Heat Resistance: 120°C (long time), 180°C ( short time) Applicable temperature range:-20~+120 °C Application: Used for attaching heat sink to CPU GPU, high power LED, chip set, LED TV field, Video Card RAM, DDR Memory Modules, SSD drives, Features: Thermal conductivity and high stability, its life than the general heat double-sided stickers long, normal temperature (80-120,,f ) can work for a minimum of 5 years. Notes For Attention: 1.When using thermal conductive double-sided tape, keep the adhesive surface clean and dry. 2.After tearing off the heat-conductive double-sided tape to peel the paper, double-sided thermal tape is evenly pressed with your fingers (just a little strength). 3.The viscosity of the heat-conductive double-sided adhesive tape have initial viscosity and persistent viscosity, and at room temperature, it takes 72 hours to achieve the maximum adhesive strength. That is, at the beginning of the sticky adhesive that is the initial viscosity to 40% of its maximum viscosity, persistent stickiness is stable over time. 4.In the paste process, the appropriate heating (60 ~ 70 ,,f), will greatly contribute to the effective increase in the area of adhesive, and as soon as possible to achieve maximum adhesion. In the lower temperature of the winter, it's little tips that heating to increase the viscosity of the heat-conductive double-sided tape when using the thermal conductive tape. Package included: 1 Roll Thermal Conductive Double-sided Tape
