Brand : WYDDDARY
BulletPoint1 : 【Supports multiple hardness conversions】Equipped with a hardness value conversion function, supporting tolerance judgment by upper and lower hardness limits. The system can directly read corner lengths D1 and D2, offering conversions to HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T scales for versatile testing needs.
BulletPoint2 : 【XY Platform】The advantages of XY platform include high accuracy, large range of movement, automatic edge scanning, adjustable movement speed, and customizable travel and size, combined with micrometer scale displacement, that can meet the needs of accurate measurement and specific location measurement.
BulletPoint3 : 【Reliable Diamond Indenter】Diamond indenter has good wear resistance and impact resistance, can maintain stable working performance under high load, to ensure its long-term reliability and durability, high precision, high stability, so that in a variety of hardness testing to provide accurate and reliable measurement results.
BulletPoint4 : 【Clearly experimental light sources】The micro hardness tester's light source delivers clear, uniform illumination for sharp visibility of indentations and test areas, ensuring accurate measurements. Stable brightness minimizes errors and resists external light interference for reliable results in any environment.
BulletPoint5 : 【Automatic calculations for greater efficiency】One-click measurement of indentation size automatically uploads data to the hardness tester and calculates the hardness value. Note: When inserting the micro eyepiece into the eyepiece tube, ensure it is fully inserted without gaps to maintain measurement accuracy.
ExternallyAssignedProductIdentifier1 : 0198462850445
ExternallyAssignedProductIdentifier2 : 198462850445

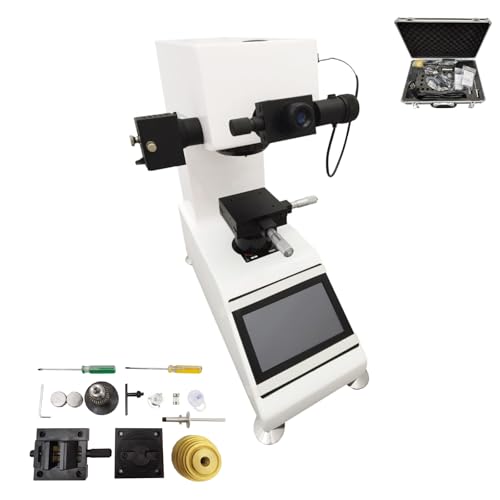

ItemName : WYDDDARY HVST-1000Z Vickers Hardness Tester 8~2900HV Touch Screen Micro Digital Hardness Tester Hardness Measuring Equipment for Experiments Automatic Loading and unloading 110V
ItemPackageDimensions_Height : 31.89 inches
ItemPackageDimensions_Length : 24.8 inches
ItemPackageDimensions_Width : 15.35 inches
ItemTypeKeyword : hardness-testing-apparatus
Manufacturer : WYDDDARY
NumberOfItems : 1
PartNumber : CD056725
ProductDescription : Product Overview

Micro Digital Vickers Hardness Tester is a kind of precision instrument used to measure the microhardness of metal and non-metal materials. Its advantages include high precision measurement, simple operation, high degree of automation, versatility, good user experience and a wide range of applications. The Micro Vickers hardness tester is best used to test metal structure, including small parts, sheet metal, metal foil, high quality wire, thin hardened layer and electroplating layer. It can also be used to test non-metallic materials such as glass, jewelry, ceramics and other non-metallic materials that cannot be tested by Rockwell test methods and other relatively large test forces. It plays an important role in many fields such as machinery, metallurgy, materials science, physics, biology and so on.
Product Parameters

Model: HVST-1000Z

Voltage: 110V

Test force application method: Automatic loading and unloading test force

Test force retention time: 5～60s (one unit per 1 second)

Maximum height of test piece: 4.3"(110mm)

Distance from the center of the indenter to the outer wall: 3.3"(85mm)

XY platform: size: 3.9"(100×100mm)

route or distance of travel: 0.98"(25×25mm)

resolution ratio: 10μm(0.01mm)

Data output: Digital 7 inch LCD screen display

Conversion scale: HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T

Measuring range: 8~2900HV

Method of testing force applied: Automatic(Loading, Dwell, Unloading)

Test microscope magnification: 400X(measuring)，100X(observation)

Room temperature: (23 ± 5) ℃

Indoor relative humidity: ≤65%

Package size: 24.8"*15.4"*31.9" (63cm*39cm*81cm)

Net weight/Gross weight: 99.2lbs(45kg)/124.6lbs(56.5kg)
