Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : YFYIQI
BulletPoint1 : The detector has strong structure, rain and dust proof, and can be installed outdoors.
BulletPoint2 : Ensure the high stability and reliability of outdoor, mine and indoor on-line inspection for a long time.
BulletPoint3 : The Non-Contact Grounding resistance Online Detector, equipped with GPRS communication and RS485 interface, can build a network system to realize real-time detection and remote monitoring.
BulletPoint4 : The detector adopts non-contact measurement technology, and the grounding down lead goes through the perforation of the detector directly, which will not affect the lightning protection grounding effect and the normal operation of the facilities.
BulletPoint5 : The Non-Contact Grounding Resistance Online Detector applies to electric transmission line pole ground connection, underground mine device ground connection, Meteorological protection ground connection, petrochemical engineering ground connection, communication ground connection, rail facility ground connection, building the warehouse ground connection, electrical equipment ground connection etc.
Color : BLACK

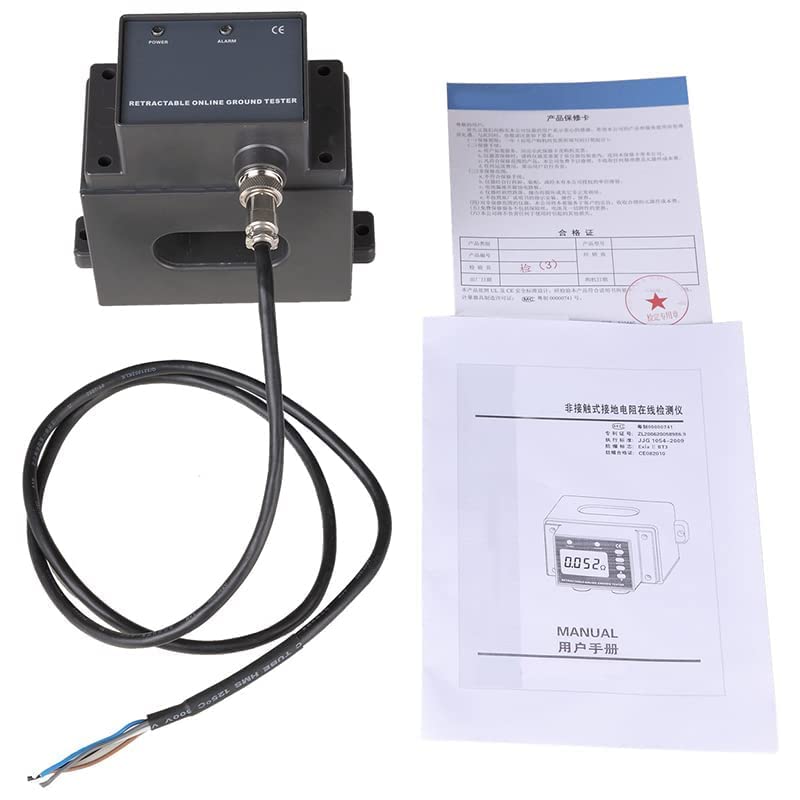

IncludedComponents : Non-Contact Earth Resistance Online Detector
ItemName : YFYIQI Non-Contact Earth Resistance Online Detector Tester Meter Ground Resistance Meter Online Ground Tester Instrument with Range 0.010Ω to 200Ω Resolution 0.001Ω Audible Visual Alarm Function
ItemPackageDimensions_Height : 17 centimeters
ItemPackageDimensions_Length : 23 centimeters
ItemPackageDimensions_Width : 22 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : ground-resistance-meters
Manufacturer : YFYIQI
Material : ABS
MeasurementAccuracy : Resolution 0.001Ω
ModelNumber : 2023021605
NumberOfItems : 1
PartNumber : 2023021605
PowerSourceType : Battery Powered
ProductDescription : YFYIQI Non-Contact Earth Resistance Online Detector Tester Meter Ground Resistance Meter Online Ground Tester Instrument with Range 0.010Ω To 200Ω Resolution 0.001Ω Audible Visual Alarm Function

Technical Specifications

❤Power Supply: DC 6V～9V，50mA Max.（External power supply）

❤Grounding Cable Perforation Size: 60mm×30mm closed mode (60mm×4mm steel flat or external diameterФ30mm electric cable)

❤Range: 0.010Ω～200Ω

❤Resolution: 0.001Ω

❤Accuracy: ±2%rdg±3dgt （20±5）℃，below 70%RH

❤Auto Power-off: No

❤Power consumption: ≤50mA

❤Working environment: -20℃~55℃；20%rh~90%rh

❤Store the environment: -20℃~60℃；below 90%rh

❤Explosion mark: Ex ia ⅡB T3 Ga

❤Protection Level: IP56

❤Communication method:
Wire network：RS232、RS485(support MODBUS-RTU communication protocol);
Wireless network：RS485(support MODBUS-RTU communication protocol) or GPRS communication (Optional)

❤Data Display: System software display

❤Alarm Indication: System software alarm indication

❤Alarm Setting: System software setting

❤Single Measurement Time: 0.5 second/time

❤Shift: Automatic shift

❤External Magnetic Field: ＜40A/m

❤External Electric Field: ＜1V/m

❤GND Interference Current: avoid

❤Protection Level: PCB,Sensor completely seal

❤Power and Communication Cable: 1M/PCS(5 core wire)

❤Mounting Screw Hole Size: Φ8mm

❤Installation: Grounding cable through detector centre bore

❤Installation Requirements: Avoid rain and water logging White--- shield ground (power input ground can connects with Shield ground by short circuit)

❤Detector weight: 960g

❤Detector Dimensions: 175mm×170mm×130mm
ProductSiteLaunchDate : 2023-02-15T08:00:00.000Z
Size : MEDIUM
