Specification
BatteriesRequired : 1
Brand : RuoShui
BulletPoint1 : VICTOR 4106, 3-pole method, 4-pole method Measuring range: 0.02Ω～1999Ω Minimum resolution: 0.01 Ω
BulletPoint2 : Large LCD display with white LED backlight.
BulletPoint3 : Easy man-machine operation, portable, solid and suitable for field use
BulletPoint4 : Automatic range detection in earth resistance measurement.
BulletPoint5 : RK resistance test; Earth comparison test function
Color : Orange
IncludedComponents : RUOSHUI 4106

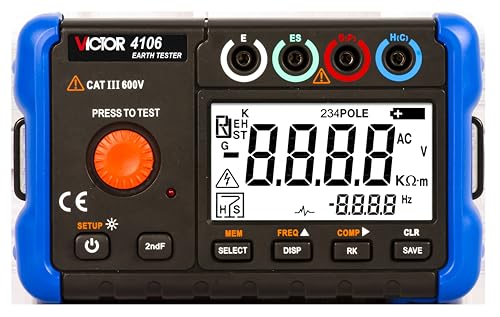

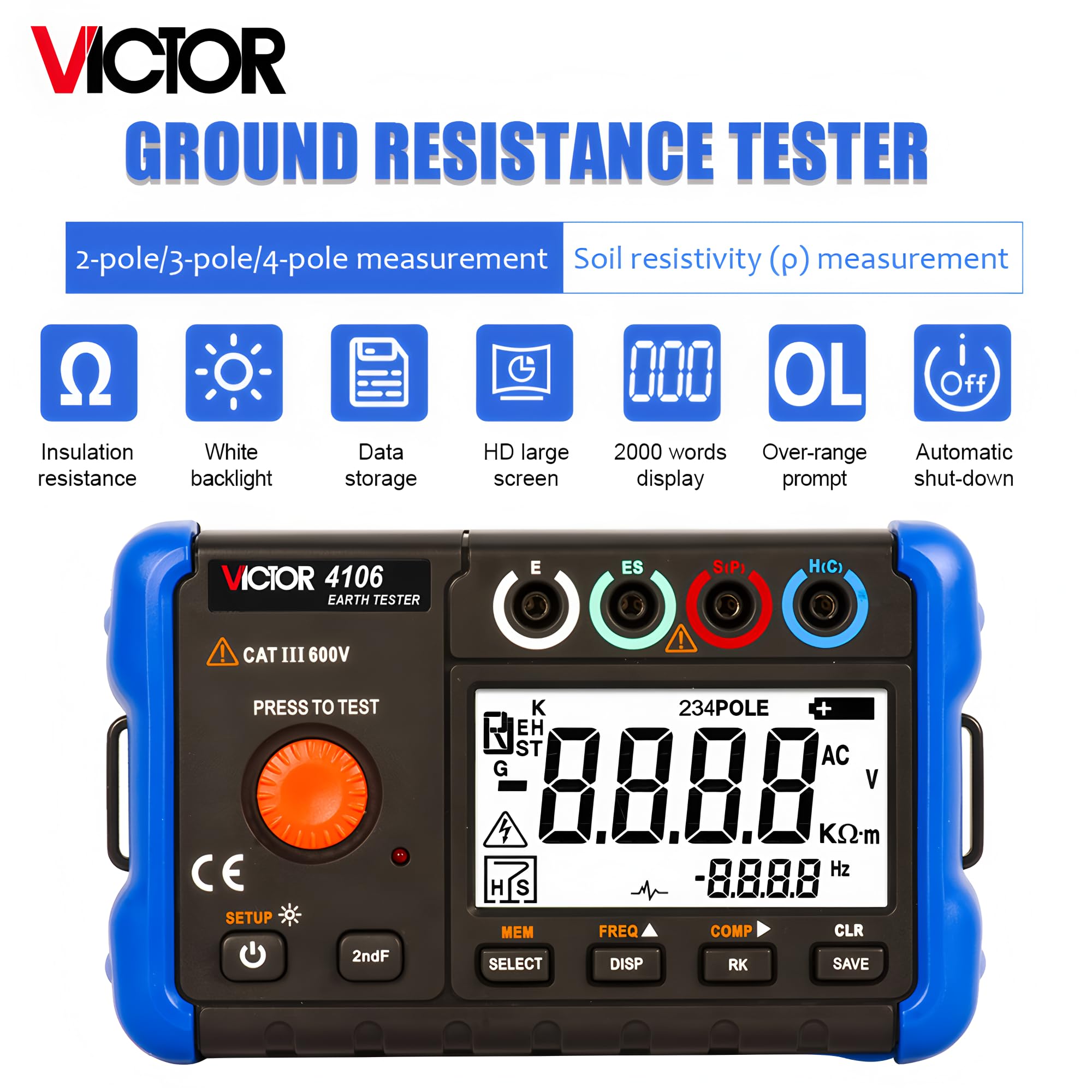

ItemName : RUOSHUI Ohm Meters 4106 Earth ResistanceTester 2 pole 3poles 4 poles method Voltage 20V Current 20mA Frequency Soil resistivity measurement(RUOSHUI 4106)
ItemPackageDimensions_Height : 18 centimeters
ItemPackageDimensions_Length : 20 centimeters
ItemPackageDimensions_Width : 25 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : ground-resistance-meters
LowerTemperatureRating : -20 degrees_celsius
Manufacturer : Xi'an Beicheng Electronics Co.Ltd(RUOSHUI)
Material : acrylonitrile_butadiene_styrene
MeasurementAccuracy : 0.1%
ModelNumber : EO-RUOSHUI 4106
NumberOfItems : 1
PackageLevel : unit
PartNumber : EO-RUOSHUI 4106
PowerSourceType : Battery Powered
ProductDescription : RUOSHUI 4106A 4016 Earth Resistance Tester 3-Pole 4-Pole Method Measurement AC True RMS Large LCD Display With LED Backlight Basic features of the product

Basic measurement functions
Earth resistance measurement (RE)
Measurement method: 3-pole method, 4-pole method
Measuring range: 0.02Ω～1999Ω
Minimum resolution: 0.01 Ω
Basic accuracy: 5%
Soil resistivity measurement (ρ)
Measurement range: 0.01Ω·m～376.8KΩ·m
Interval of auxiliary earth rods, setting range: 1.0 m ~ 30.0 m.
AC true RMS voltage E.V
Measurement range: 0~50V
AC bandwidth: 40Hz ~ 200Hz
Measurement basic accuracy: 2%
Earth test other features

Earth resistance measurement adopts square wave excitation test, the maximum open-circuit voltage is 50Vp-p, and the short-circuit current is <3mA.
Automatic range detection in earth resistance measurement.
RK resistance test, the line resistance effect can be removed.
Earth comparison test, the measurement result can be evaluated by the preset "pass/fail (✓ / ✘)" limit and be given audio alarms accordingly.
General features of the product

Operating temperature and humidity
Rated transient overvoltage:6K (1.2*50us) I, II, III measurement peak value
Withstand voltage:AC8320V(50/60Hz)/5 seconds (between the circuit and the outer box)
Insulation impedance:1000MΩ or greater/DC1000V (between the circuit and the outer box)
Vibration and shock:Randomness 2g, 5 to 500Hz 1m drop test
Calibration period and warm-up time
To ensure the accuracy of this table, the calibration period is one year or other
The warm-up time after turned on is 10 minutes or other
Power supply:Powered by 8 x 1.5 V LR6(AA) alkaline batteries
15V power adapter power supply
Automatic shutdown operation: automatic shutdown time 0~90 minutes can be set
Size and weight:178 × 110 × 59 (mm), about 600g (including batteries)
ProductSiteLaunchDate : 2025-03-30T09:47:11.192Z
SpecificationMet1 : CE
SpecificationMet2 : RoHS
SpecificationMet3 : UL
Style : Earth Resistance Ground Tester
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 41113600
UpperTemperatureRating : 60 degrees_celsius
Wattage : 5 watts
