Specification
BatteriesRequired : 1
Brand : Graigar
BulletPoint : Test & Measurement
BulletPoint1 : Function：Two or three wire measuring ground resistance Soil resistivity, grounding voltage measurement
BulletPoint2 : Resistance range：0.00~30.00kΩ automatic shifting
BulletPoint3 : Soil resistivity：0.00Ωm~9999kΩm automatic shifting
BulletPoint4 : Grounding voltage：0.00V～600V
BulletPoint5 : Operating voltage：below AC 600V
Color : Black
ExternallyAssignedProductIdentifier1 : 0707457447616
ExternallyAssignedProductIdentifier2 : 707457447616
IncludedComponents : \

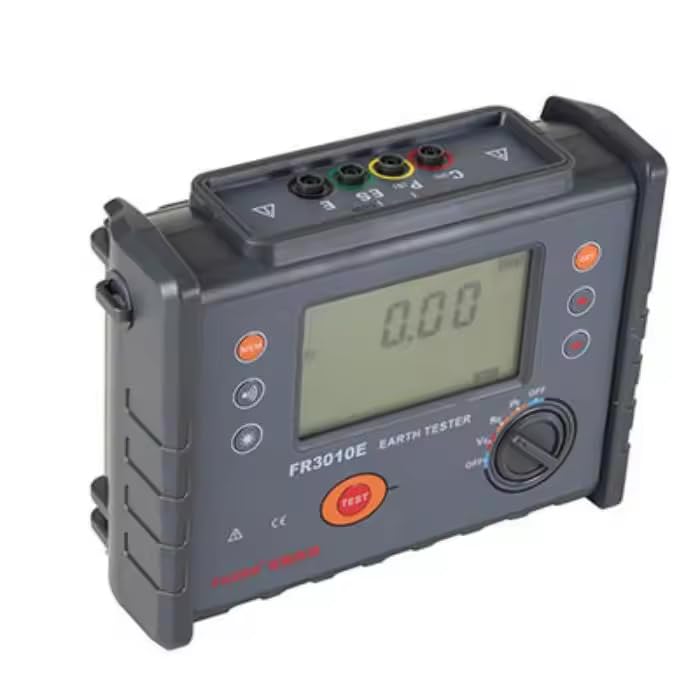

ItemName : FR3010E 0.00ohm~30kohm-m Ground Resistance Soil Resistivity Tester Measure Voltage Soil resistivity
ItemPackageDimensions_Height : 1.29 inches
ItemPackageDimensions_Length : 4.72 inches
ItemPackageDimensions_Width : 2.76 inches
ItemPackageQuantity : 1
ItemTypeKeyword : ground-resistance-meters
Manufacturer : Graigar
Material : plastic
MeasurementAccuracy : \
ModelName : WALFRONT69age4xd35
ModelNumber : FR3010E
NumberOfItems : 1
PartNumber : /
PowerSourceType : Battery Powered
ProductDescription :

Product Description

The FR3010E grounded resistance soil resistivity tester, also called the four-wire grounding resistance tester or the soil resistivity tester, is a commonly used instrument for measuring grounding resistance. It used a large-size LCD gray-white screen backlight display and microprocessor technology to pass the micrometer, to use microprocessor control 2-wire, 3-wire, 4-wire to test ground resistance and soil resistivity. The FR3010E has many grounding test functions to quickly and comprehensively measure various parameters in the grounded network. It is a new generation grounding measurement instrument that replaces the traditional rocking table measurement. Widely used in telecommunications, electricity, meteorology, computer rooms, oil fields, power distribution lines, iron tower transmission lines, gas stations, factory grounding networks, lightning rods and so on. The instrument has the characteristics of precise, fast, simple, stable and reliable

Technical Data

FunctionUse 2-wire、3-wire、4-wire test ground resistance、soil resistivity、ground voltage

Power Supply1.5V (LR14) Alkaline Battery 6 Section

RangeGround resistance :0.00Ω-30.00kΩ ; Resolution: 0.01Ω; Accuracy: ±2%rdg±5dgt

Soil resistivity:0.00Ωm-9999kΩm; Resolution:0.01Ωm; Accuracy: p=2πaR

Ground voltage:0.00V-600V AC ; Resolution:0.01V; Accuracy: ±2%rdg±3dgt

Measurement ModePrecise four-wire、three-wire measurement, simple two-wire measurement test ground resistance

Measurement MethodGrounding resistance: rated current change pole method, test current 20mA Max Soil resistivity: quadrupole; Ground voltage:average value rectification(S-ES interface)

Short Circuit Test CurrentAC 20mA Max

Open Circuit Test VoltageAC 28V Max

Test Voltage WaveformSine wave, frequency: 128Hz

Electrode Spacing Rangecan be set to 1m~100m

ShiftAutomatic

LCD Display Field108mm×65mm, with backlight, suitable to use in dim places

Meter DimensionL/W/H: 240mm×188mmx85mm

Standard Test Line6 strips: Red 15m, Black 15m, Yellow 10m, Green 10m, Yellow 1.5m, Green 1.5m each 1 strip

Auxiliary Grounding Rod4 roots

Measure TimeGround voltage: about 2times/second; Grounding resistance、Soil resistivity: about 7seconds/ time

Ground VoltageTest below AC 600V(ground voltage measurement function cannot be used to measure commercial power)

Data Storage500 groups, "MEM" storage instruction, "FULL" symbol indicates that storage is full

Overflow DisplayExceed measurement range overflow function: “OL ” symbol display

Alarm FunctionAlarm when the measured value exceeds the alarm setting value

Automatic shut-down"APO" instruction, automatic shutdown after 15 minutes boot

Power ConsumptionStandby 40 mA Max (backlight off), turn on backlight: 43 mA Max, measure: 120 mA Max (backlight off)

WeightInstrument: 1280g (including battery), test line: 890g (including simple test line), auxiliary grounding rod 720g (4 roots)

Working Temperature and Humidity-10°C~40C; below 80% rh

Overload ProtectionGrounding resistance: AC280V/3 seconds between E-H and E-S ports

Insulation ResistanceAbove 20MΩ (500V between circuit and case)

Pressure ResistanceAC 3700V/rms(between circuit and outside)

Electromagnetic PropertiesIEC61326(EMC)

Suitable for Safety RegulationsEC61010-031, IEC61557-2-31(ground resistance), IEC61557-5(soil resistivity); JJG 366-2004.
