Specification
Brand : Baomain
BulletPoint1 : Rate: 20Amp 125VAC, 60Hz
BulletPoint2 : Tamper Resistant (TR)
BulletPoint3 : Wire: Back&Side Wire
BulletPoint4 : Switch: 120-277VAC 20A, Single pole
BulletPoint5 : Switch Size: 105 x 43 x 40mm / 4.1 x 1.7 x 1.57‘’, 115 x 70mm / 4.5 x 2.7''(Plate)
BulletPoint6 : Package Includes: 50 x Outlet, 50 x Wall plate, Accessories
Color : White
CompatibleDevices : Home Application
ConnectorType : Plug-In
IncludedComponents : Outlet ,Connector,screw

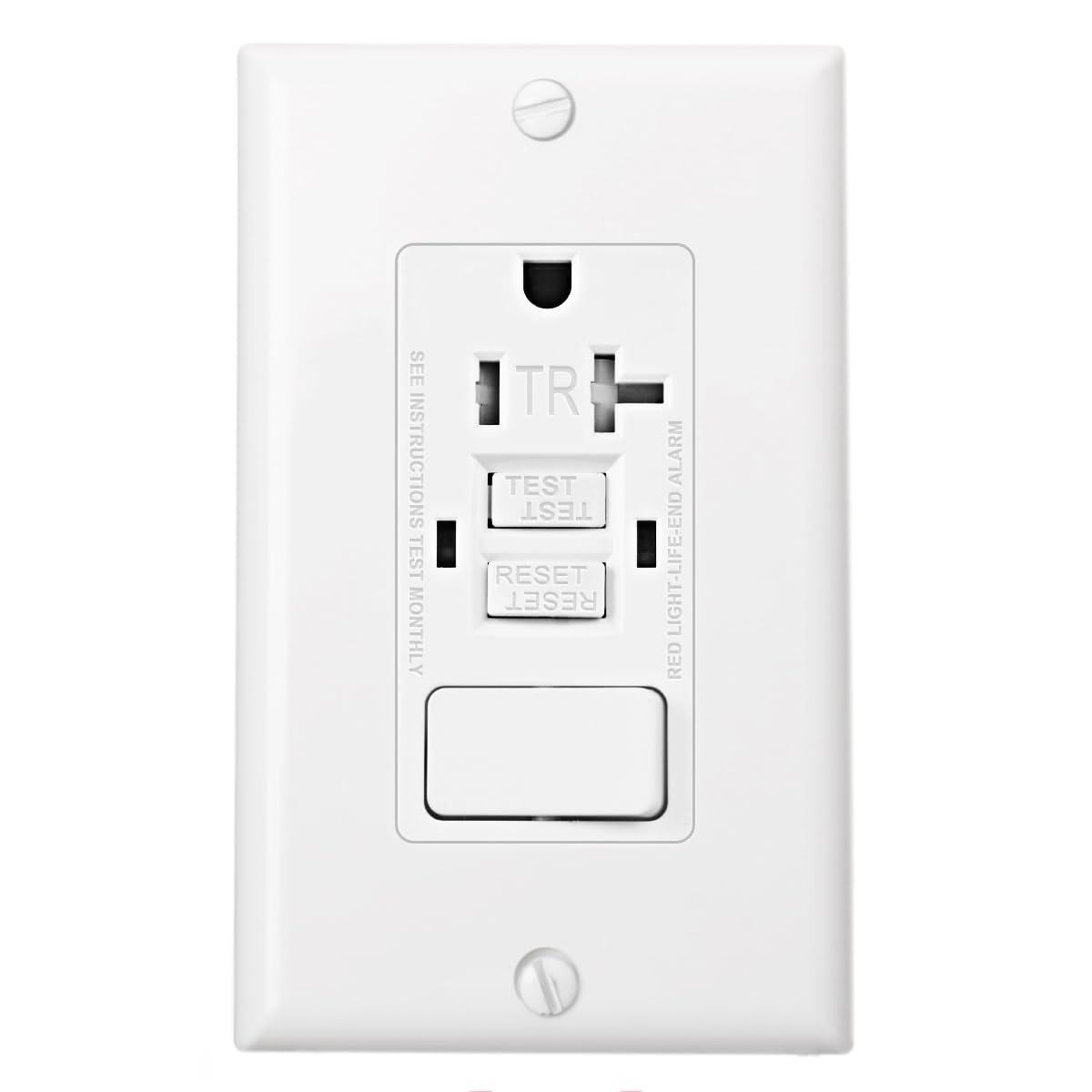

ItemName : Baomain GFCI Outlet with Switch, 20A 125VAC 60Hz, Tamper Resistant GFCI Receptacle, BAA-002 ETL Listed, White (50)
ItemPackageDimensions_Height : 4.5 inches
ItemPackageDimensions_Length : 19.5 inches
ItemPackageDimensions_Width : 27.5 inches
ItemPackageQuantity : 1
ItemTypeKeyword : ground-fault-circuit-interrupter-outlets
Manufacturer : BAOMAIN
Material : Plastic
MetalType : no metal type
ModelNumber : BAA-002-TR
NumberOfItems : 50
PartNumber : BAA-002-TR
ProductDescription :

Tamper resistant

Rated Voltage: 125V

Rated Current: 20A

Switch Operation Mode: ON-OFF

Application: Residential/General-Purpose

Electrical Characteristics: AC125V/20A

Unloaded plug≥5000Sec Loop detection with automatic monitoring function

Housing material flame retardant grades

Tripping threshold:5mA Tripping time<25ms

Surge current:6000V/3000A 6000V/10KA

Electric strength:Pressure resistance1500V 50Hz Duration 1Min

Insulation resistance:>50MΩ(DC500V)

Short-circuit current:10KA

Insert and Draw Frequency>10000 times

Temperature,humidity:-35℃ ~ +66℃; 20% ~ 90%

Storage Temperature,Humidity: -20℃ ~ +85℃; 10% ~ 95%RH

Safelock function, the reset button will not engage if protection has been compromised
The outlet with switch can be wired to protect all receptacles downstream on the same circuit.
Shutter mechanism inside the receptacle blocks access to the contacts unless a 2 prong plug is inserted, helping to ensure foreign objects will be locked out.
Self-Test Function – GFCI conducts automatic self-test, The Red Light will be blinking every 30 Seconds to make sure it can respond to a ground fault.

Suitable for residential areas such as garages, bathrooms, kitchens,and most commercial areas that require ,such as offices, schools, retail stores, restaurants, public facilities, hotels,Etc.
ProductSiteLaunchDate : 2023-12-07T16:00:00.000Z
Size : 16 gears
SpecificationMet : ETL
Style : 1Pack
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
TotalPowerOutlets : 1
UnitCount : 1
Voltage : 125 volts
