Specification
Brand : Jienk
BulletPoint : Achieve secure connections with DMNI premium insulated splice for electrical safety. Our versatile and durable splice is the solution for all your connection needs. Experience the confidence of safety and reliability in one splice. Elevate your projects with professional-grade electrical security. Shield against moisture and corrosion with our high-quality insulation. Enjoy effortless DIY installation for indoor and outdoor applications. Count on us as your trusted splice solution for every scenario.
BulletPoint1 : IDC pin pitch 2.54mm/0.1" male header connector. Standard IDC64 pitch 0.1" header, you can use 64pin FRC(flat ribbon cable) connector cable connect all Arduino Uno pins to peripheral equipment.
BulletPoint2 : Din rail mountable - for DIN C45 width 35 / 32 / 15mm rails, Din mount case can be taken apart for panel mount use.
BulletPoint3 : Wire range: 26-16AWG. Rated voltage: 60V. Rated current: 1A / per pin. Operating temperature: -20 to 50 Celsius.
BulletPoint4 : The screw connectors make attaching and removing wires easily. Really helpful in your DIY prototyping project.
BulletPoint5 : Widely Applications: It is well-suited for interfacing with I/O cards, data acquisition (DAQ) equipment, and any other device that uses a 2x32 64-position header connector. Applications include the Raspberry Pi A+, B+, 2B, and 3B boards, all of which use a 0.1" pitch 2x32 I/O pin header for their GPIO expansion ports.
Color : Black
ConnectorType : Screw
CurrentRating : 1 amps
ExternallyAssignedProductIdentifier : 00850057257137
ExternallyAssignedProductIdentifier1 : 0759357403940
ExternallyAssignedProductIdentifier2 : 759357403940
IncludedComponents : IDC connector

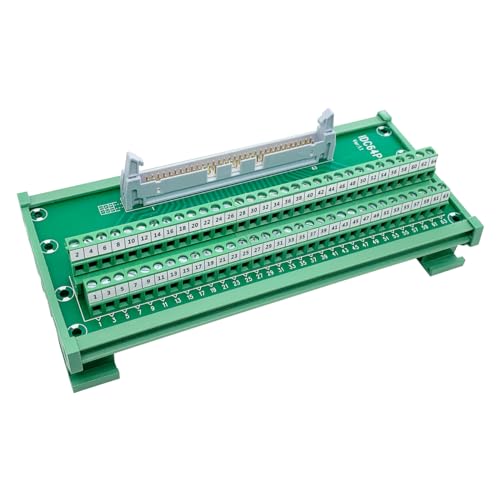

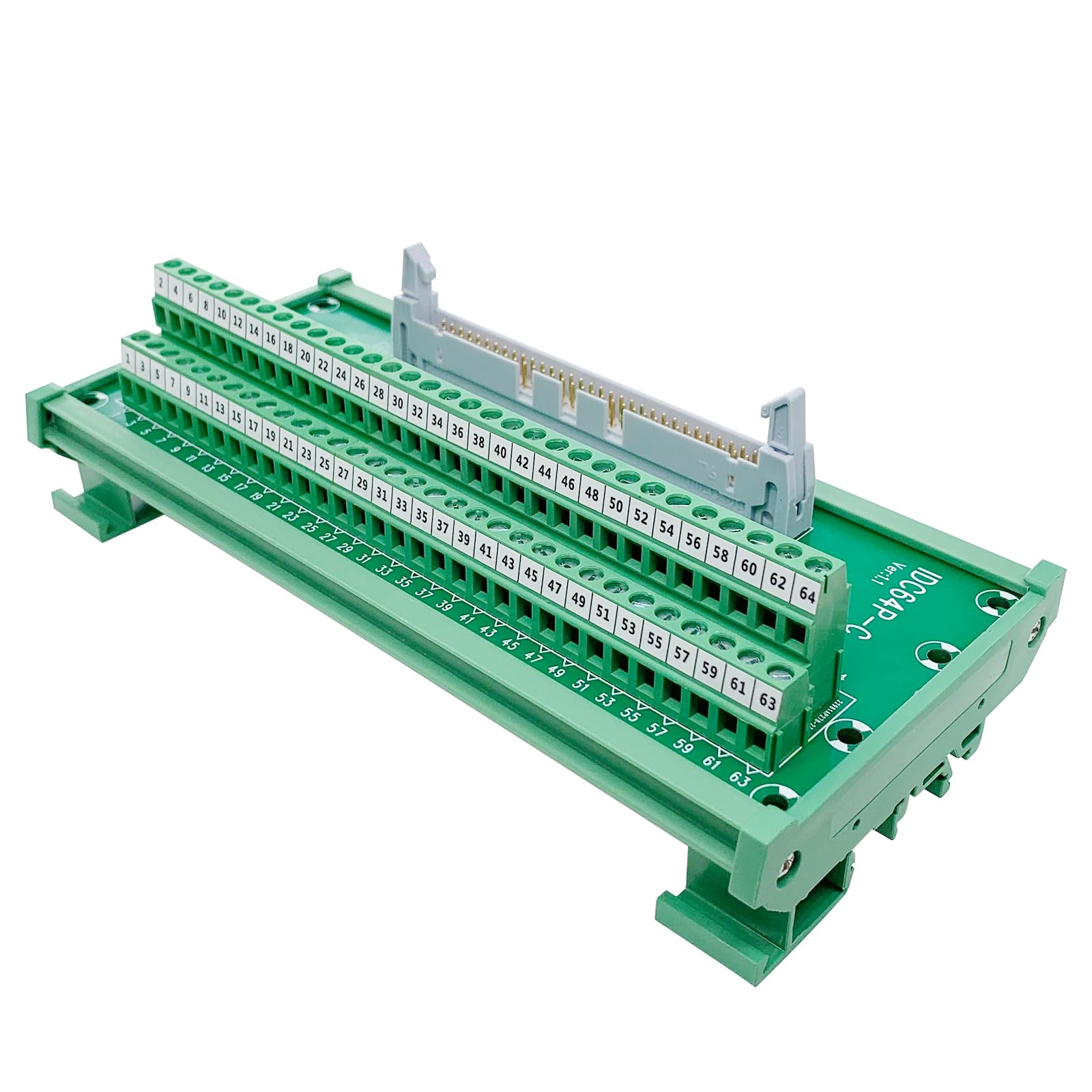

ItemName : Jienk IDC64 2x32 64Pins 0.1" FRC Connector Male Header DIN Rail Mounting Terminal Block Breakout Board for PLC MCU Flat Ribbon Cable
ItemPackageDimensions_Height : 20.4978 centimeters
ItemPackageDimensions_Length : 6.5024 centimeters
ItemPackageDimensions_Width : 9.8044 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : ground-circuit-terminal-blocks
Manufacturer : Jienk
Material : Brass
Material1 : Plastic
Material2 : Copper
Material3 : Brass
MeasurementSystem : Inch
ModelNumber : mea210621ee0186
MountingType : din_rail
MountingType1 : surface
MountingType2 : din_rail
NumberOfContacts : 64
NumberOfItems : 1
NumberOfLevels : 1
NumberOfPoles : 2
NumberOfPositions : 2
NumberOfPositions1 : 10
NumberOfPositions2 : 5
OperatingVoltage : 600 volts
PartNumber : JT638
ProductDescription : Specifications:
IDC pin pitch 2.54mm/0.1" male header connector.
Pitch 3.81mm/0.15" screw terminal block.
DIN Adapters (brackets): for width 35 / 32 / 15mm DIN rails.
FR-4 fiber glass PCB, dual copper layers.
Rated voltage: 60V.
Rated current: 1A / per pin.
Operating Temperature: -20ºC to 50ºC
Terminal block specifications:
Wire range: 26-16AWG.
Strip length: 5mm.
Screws: M2,steel,Cr3+ Zn plated.
Torque: 0.2Nm (1.7Lb-In.)
Pin header and Cage: Brass.
Package Content:
1PCS IDC64 2x32 Pins 0.1" Male Header Breakout Board
ProductSiteLaunchDate : 2024-01-15T08:12:47.797Z
Size : 8 Positions
SpecificationMet : cULus
StudSize : #2
Style : 20A
SupplierDeclaredDgHzRegulation : not_applicable
TerminalType : Screw Terminal
UnitCount : 10
UpperTemperatureRating : 50 degrees_celsius
Voltage : 60 volts
