Specification
Brand : ATO.COM
BulletPoint1 : Hydraulic single gear pump uses high-strength aluminum alloy shell and alloy steel hard gear transmission, which is light in weight and stable in transmission.
BulletPoint2 : Hydraulic single gear pump is suitable for SAE standard flange installation. The input shaft connection form is flat key shaft. Connection type of the oil inlet and outlet ports is threaded.
BulletPoint3 : Hydraulic single gear pump has an automatic compensation mechanism for axial and radial clearances, which enables the oil pump to maintain high volumetric efficiency and high mechanical efficiency for a long time.
BulletPoint4 : Hydraulic single gear pump uses SP gears, with small fluctuation, high pressure, low noise and stable performance.
BulletPoint5 : DU composite material bearings and high-performance sealing elements, small starting torque, good sealing performance, and strong anti-fouling ability, so that hydraulic single gear pump can work efficiently under harsh working conditions.
Color : One Color
ExternallyAssignedProductIdentifier : 6402465420630

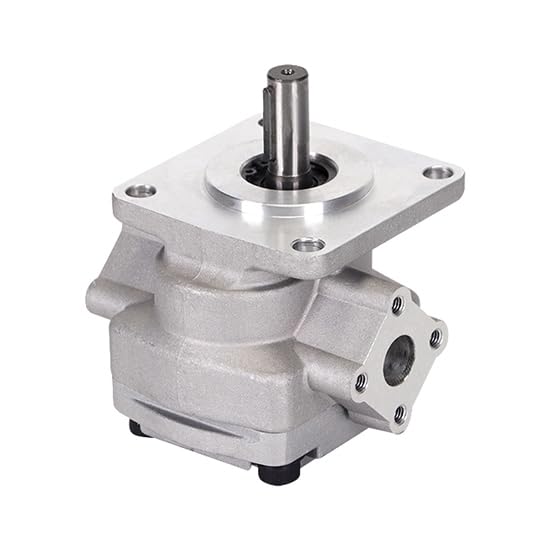

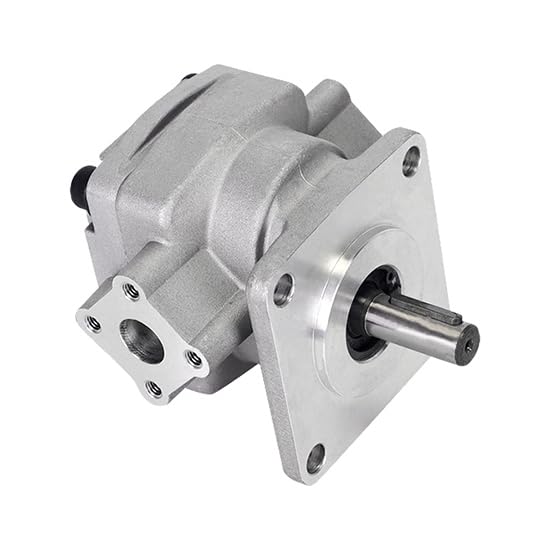

ItemName : ATO Hydraulic Gear Pump,6.3 GPM Hydraulic Single Gear Pump, 3600 psi, Oil External Gear Pump, Mounting Flange JIS 4-Bolt, Counterclockwise Rotary
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-gear-pumps
Manufacturer : ATO
Material : metal
ModelName : ZAWUDVC
ModelNumber : ZAWUDVC
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : ATO-HGPP-4567-10
ProductDescription :

hydraulic single gear pump for sale. Displacement 1/2/4/5 Max. GPM for selection, rated pressure 3000 psi, maximum pressure 3600 psi, rated speed 1800 rpm, max speed 4300 rpm, volumetric efficiency 88%, mechanical efficiency 85%, oil inlet/outlet port PT 3/8” thread, optional clockwise or counterclockwise rotary, SAE 2-bolt mounted.

Tips: Commonly used calculation formula of hydraulic single gear pump.

Motor power：W = P × q × n/54000 (kW)
P = gear pump working pressure (MPa)
Q = gear pump displacement (GPM)
n = motor speed (rpm)

Gear pump torque: T = P × q/1.7π（N.m）

Motor torque: T = 9550 × W/n.

Oil hose inner diameter matching: oil suction pipe inner diameter d = (0.12～0.18) × q × n
q = gear pump displacement (GPM)
n = motor speed (rpm)

Note: tubing inner diameter d = (0.06～0.09) × q × n

Oil return pipe inner diameter d = (0.09～0.12) × q × n

Flow calculation: flow L = π × d2h/4000t (GPM)

Piston rod diameter d (mm), piston rod stroke h (mm), working time t (s), displacement: q = 60 × L/n (ml/r)

ProductSiteLaunchDate : 2024-08-05T06:25:12.311Z
Size : 6.3GPM
Style : Counterclockwise rotary
UnitCount : 1
UnspscCode : 40151500
