Specification
Brand : AF
BulletPoint : Float Valves
BulletPoint1 : Gate valve to block fluid movement in a pipeline.
BulletPoint2 : Ability to withstand pressure up to 150 PSI and working temperature of -29°C to 150°C. ASME B16.10 design with ASME B16.5 RF Flanged end design
BulletPoint3 : Resistance against corrosion and temperature resistance as gate valve is made of Forged Steel A015 material.
BulletPoint4 : Ability to avoid water hammer effect as the wheel handle needs to be rotated several times. This operation slowly reduces the velocity of the fluid movement.
BulletPoint5 : 2 ANSI 150# Flanged End connections.
Color : 24VDC
Department : Unisex Adult
ExteriorFinish : Steel
ExternallyAssignedProductIdentifier : 8886481773662

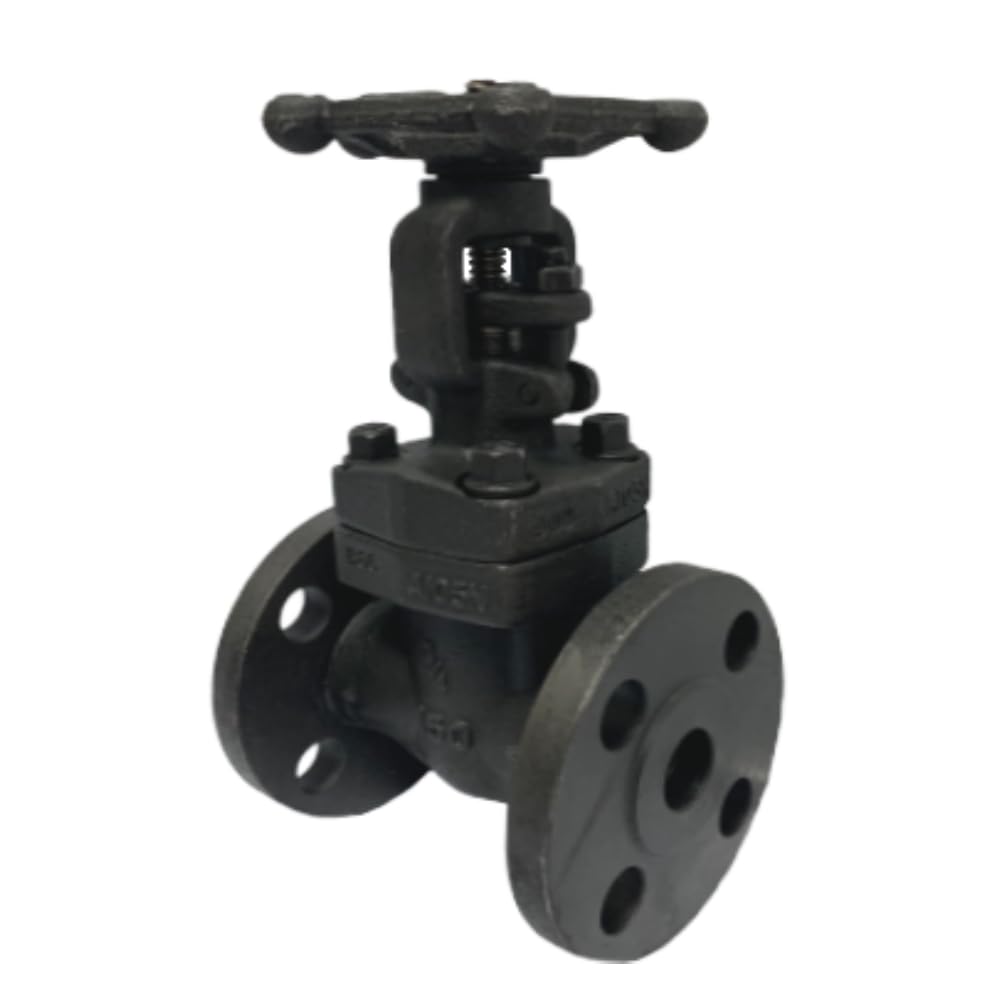

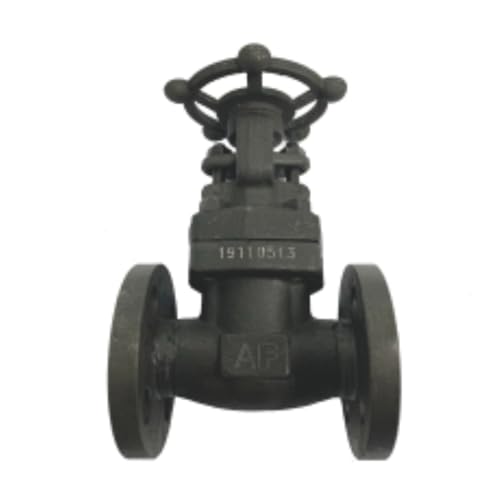

ItemName : AF Hydro Forged Steel A105 Gate Valve, 3/4" ANSI 150# Connection, up to 150 PSI, Raised Face, Rising SS410 Stem, Handwheel Operated Valve for General WOG
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-gate-valves
Manufacturer : AF
Material : Steel
MaximumOperatingPressure : 150 pounds_per_square_inch
ModelName : ZVOYPGHO
ModelNumber : ZVOYPGHO
NumberOfItems : 1
PartNumber : VL-GA-H-F-150-12
ProductDescription : A gate valve is utilized to obstruct the movement of fluid within a system. It is categorized as a valve with linear motion and is unsuitable for controlling or regulating fluid flow due to its limitations in achieving flow control. If employed for fluid control and regulation, the gate valve's seating surface and disc may be subject to erosion. Operating a gate valve necessitates a small amount of space along the pipeline. The gate valve is designed to be either fully open or fully closed. It consists of various components, including the body, seat, stem, bonnet, wedge, gasket, and hand wheel. The central disc of the gate valve obstructs fluid flow and can be raised or lowered by rotating the wheel handle. This rotation can be performed in a clockwise direction to open or close the valve. By requiring multiple rotations of the handle between the open and closed positions, the gate valve helps prevent water hammer effects. Furthermore, the velocity at which the fluid travels through the valve can be adjusted gradually. This gate valve is made of Forged Steel A105 material and it commonly used due to its strength and simplicity. This type of gate valve is suitable for various fluids. However, the disc design is prone to leakage. It is suitable for medium to low pressure temperature application. This gate valve can withstand working pressure up to 150 PSI and working temperature of -29°C to 150°C. Conform to ASME B16.10 design with ASME B16.5 RF Flanged end design. This gate valve comes with 2 ANSI 150# Flange Ends.
ProductSiteLaunchDate : 2023-05-30T04:40:44.798Z
Size : 0.75 Inch
UnitCount : 1
UnspscCode : 40141600
