Specification
Brand : Across International
BulletPoint1 : 208-240VAC, 50/60 Hz, single phase
BulletPoint2 : Minimum working temperature 300°C (572°F)
BulletPoint3 : Max working Temp -1750°C for less than 5 hours
* 2 hours maximum continuous run time at maximum temperature

BulletPoint4 : Constant working temperature 1700C
BulletPoint5 : Compliance ETL tested to UL and CSA standards (optional), CE
Capacity : 1.9 cubic_feet
Color : White
ControlMethod : touch
ControlType : Knob
ExternallyAssignedProductIdentifier : 00850566007872
FinishType : Polished
IsAssemblyRequired : 1

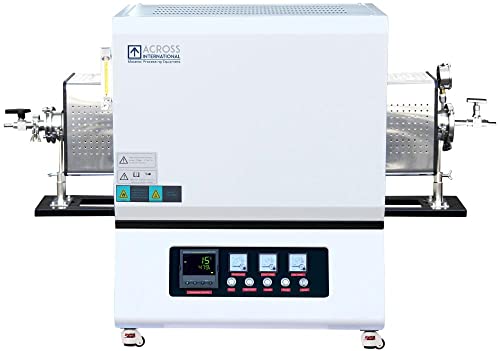

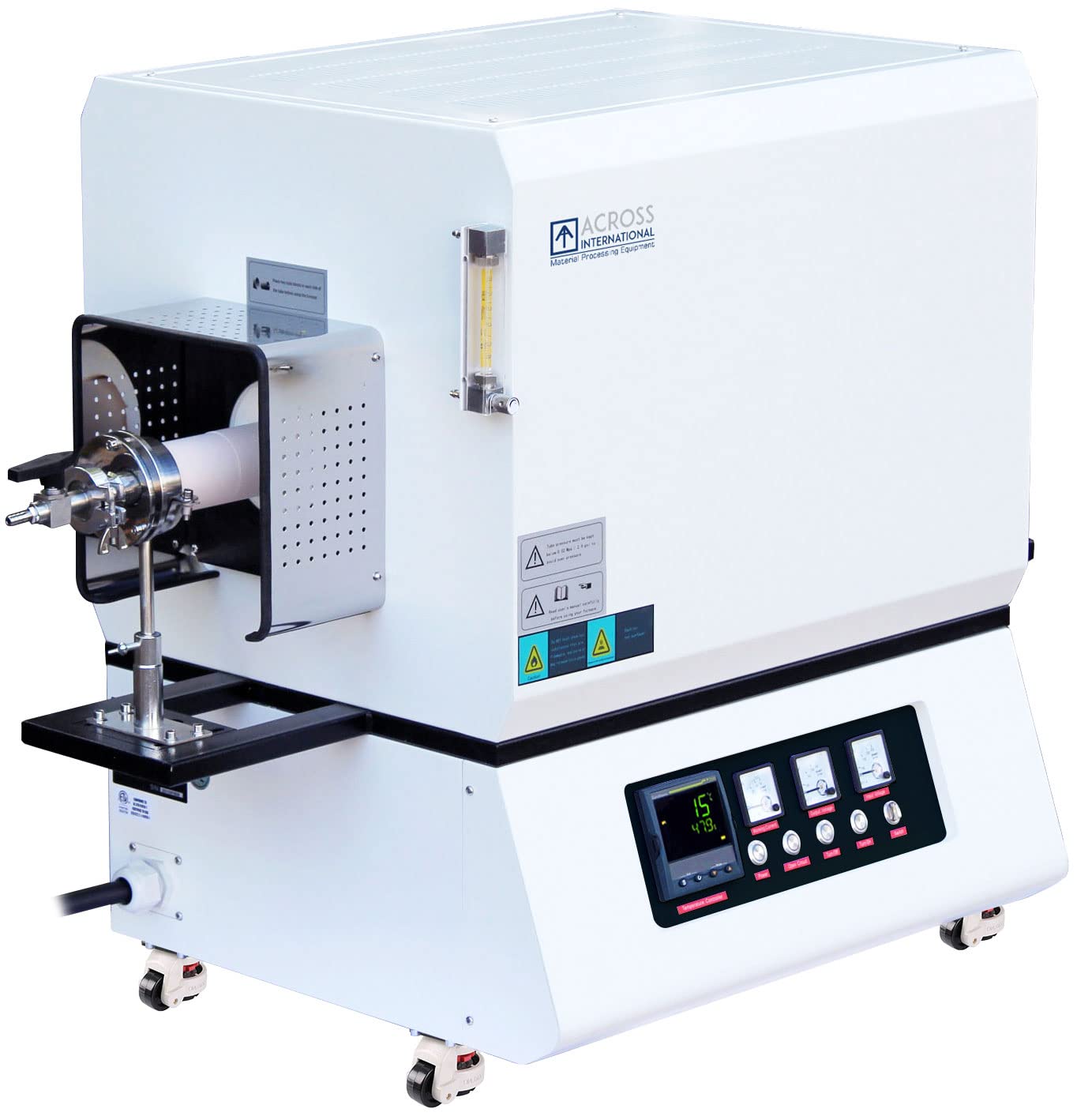

ItemName : 1750C 1-Zone 80mm OD Tube Furnace W/Eurotherm Controller UL/CSA Certified 1 year warranty
ItemPackageDimensions_Height : 51 inches
ItemPackageDimensions_Length : 24 inches
ItemPackageDimensions_Width : 36 inches
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-furnaces
Material : Stainless Steel
ModelName : TF1750.80
ModelNumber : TF1750.80
PartNumber : TF1750.80
ProductDescription : TF1750 series Tube furnaces feature a chamber with Mitsubishi (Japan) high quality 1900 grade alumina fiber insulation and molybdenum silicide heating elements. A double walled steel internal housing helps minimize heat loss to exterior surface.
Furnace operation is controlled by Eurotherm (UK) digital multi-segment controller with built-in digital communication port, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results..
These furnaces have built-in interface to a computer. We provide connection cable, adaptor and software that can be used to control the temperature and parameters of the furnace, all from your PC! You can also save a temperature curve for record or study purposes.

Features
* Compact, portable and lightweight design.
* Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
* Dual flanges support ensures better sealing and longer tube life.
* Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
* Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
* Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
* Built-in computer interface.
* Long life type B thermocouple.
* Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
* Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.

ProductSiteLaunchDate : 2012-10-27T02:58:38.000Z
SafetyDataSheetUrl : https://www.acrossinternational.com/500c-1-9-cf-vacuum-oven-5-sided-heat-sst-tubing.html
Wattage : 3000 watts
