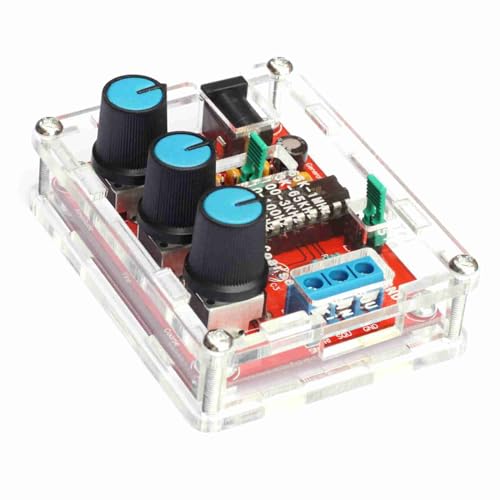

XR2206 High Resolution Function Generator, Sine Square, 1Hz 1MHz, Adjustable Frequency Amplitude, DIY Kit with for Welding and Installation (DIY Kit)

Customer rating 4.7 stars

Imported from USA | Ships in 10 working days

5% additional discount on UPI | Cash On Delivery available

1

₹4720 -30% ₹3300/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart.
EMI and GST Invoice available.

Product Information


Specification
Brand : Ailgely
BulletPoint1 : [Wide Frequency Range] Covers a frequency range from 1hz to 1mhz, ensuring versatility in generation for different applications.
BulletPoint2 : [Versatile Power Supply] Can operate on a wide power supply range of 9-12v external power or 9v battery (not included), ensuring flexibility in usage.
BulletPoint3 : [High Resolution] High generator capable of generating sine, , and square waveforms to meet various needs.
BulletPoint4 : [Adjustable Settings] Easily adjust both frequency and amplitude to fine-tune the output based on specific requirements.
BulletPoint5 : [Easy Installation] User-friendly design featuring through-hole components for easy welding and installation, suitable for diy enthusiasts.
Color : DIY Kit
ItemName : XR2206 High Resolution Function Generator, Sine Square, 1Hz 1MHz, Adjustable Frequency Amplitude, DIY Kit with for Welding and Installation (DIY Kit)
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemTypeKeyword : function-generators
Manufacturer : Ailgely
ModelNumber : Ailgely9aopgv1qu5-03
PartNumber : Ailgely9aopgv1qu5-03
ProductDescription : 1. High resolution, can generate sine//square waveforms.
2. Frequency range: 1Hz-1MHz.
3. Adjustable frequency and amplitude.

Spec:
This generator DIY kit is professional product to generate sine//square . It's a DIY kit for you to weld and install.
Features:
High resolution, can generate sine//square waveforms.
Frequency range: 1Hz-1MHz.
Adjustable frequency and amplitude.
Frequency adjustment features coarse tuning and fine tuning.
Wide power supply range, use 9-12V external power or 9V battery(NOT Included).
All are through hole components, easy for installation.
Specifications:
Voltage Supply: 9-12V DC Input
Waveforms: Square, Sine &
Impedance: 600 Ohm + 10%
Frequency: 1Hz-1MHz
SINE
Amplitude: 0-3V at 9V DC Input
Distortion: Less than 1% (at 1KHz)
Flatness: +0.05dB 1Hz - 100kHz
SQUARE
Amplitude: 8V (no load) at 9V DC Input
Rise Time: Less than 50ns (at 1KHz)
Fall Time: Less than 30ns (at 1KHz)
Symmetry: Less than 5% (at 1KHz)

Amplitude: 0-3V at 9V DC Input
Linearity: Less than 1% (up to 100KHz) 10mA
Package Size: Approx. 12 * 8 * 2cm / 4.72 * 3.15 * 0.8in
Package Weight: 69g / 2.46oz
Package List:
1 * Generator DIY Kit
1 * User Manual(English)

PackageList:
1 * Generator DIY Kit
1 * User Manual(English)
ProductSiteLaunchDate : 2024-11-05T08:17:29.763Z
