Specification
Brand : Reland Sun
BulletPoint1 : High resolution, can generate sine/triangle/square waveforms.
BulletPoint10 : Exquisite Waveform: Vertical resolution of waveform is optimized to 14bit, 266MSa/s sampling rate, Sine wave frequency is optimized to 0.01uHz-60MHZ, wave is 0.01uHz-15MHz, more exquisite waveform.
BulletPoint2 : Frequency range: 1Hz-1MHz.
BulletPoint3 : Frequency adjustment features coarse tuning and fine tuning.
BulletPoint4 : Wide power supply range, use 9-12V external power or 9V battery(NOT Included).

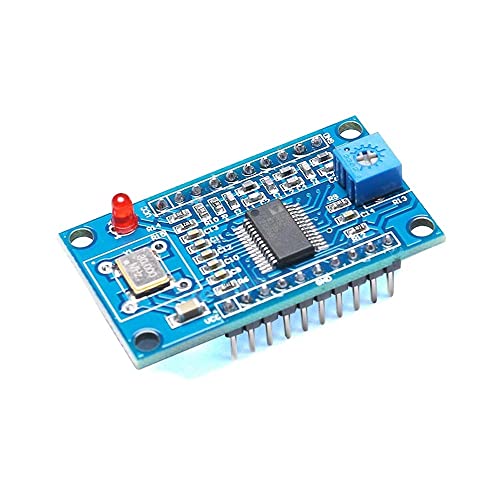

BulletPoint5 : AD9851 module uses 30MHZ active crystal oscillator.
BulletPoint6 : High Accuracy: Large scale integrated circuit and SMT technology, high reliability. Two channel phase difference adjustment is optimized to 0.1 degrees; the time delay is more accurate. Bias adjustment is optimized to -9.99V to +9.99V, more precise.
BulletPoint7 : Waveform Characteristic: Sine, Square, Triangle, Pulse (duty-cycle correction,Pulse width and cycle time adjustable), Partial Sine, CMOS, DC level, Half-wave, Full-Wave, Pos-Ladder, Neg-Ladder, Noise, Exponential Rise, Exponential Fall, Tone, sine pulse, Lorentz Pulse, and 60 kinds user defined waveform
BulletPoint8 : Good Operation Fluency: 2.4-inch high-definition color LCD screen ensures good operation fluency, lots of shortcuts greatly simplifies the operation steps. Each function has independent operating interface, Glossy switch without pause.
BulletPoint9 : Easy to Use: It can use standard PC software to control all machine functions and draw arbitrary waveform, communication protocol publicity makes secondary development very simple. It has output short circuit , all output end can work for 60s under the condition of load short circuit.
ExternallyAssignedProductIdentifier1 : 0756552862510
ExternallyAssignedProductIdentifier2 : 756552862510
ItemName : XR2206 High Precision Function Signal Generator DIY Kit Sine/Triangle/Square Output 1Hz-1MHz Adjustable Frequency Amplitude (Shell-DIY)
ItemPackageDimensions_Height : 8 centimeters
ItemPackageDimensions_Length : 22 centimeters
ItemPackageDimensions_Width : 16 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : function-generators electrical-equipment
Manufacturer : Reland Sun
MemoryClockSpeed : 70 MHz
MemorySlotsAvailable : 2
PartNumber : 756552862510
Platform : not_machine_specific
ProductDescription : Features:
High resolution, can generate sine/triangle/square waveforms.
Frequency range: 1Hz-1MHz.
Adjustable frequency and amplitude.
Frequency adjustment features coarse tuning and fine tuning.
Wide power supply range, use 9-12V external power or 9V battery(NOT Included).
All are through hole components, easy for installation.

Specifications:
Voltage Supply: 9-12V DC Input
Waveforms: Square, Sine & Triangle
Impedance: 600 Ohm + 10%
Frequency: 1Hz-1MHz
SINE WAVE
Amplitude: 0-3V at 9V DC Input
Distortion: Less than 1% (at 1KHz)
Flatness: +0.05dB 1Hz - 100kHz
SQUARE WAVE
Amplitude: 8V (no load) at 9V DC Input
Rise Time: Less than 50ns (at 1KHz)
Fall Time: Less than 30ns (at 1KHz)
Symmetry: Less than 5% (at 1KHz)
TRIANGLE WAVE
Amplitude: 0-3V at 9V DC Input
Linearity: Less than 1% (up to 100KHz) 10mA

ProductSiteLaunchDate : 2021-11-30T14:33:28.792Z
Size : Shell-DIY
SupplierDeclaredDgHzRegulation : not_applicable
SystemBusStandardSupported : SATA 2
UnitCount : 1
UnspscCode : 26111600
