Specification
Brand : Weytoll
BulletPoint1 : Using DDS algorithm, the frequency step value can be up to 0.001Hz, good frequency stability.
BulletPoint2 : This product can not only output 7.830Hz Schumann wave, but also increase the programmable frequency modulation technology, can be adjusted in the range of 0.001Hz ~ 200KHz frequency (can also be used as an ordinary programmable digital signal generator).
BulletPoint3 : Digital crystal oscillator frequency reference, more stable, more anti-interference;
BulletPoint4 : Power supply interface using DC5.5*2.1 interface, easy to use, USB terminal can be inserted into the power supply or USB charging head or other USB power supply device work.
BulletPoint5 : ❀ OTHER Feature ---- with LCD display to display frequency and duty cycle value; with case; PWM output, can set frequency and duty cycle separately by buttons; frequency value is into 4 and switched automatically, with high .
Color : As Shown
ExternallyAssignedProductIdentifier : 7657670003065
IncludedComponents : no
ItemName : Weytoll DC 5V Adjustable 0.001Hz-200KHz 7.83Hz Schumann Resonance Ultra-low Frequency Pulse Wave Generator o Resonator Sine Wave
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 14 centimeters
ItemPackageDimensions_Width : 9 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : function-generators
Manufacturer : Weytoll
Material : Electronic Component
ModelName : E25153
ModelNumber : E25153
PartNumber : TGUS-0804-USFBM
PowerSourceType : ac/dc
ProductDescription : Schumann wave itself does not directly act on the sound or video products to improve the sound quality, but acts on the space environment, can relax the human body and mind, improve the human body's ability to perceive the sound and image, improve the human body's health and work efficiency, and alleviate psychological stress. The effect is better. This product can not only output 7.830Hz Schumann wave, but also can be adjusted in the range of 0.001Hz ~ 200KHz frequency, digital circuit crystal oscillator frequency reference, more stable.

Instructions For Use:
Take out the USB cable that comes with the product, connect the round hole end with the circuit board, and plug the USB end into the power bank or USB charging head or other USB powered devices to work.
Change the frequency: directly input the frequency, press "OK" to complete the setting.

How to Change the Frequency:
Input the frequency directly and press the lower left button to complete the setting;
For example, press [7][.] [8][3], then press [OK] to set to 7.83Hz, the default power-on output is 7.83Hz, and the setting range is 0.001~200KHz.

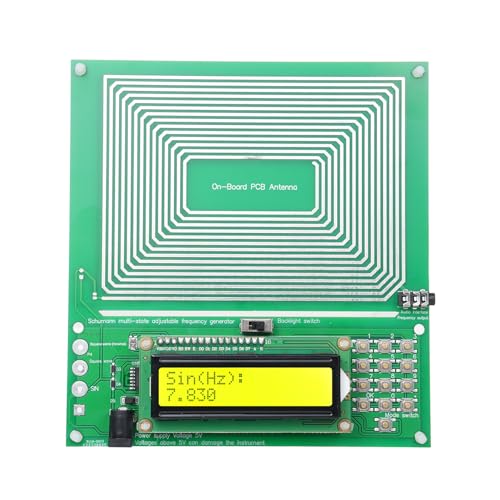

Specifications:
Material: ABS
Circuit Board Size: 14 * 15cm
Antenna Waveform: Sine wave
Interface Waveform: Sine wave + square wave + inverted square wave (the lower left corner of the output interface, while the output waveform)
Power Supply Interface: DC5.5 * 2.1
Power Supply Voltage: 5V
Rated Power Consumption: <1W
Default Frequency: 7.830Hz
Adjustment Range 0.001Hz~200KHz
Sine Signal Voltage Amplitude: 3V
Square Wave Signal Voltage Amplitude: 5V
Package Weight: 180g / 6.35oz
Package Size: 15 * 15 * 3cm / 5.91 * 5.91 * 1.18in

Package List:
1 * Schumann Wave Generator
1 * USB Cable

ProductSiteLaunchDate : 2024-07-16T12:52:20.031Z
Size : As Shown
UnitCount : 1
UnspscCode : 26111600
Voltage : 5 volts
