Specification
Brand : Siglent
BulletPoint1 : Maximum Output Frequency: 120 MHz
BulletPoint2 : Number of Channels: 2
BulletPoint3 : [High Quality] rectangle generator is brand new and high quality.This Generator is the ideal instrument for electronic engineering, laboratories, production lines, teaching and scientific research
BulletPoint4 : [Control Relative Circuit] Rectangle generator can be used to generate adjustable pulse for MCU using and control relative circuit
BulletPoint5 : [Serial Communication] This PWM rectangle generator can be serial communication
ExternallyAssignedProductIdentifier1 : 702756074228
ExternallyAssignedProductIdentifier2 : 0702756074228
ExternallyAssignedProductIdentifier3 : 00840406207791
IncludedComponents : 1 x unit
ItemName : Siglent Technologies Function and Arbitrary Waveform Generator 120 MHz 2 Channel 1.2 GSa/s
ItemPackageDimensions_Height : 4.41 inches
ItemPackageDimensions_Length : 12.6 inches
ItemPackageDimensions_Width : 10.815 inches
ItemPackageQuantity : 1
ItemTypeKeyword : function-generators
Manufacturer : Siglent Technologies
ModelNumber : SDG2122X
NumberOfBoxes : 1
NumberOfItems : 1
PackageLevel : unit
PartNumber : SDG2122X
ProductDescription :

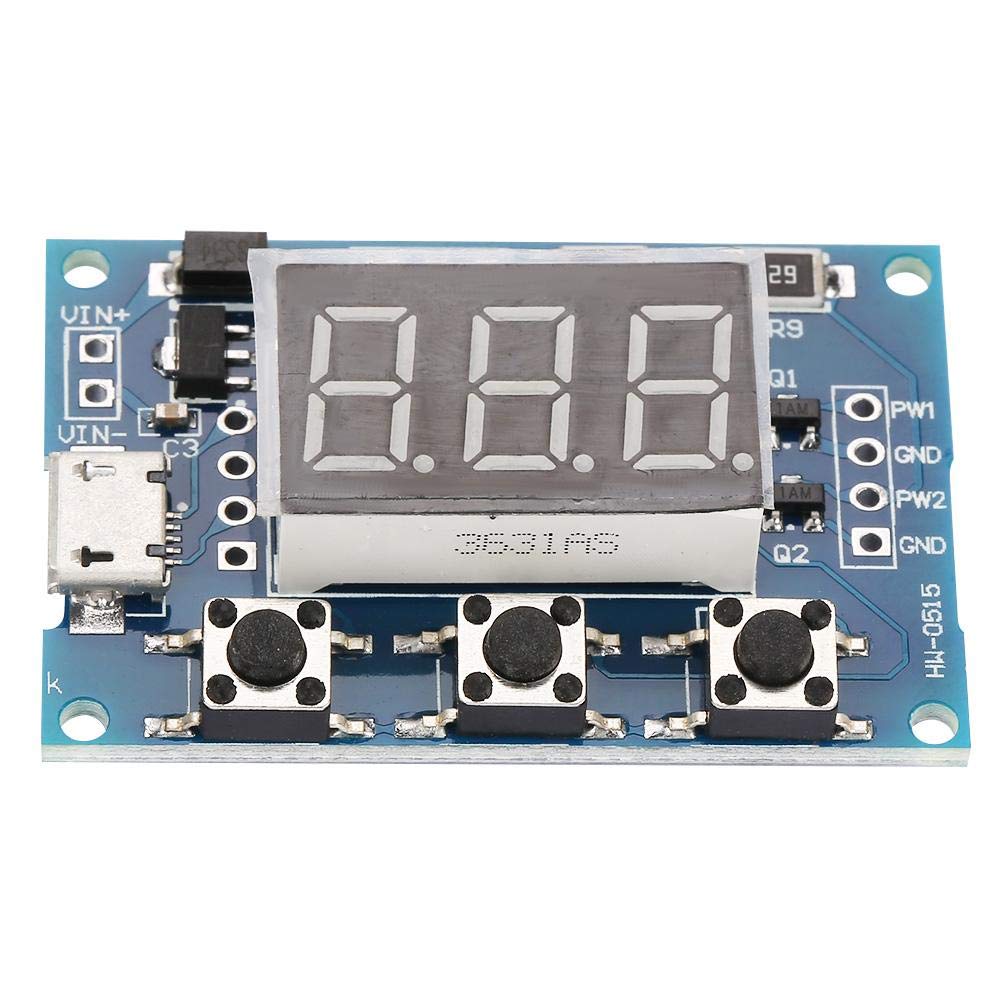

2 Channel PWM Frequency Duty Cycle Adjustable Rectangle Generator


Specification:
Condition: Brand New
Operating Voltage: 5-30V, support micro USB 5.0V power supply
Frequency Range: 1Hz-150KHz
Frequency : 2%
Load Capacity: Output Current is within 8--30mA
Output Range: default 5V V-pp (can be changed by external power)
Environment Temperature: -30 ~70?
Serial Port Control: Communication Standard:9600 bps
                              Data Bit:8
                              Stop Bit:1
                              Verify Bit:none
                                Control:none
Weight: Approx. 9g / 0.3oz    Size: Approx. 41 * 28 * 1.6mm / 1.6 * 1.1 * 0.1in


Parameter Setting:
Module has 3-channel key:Set,Up,Down
1. By short press SET key, can shift display 4 parameter values (FR1:PWM1 frequency; dU1:PWM1 duty cycle; FR2:PWM2 frequency; dU2:PWM2 duty cycle); before shifting,there will be corresponding parameter name flashing
2. Directly press UP,DOWN key to modify current parameter value
3. 2-chhannel PWM are set 3 kinds frequency value, in frequency display interface,by long press SET to shift, 3 kinds frequency's duty cycle are the same (XXX:1Hz~999Hz; XX.X:0.1Khz~99.9Khz;X.X.X.:1Khz~150Khz)



Package List:
1 * Rectangle Generator

ProductExpirationType : Does Not Expire
ProductSiteLaunchDate : 2016-09-06T14:52:00.778Z
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 26111600
