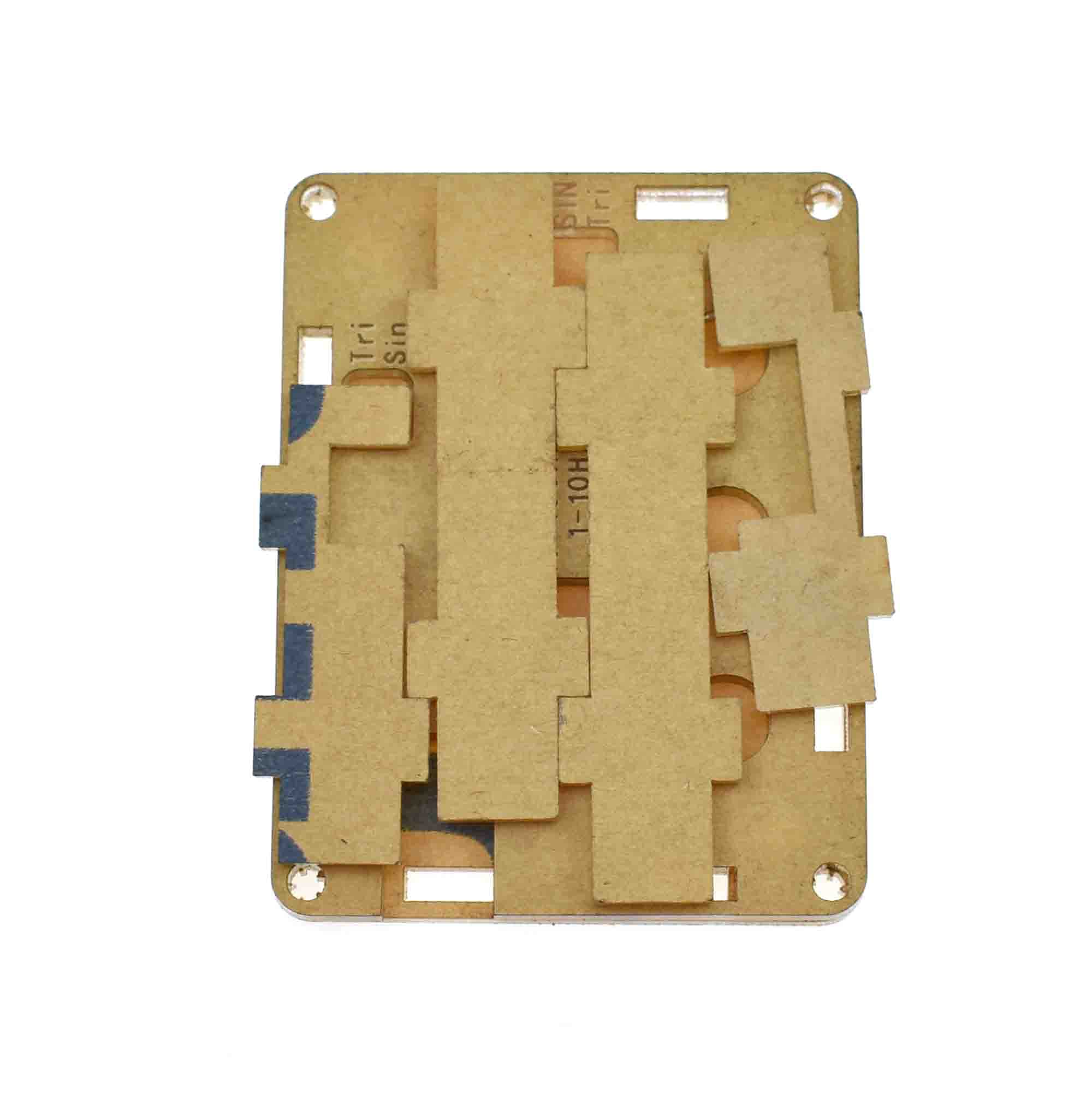

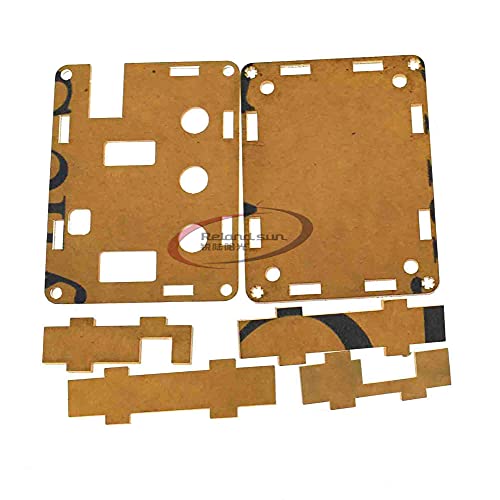

Reland Sun XR2206 High Precision Function Signal Generator DIY Kit Sine/Triangle/Square Output 1Hz-1MHz Adjustable Frequency Amplitude (Shell)

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 2000/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart

Product Information


Specification
Brand : Reland Sun
BulletPoint : Type:Other
BulletPoint1 : High resolution, can generate sine/triangle/square waveforms.
BulletPoint2 : Frequency range: 1Hz-1MHz.
BulletPoint3 : Frequency adjustment features coarse tuning and fine tuning.
BulletPoint4 : Wide power supply range, use 9-12V external power or 9V battery(NOT Included).
BulletPoint5 : DISPLAY METHODS: 2 wire generator has 3 display methods, actual current, percentage, Hz. Easy to read and improve work efficiency!
Color : as picture show
ExternallyAssignedProductIdentifier1 : 0765083561755
ExternallyAssignedProductIdentifier2 : 765083561755
ItemName : Reland Sun XR2206 High Precision Function Signal Generator DIY Kit Sine/Triangle/Square Output 1Hz-1MHz Adjustable Frequency Amplitude (Shell)
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 9 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : function-generators
Manufacturer : Reland Sun
ModelName : Eujgoov0wbpzes3mn
ModelNumber : Eujgoov0wbpzes3mn
NumberOfItems : 1
PartNumber : 1
ProductDescription : Features:
High resolution, can generate sine/triangle/square waveforms.
Frequency range: 1Hz-1MHz.
Adjustable frequency and amplitude.
Frequency adjustment features coarse tuning and fine tuning.
Wide power supply range, use 9-12V external power or 9V battery(NOT Included).
All are through hole components, easy for installation.

Specifications:
Voltage Supply: 9-12V DC Input
Waveforms: Square, Sine & Triangle
Impedance: 600 Ohm + 10%
Frequency: 1Hz-1MHz
SINE WAVE
Amplitude: 0-3V at 9V DC Input
Distortion: Less than 1% (at 1KHz)
Flatness: +0.05dB 1Hz - 100kHz
SQUARE WAVE
Amplitude: 8V (no load) at 9V DC Input
Rise Time: Less than 50ns (at 1KHz)
Fall Time: Less than 30ns (at 1KHz)
Symmetry: Less than 5% (at 1KHz)
TRIANGLE WAVE
Amplitude: 0-3V at 9V DC Input
Linearity: Less than 1% (up to 100KHz) 10mA

ProductSiteLaunchDate : 2021-07-27T15:00:28.903Z
Size : Shell
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 43201400
