Brand : ZIQINQIN
BulletPoint : Thermostats
BulletPoint1 : Independent Channel: Both channels are independent of each other and have phase synchronization function.
BulletPoint2 : Basic Parameters: Sampling rate: 200MSa/S, vertical resolution: 13bit and storage depth: 8k.
BulletPoint3 : Digital Display: 2.4-inch TFT LCD display, 320*240 resolution, with clear graphic interface.
BulletPoint4 : Measurement Mode: The measurement mode has 2 functions, one is a frequency meter, the other is a counter. They measure digital signals from the external input port.
BulletPoint5 : Frequency Meter: The frequency meter is used to measure the frequency. The frequency is measured by equal precise measurement. The coupling and gate time can be set.
Color : 1IN1OUT
ExternallyAssignedProductIdentifier : 7320430842876
ItemName : Pulse Frequency Signal Transmitter Rotating Current Voltage 4-20mA Module Alternating Measurement Rotational Speed(0-20MAOUT_0.1-100KHZIN)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : function-generators
Manufacturer : ZIQINQIN
ModelName : ZIQINQIN
ModelNumber : ZIQINQIN
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : ZIQINQIN
ProductDescription : Thermostats

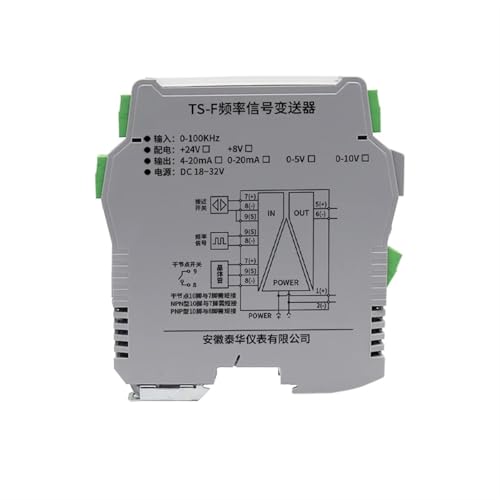

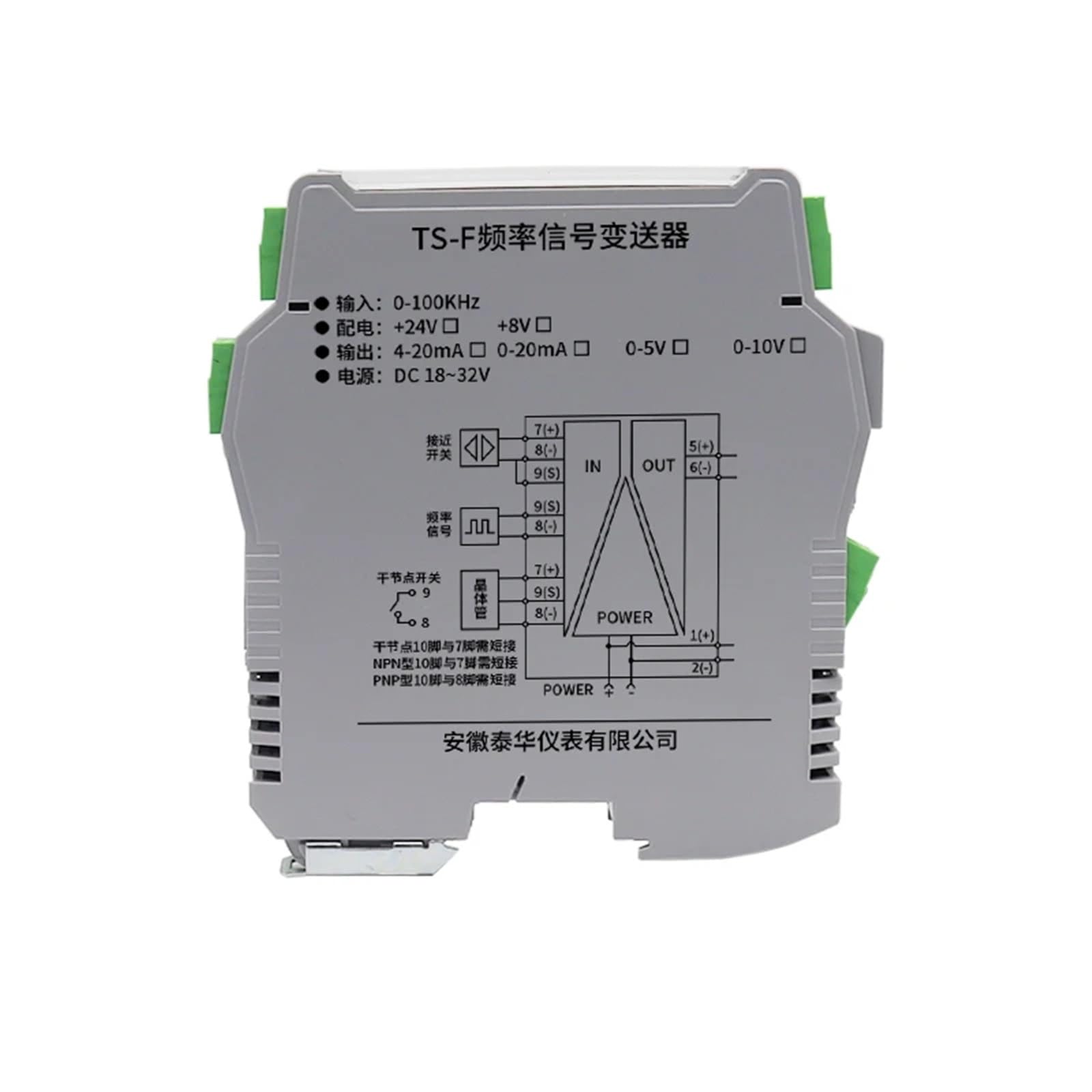

Pulse Frequency Signal Transmitter Rotating Current Voltage 4-20mA Module Alternating Current Frequency Measurement Rotational
TS-F Series frequency signal conversion isolator isolates and converts industrial field frequency signals into standard signals such as 4-20mA and 0-5V.
Connect the PC upper computer through the micro USB interface to configure the input signal input mode, range range, high and low level threshold range, voltage division ratio, distribution voltage, damping coefficient, range range of output signal, type upper and lower limit alarm values, and other parameters.
This product requires independent power supply and adopts DIN35mm standard guide rail independent installation mode (optional bus power supply function), with three isolation modes for input, output, and power supply.
An intelligent frequency signal isolation converter is used to isolate and convert industrial field frequency signals into standard signals such as 4-20mA and 0-5V. This product requires independent power supply, and adopts DIN35mm standard rail independent installation method (optional bus power supply function). Input, output, and power supply are isolated at three ends.
Input
Signal Type
Sine wave,triangular wave,square wave
Input Method
3Wire NPN,PNP Sensor,Passive frequency signal,Dry node signal,Two-wire proximity switch
Distribution Voltage
24V±10% or 12V±10%
Distribution Current
<;20mA
Frequency Range
0.1HZ~100KHZ
Input Range
0.5~350Vpp
Output
Signal Type
4-20mA,0-20mA,0-5V,0-10V ect
Output Load
Current output RL<;400,Voltage ouput RL>10K
Basic Parameters
Power
DC24V,Voltage range:DC18-32V
Measuring Accuracy of Consumed Current
<;60mA@DC24V
Current Output Accuracy
+0.015mA
Voltage Output Accuracy
±0.008A
Comprehensive Accuracy
Take the larger value of measurement accuracy and output accuracy
Temperatur
ProductSiteLaunchDate : 2024-07-26T08:29:08.332Z
Size : 0-20MAOUT_0.1-100KHZIN
UnitCount : 1
UnspscCode : 25170000
