Specification
Brand : YILUBAO
BulletPoint1 : Two-phase output frequency range: 5KHz~21 MHz
BulletPoint2 : Pulse signal generator;
BulletPoint3 : RF signal generator;
BulletPoint4 : Clock signal generator;
BulletPoint5 : Size: 45*35*20mm Length*width*height.
BulletPoint6 : Low jitter: 40 ps rms or less, Low distortion: 0.03% or less
BulletPoint7 : Output voltage: 0 Vp-p to 21 Vp-p/open
BulletPoint8 : Arbitrary waveform length 64 Mi words/waveform
Color : Green
ExternallyAssignedProductIdentifier : 7429803331617
IncludedComponents : see details
ItemName : Multiple Pulse Signal Generator modules 5K~21MHz A Variety of Pulse Signal g
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 15 centimeters
ItemPackageDimensions_Width : 9 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : function-generators
Manufacturer : YILUBAO
Material : ABS
MeasurementAccuracy : see details
ModelNumber : Brrnooxo1zcms6fb
NumberOfItems : 1
PartNumber : YILUBAO
PowerSourceType : Solar Powered

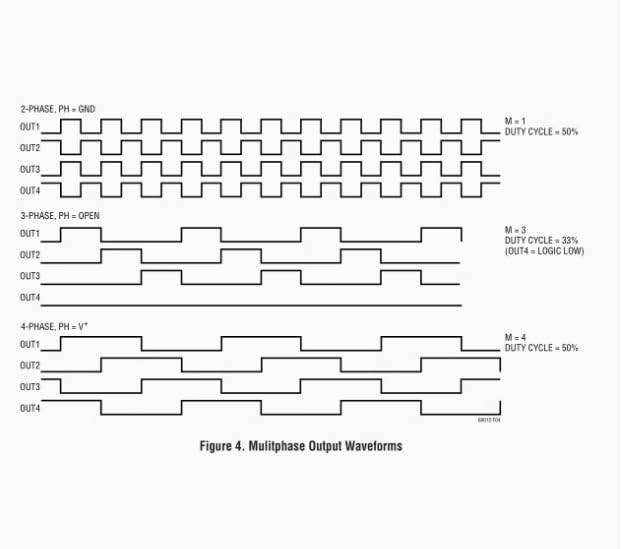

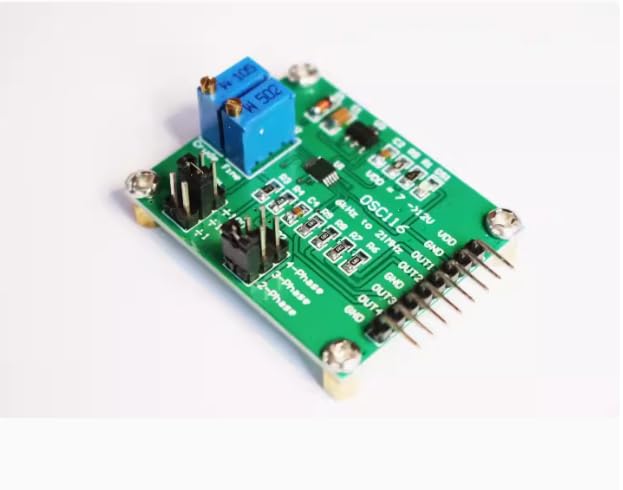

ProductDescription : OSC116_5K~21MHz a variety of pulse signal generator modules I. Module Introduction: The OSC116 module has four TTL pulse signal outputs with three selectable outputs (2, 3 or 4 phase outputs) The module is simple to use and adjusts frequency data via two potentiometer operation inputs. II. Module application: ● Pulse signal generator; ● RF signal generator; ● Clock signal generator; III. Module parameters Parameter units Two-phase output frequency range: 5KHz~21 MHz Three-phase output frequency range: ( 5KHz~21 MHz)/3 Four-phase output frequency range: ( 5KHz~21 MHz)/4 Output amplitude range: Vpp=2~5 V Operating voltage: 7~12 V Size: 45*35*20mm Length*width*height. Weight: 12 g IV. Interface (P1) VDD: Power supply positive (7~12V current<50mA) GND: The negative terminal of the power supply OUT1: Pulse signal output 1 OUT2: Pulse signal output 2 GND: The negative terminal of the power supply OUT3: Pulse signal output 3 OUT4: Pulse signal output 4 GND: The negative terminal of the power supply V. Jumper JP1 pin: Choose from three different crossover factors (/100, /10, /1) JP2 pin: choose three different output methods (2-phase, 3-phase, 4-phase) VI. Potentiometer RW1 potentiometer: coarse frequency. RW2 potentiometer: fine-tune frequency.
ProductSiteLaunchDate : 2022-07-29T01:09:20.576Z
Size : As Shown
Style : see details
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 41113600
