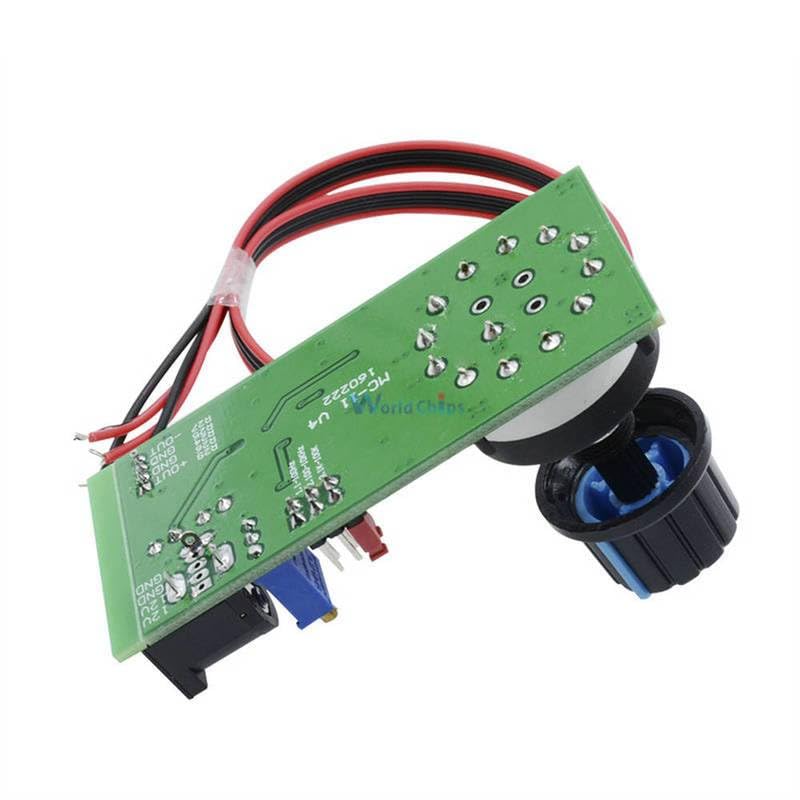

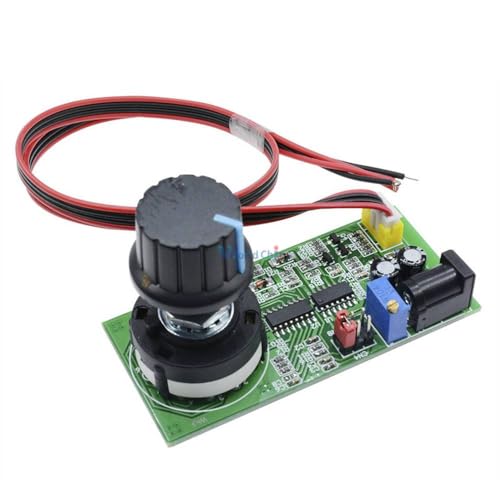

Specification Brand : Generic BulletPoint : DC 5-12V 1Hz-100KHz Frequency Signal Source Pulser PWM Square-wave Generator Module Newest ItemName : Generic DC 5-12V 1Hz-100KHz Frequency Signal Source Pulser PWM Square-Wave Generator Module Newest ItemTypeKeyword : function-generators Manufacturer : Generic PartNumber : YGQ_MODULE_10590 ProductDescription :
Features: Size:3.5x7cm Power Supply:DC 5-12V Pulse Output Signal Amplitude: 5-12 Vpp 50mA (pulse amplitude is less than the input voltage 0.3V) Output Pulse Polarity: Positive Pulse Output (from low to high rise + OUT) Negative Pulse Output (dropped from high to low -OUT) Frequency Adjustment Range: 1Hz—100Hz 100Hz—10KHz 1KHz—100KHz Pulse Width Modulation: A total of 11 stalls 0 output low, off state 1-9 output were 10% -90% 10 output high. Normally open (Such as the selection of a negative output, the function of all the contrary) Apply For:a square wave signal generator, frequency source,and a variety of needs and frequency modulation use the pulse width control device Package: 1 * 1Hz-100KHz DC 5-12V Frequency Signal Source Pulser PWM Square-wave Generator | |
