Specification
Brand : Yunseity
BulletPoint1 : Scope Of Application: Used as generator to generate for experimental development and use to generate for controlling motor drivers.
BulletPoint2 : LCD Display: The frequency and duty cycle of the LCD display are very clear. This module can communicate with serial port. All setting parameters are saved after power off.
BulletPoint3 : Four Frequency Range, Automatic Switching: XXX (without decimal point): the smallest unit is 1Hz, in the range 1Hz ~ 999Hz, X.XX (one hundred decimal point) is minimum unit 0.01Khz, ranging 1.00Khz ~ 9.99Khz, XX.X (ten in decimal): minimum unit is 0.1kHz; range 10.0KHz ~ 99.9KHz, X.X.X (decimal in ten and one hundred): minimum unit is 1Khz; range 1KHz ~ 150KHz.
BulletPoint4 : Generate Adjustable Pulses: This module generates adjustable pulses for MCU use and control related circuits (applications such as PWM dimming and speed regulation).
BulletPoint5 : Easy To Operate: PWM output, this module can set the frequency and duty cycle separately, with wide frequency range and high accuracy.
IncludedComponents : No

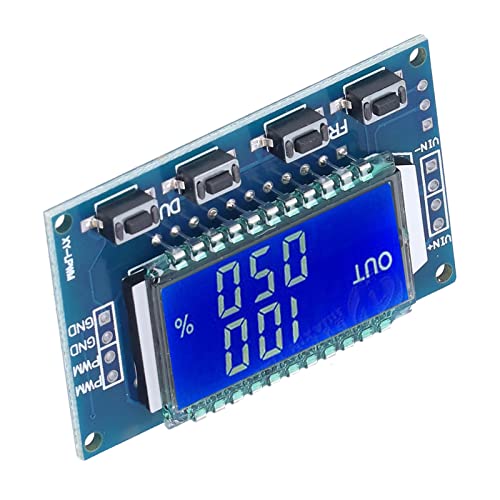

ItemName : Generator, Duty Cycle Module 1HZ~150KHZ LCD Display for Motor Control Driver for Experimental Development
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 8 centimeters
ItemPackageDimensions_Width : 4 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : function-generators
Manufacturer : Yunseity
MeasurementAccuracy : 0.1mm
ModelName : Yunseitym04vrbtc8h
ModelNumber : Yunseitym04vrbtc8h
NumberOfItems : 1
PartNumber : Yunseitym04vrbtc8h
ProductDescription : 1. Scope Of Application: Used as generator to generate for experimental development and use to generate for controlling motor drivers.
2. Generate Adjustable Pulses: This module generates adjustable pulses for MCU use and control related circuits (applications such as PWM dimming and speed regulation).
3. Easy To Operate: PWM output, this module can set the frequency and duty cycle separately, with wide frequency range and high accuracy.
4. LCD Display: The frequency and duty cycle of the LCD display are very clear. This module can communicate with serial port. All setting parameters are saved after power off.
5. Four Frequency Range, Automatic Switching: XXX (without decimal point): the smallest unit is 1Hz, in the range 1Hz ~ 999Hz, X.XX (one hundred decimal point) is minimum unit 0.01Khz, ranging 1.00Khz ~ 9.99Khz, XX.X (ten in decimal): minimum unit is 0.1kHz; range 10.0KHz ~ 99.9KHz, X.X.X (decimal in ten and one hundred): minimum unit is 1Khz; range 1KHz ~ 150KHz.

Spec:
Item Type: Generator Module
Material: Plastic
Frequency range is divided into four, automatic switching:
1.XXX (without decimal point): the smallest unit is 1Hz, in the range 1Hz ~ 999Hz;
2.X.XX (one hundred decimal point) is minimum unit 0.01Khz, ranging 1.00Khz ~ 9.99Khz;
3.XX.X (ten in decimal): minimum unit is 0.1kHz; range 10.0KHz ~ 99.9KHz
4.X.X.X (decimal in ten and one hundred): minimum unit is 1Khz; range 1KHz ~ 150KHz
e.g. frequency display: 100 indicates that the PWM output pulse of 100Hz;
1.01 represents the PWM output pulse 1.01K;
54.1 represents the PWM output pulse 54.1KHz;
1.2.4 indicates that the PWM output pulse of 124KHz;
Duty cycle range: 0 to
All setup parameters, power down save.
Module Parameters:
Working Voltage: 3.3 ~ 30V
Frequency range: 1Hz ~ 150KHz
The frequency accuracy: in each range accuracy is about 2%
Load capacity : output current of about 5 ~ 30ma
The
