Specification
Brand : Jauarta
BulletPoint1 : [Control ] Generating a rectangular for controlling a DC motor or a stepper motor driver
BulletPoint2 : [Scope of Application] Used for servo motor, stepping motor, electric clamping claw, replacing PLC pulse, etc
BulletPoint3 : [Number of Controls] Pulse mode can control the number of pulses, so as to control the number of revolutions of the stepping motor
BulletPoint4 : [Parameter] PWM pulse number frequency duty cycle adjustable rectangular stepper motor turns driver with shell module
BulletPoint5 : [Purpose] Can control the opening and closing of equipment, and can be used for switch fatigue test. Power off test to verify the reliability of the equipment
Color : As Shown
ExternallyAssignedProductIdentifier1 : 0658361267930
ExternallyAssignedProductIdentifier2 : 658361267930

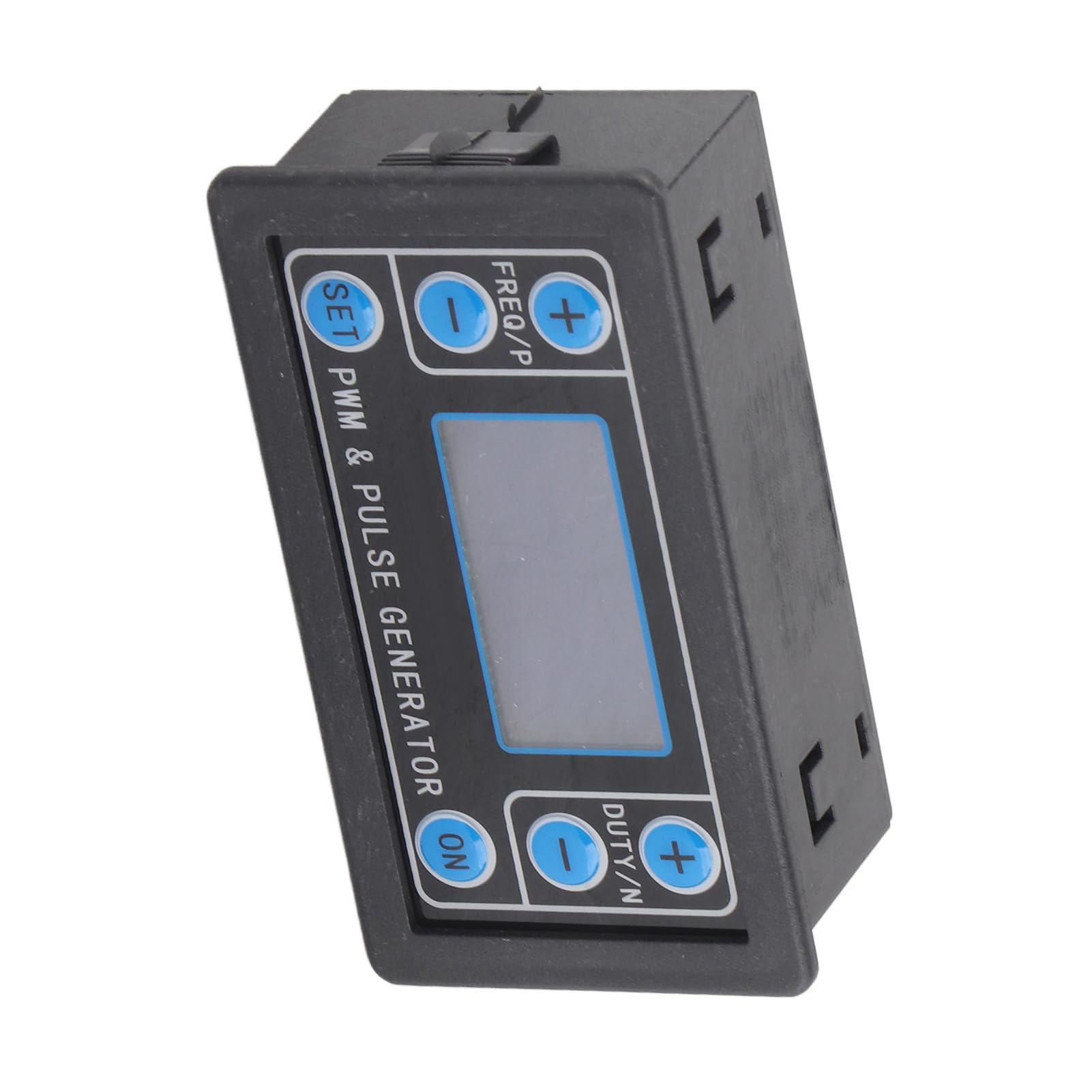

ItemName : Generator Adjustable Belt Shell 1Hz to 150KHz 3.3V to 30V PWM Board Module
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 14 centimeters
ItemPackageDimensions_Width : 9 centimeters
ItemTypeKeyword : function-generators
Manufacturer : Jauarta
Material : PCB electronics
ModelNumber : Jauartaw3o9yg46g2
PartNumber : Jauartaw3o9yg46g2
ProductDescription : Spec:
Item Type: Generator
Model: ZK-PP1K
Material: ABS
Purpose: Stepper Motor Turns Driver
Basic Parameters:
Working Voltage: 3.3 - 30V, with Anti Reverse Connection
Frequency Range: 1Hz ~ 150KHz, with an Accuracy of About 1%
Duty Cycle Range: %, 1% Step
Number of Pulses: , or Infinite (display - Represents Infinite)
Delay Output Time: 0.000s-9999s, the Minimum Setting is 1ms
Positive and Negative Pulse Width Length: 0.000s-9999s, the Minimum Setting is 1ms
Carrying Capacity: Less Than 30mA
Output Amplitude: the Amplitude is Equal to the Power Supply Voltage

How to Use:
1. When powered on, there is an output waveform
2. Waveform amplitude = power supply voltage
3. When the number of output pulses reaches the set value, the output will stop and 'out' will disappear
4. Press the on key to control whether the waveform exists or not. If out disappears, it means that there is no output waveform and 0 is output
5. Power on and restart or turn on the output with the on key, and recalculate the number of pulses

Package List:
1 x Generator
1 x Connection Line
1 x User Manual

ProductSiteLaunchDate : 2024-04-01T11:17:53.202Z
Size : 7.10X5.00X1.60CM
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 26111600
