Specification
Brand : WnewTools
BulletPoint1 : Signal amplitude up to 20Vpp.
BulletPoint2 : Output signal frequency high accuracy, good stability.
BulletPoint3 : Instrument can realize the adjustment program of function parameters , easy to use.
BulletPoint4 : Accompanying frequency meter, counter function, high cost.
BulletPoint5 : The instrument can output sine, square, triangle, ramp, pulse, staircase, DC voltage waveform.
Color : XY-KPWM
ExternallyAssignedProductIdentifier : 7685160121920
ExternallyAssignedProductIdentifier1 : 0769902979769
ExternallyAssignedProductIdentifier2 : 769902979769
IncludedComponents : No

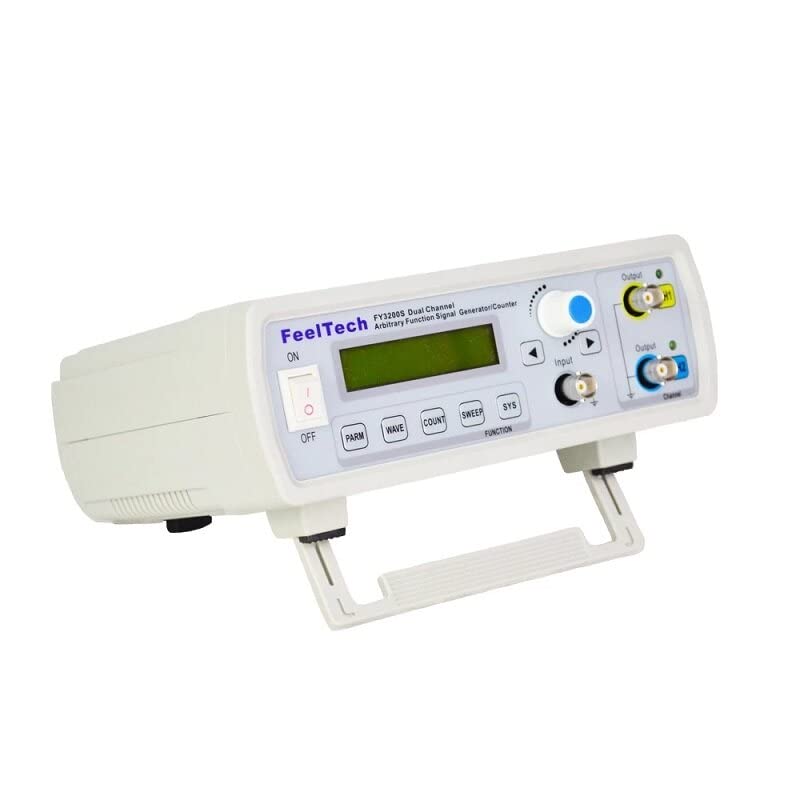

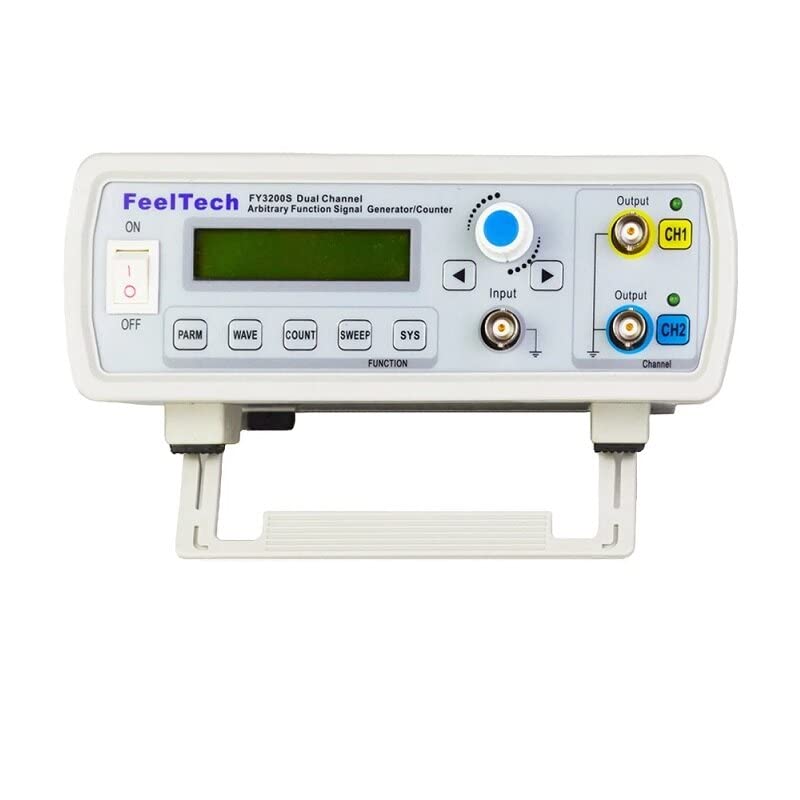

ItemName : FY3224S (FY3200S-24M) 24MHz Dual-channel Arbitrary Waveform DDS Function Signal Generator Sine Square Wave Sweep Counter
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 5 centimeters
ItemPackageDimensions_Width : 4 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : function-generators
Manufacturer : Wnew
MeasurementAccuracy : 1
MetalType : other
ModelName : FY3224S 24MHz Dual Channel DDS Function Signal Generator
ModelNumber : ATOOL1157268
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfPieces : 1
PackageLevel : unit
PartNumber : ATOOL1157268
PowerSourceType : hand_powered
ProductDescription :

Description:

FY3224S 24MHz Dual-channel Arbitrary Waveform DDS Function Signal Generator Sine Square Wave Sweep Counter

Features:

Output signal frequency high accuracy, good stability.

Signal amplitude up to 20Vpp.

Instrument can realize the adjustment program of function parameters , easy to use.

Accompanying frequency meter, counter function, high cost.

The instrument can output sine, square, triangle, ramp, pulse, staircase, DC voltage waveform.

Pulse wave pulse width precision can be adjustable.

Function:

1. Using DDS direct digital synthesis technology to generate precise, stable, low distortion output signal.

2. CH1 and CH2 completely symmetrical two channels, each channel can be independently set the parameters.

3. Supports user-defined waveforms, each arbitrary waveform memory depth 2048 x 12bits, 250MSa / s sampling rate.

4. Has burst burst output, selectable manual trigger, internal and external trigger CH2 trigger three trigger modes that allow the unit to any output 1 - 1048575 bursts.

5. Measurement functions: instrument comes with 100MHz frequency counter functions and pulse counter functions.

6. Waveform generator up to 12 bits wide, the output waveform is more delicate, waveform distortion is reduced magnitude.

7. With full CNC functions, display and digital adjustment phase current amplitude of the output signal, offset, frequency, duty cycle, and the two signals.

8. After connecting the instrument to the computer, you can use the computer through the PC control signal generator functions and parameters, and can be edited on a computer to download arbitrary waveform output waveform to the instrument.

9. Communication: serial communication, protocol completely open, user-friendly secondary development.

10. High frequency accuracy: frequency accuracy up to 10-6 magnitude.

11. High frequency resolution: the full range of frequency resolution 10mHz.

12. Tracking function: built-in frequency, amplitude, offset, duty cycle, waveform and other parameters follow function, easy to use.

13. Scanning features: a frequency linear sweep and logarithmic sweep function, scan start and end points can be set.

14. Storage feature: You can store 20 groups instrument state parameters set by the user, can be called up to Reproduce

15. Operation: key operation, LCD1602 LCD display in English, direct digital setting parameters or continuous adjustment knob.

16. Input voltage protection: extended power input range AC85V to AC240V wide voltage.

17. Output short circuit protection: All signal outputs can operate at over load short circuit 60S.

Specification:

Built-in switching power supply: AC85V-AC260V

Interface: USB

Signal output:

Output amplitude: ≥≥20Vp-p (no load)

Output Impedance: 50Ω ± 10%

DC polarization: ± 10V

Frequency range: 0Hz - 24MHz (orther 0Hz - 6MHz)

Counter:

Count range: 0-4294967295

Measurement frequency range: 1Hz - 100MHz

Input amplitude: 1Vp-p - 20Vp-p

Scan function:

Scanning mode: Linear sweep, logarithm scanning

Frequency Range: Start and end points set arbitrary

Frequency scanning range: M1 - M2 predetermined frequency

Scan rate: 1s ~ 999s / step

Other:

Storage and transferred functions: M0 - M9 (M0: default)

Size: 200mm (L) × 190mm(W) × 90mm(H)

Beeper function: to set open or closed by the program

Operating characteristics: All key operation, continuous adjustment knob

Environmental conditions: Temperature 0 - 40 ℃ humidity <80%

Package Included:

1 x FY3224S 24MHz Dual Channel DDS Function Signal Generator

1 x 1M power cable

1 x 1.25M USB cable

2 x 1.1M Q9 cables

Note:It is US plug type，will send a plug adapter according to you country.
