Specification
Brand : Deosdum
BulletPoint : 5pcs NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator
BulletPoint1 : EASY TO USE: It has an independent interface and a shortcut key made of silicone material, which greatly simplifies the steps and feels comfortable. After erecting the bracket, it is more convenient to operate and view data.
BulletPoint2 : ARBITRARY WAVEFORM GENERATOR: You can use sine wave, square wave, sawtooth wave, or arbitrary to generate pulse train, the number of pulse period is continuously adjustable between 0 1048575.
BulletPoint3 : It has an independent interface and a shortcut key made of silicone material, which greatly simplifies the steps and feels comfortable.
BulletPoint4 : USE FUNCTIONS It has output short circuit protection, all output end can work for 60s under the condition of load short circuit. High accuracy, superior performance, mount technology, large scale integrated circuit, high reliability and long service life.
BulletPoint5 : STORAGE AND CUSTOM : You can store 100 groups instrument state parameters set by the user, can be called up to Reproduce. Frequency output of Sine can be up to 40MHz. 266MSa/s sampling rate. It has 60 positions for saving user defined waveform. In addition, it has a very good software package that allows you to create your own waves and frequency combinations. After you save them, you can disconnect the unit from the computer and use them for any applications you wish.
Color : Ne555-red
ExternallyAssignedProductIdentifier : 7775191333529
ExternallyAssignedProductIdentifier1 : 0685330016398
ExternallyAssignedProductIdentifier2 : 685330016398
IncludedComponents : 1

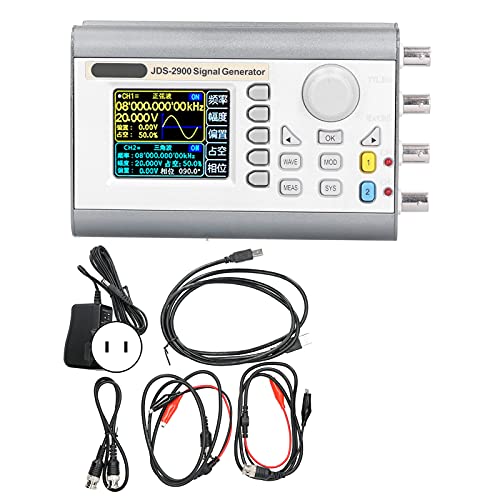

ItemName : Deosdum JDS2900-40M 2 Channel DDS Function Generator Pulse Frequency Meter AC100-240V (US Plug)
ItemPackageDimensions_Height : 9 centimeters
ItemPackageDimensions_Length : 22 centimeters
ItemPackageDimensions_Width : 16 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : function-generators
Manufacturer : Deosdum
MeasurementAccuracy : 1
ModelName : Hilitandfxvg2khtqc
ModelNumber : Hilitandfxvg2khtqc
NumberOfChannels : 2
NumberOfItems : 1
PartNumber : Deosdum3himbnfvyk16104-12
ProductDescription : AC 100-240V TAG-101 Signal Generator Low Frequency Audio Signal Generator Signal Source 10Hz-1MHz

Description:
1. TAG-101 type low frequency signal generator can produce 10 Hz to 1 M Hz signal, and the output distortion is very small.
2. The output voltage from 0 dB to 60 dB to 10 dB attenuation per step by step.
3. As the signal source by the production line, amateur, maintenance and other aspects of the welcome.
4. At the same time with the terminal synchronization with signal output, the control signal can accurately control the minimal strong signal.

Specification:
Frequency range: 10 Hz-1 MHz, 5 files
Accuracy: Full scale ± 5%
Output impedance: 600Ω
50: negative 50 dB, and can fine tune

Sine Wave Output:
1. output voltage: 5-6 V RMS
2. distortion rate: 500 Hz - - 50 KHz is not greater than 0.05% 50 Hz - 500 KHz not greater than 0.5%
3. output smoothness: 1 KHz reference ± 1.5 dB

Square wave output:
1. range: 10 Hz— — 1 M Hz
2. output level: 10 V peak value
3. rise time: 0.5 microseconds

Synchronization performance:
1. Range: 1 V voltage per input can change the oscillation frequency 1%
2. input impedance: 10 KΩ
3. Power Supply: AC 110 V; 60 Hz, 8W.

Package included: 1 x set of Audio signal generator
ProductSiteLaunchDate : 2023-03-01T11:47:46.303Z
Size : 3.1CM * 2.2CM
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 26111600
