Brand : DAOKAI
BulletPoint1 : WHAT IT DOES: The XR2206 signal generator can generate various waveform signals, such as sine wave, triangle wave, square wave, etc.Can be used to test and measure various circuits.
BulletPoint2 : Good precision: The XR2206 function signal generator is precise, with a transparent case box shell for good assemble.
BulletPoint3 : SPECIFICATION: Voltage Supply: 9-12V DC Input;Waveforms: Square, Sine, Triangle;Impedance: 600 Ohm + 10%;Frequency: 1Hz-1MHz.
BulletPoint4 : SINE WAVE: Amplitude: 0-3V at 9V DC input;Distortion: less than 1% (at 1KHz);Flatness: +0.05dB 1Hz - 100kHz.
BulletPoint5 : SQUARE WAVE: Amplitude: 8V (no load) at 9V DC Input;Rise Time: less than 50ns (at 1KHz);Fall Time: less than 30ns (at 1KHz);Symmetry: less than 5% (at 1KHz).
BulletPoint6 : TRIANGLE WAVE: Amplitude: 0-3V at 9V DC input;Linearity: less than 1% (up to 100 KHz) 10 mA.
BulletPoint7 : PRODUCTS INCLUDE: 1 x XR2206 Signal Generator module;1 x DC male cable.
CircuitBreakerType : Standard
Color : XR2206
CurrentRating : 1 amps
ExternallyAssignedProductIdentifier1 : 0724873029134
ExternallyAssignedProductIdentifier2 : 724873029134
IncludedComponents : 1 x XR2206 module;1 x DC male cable

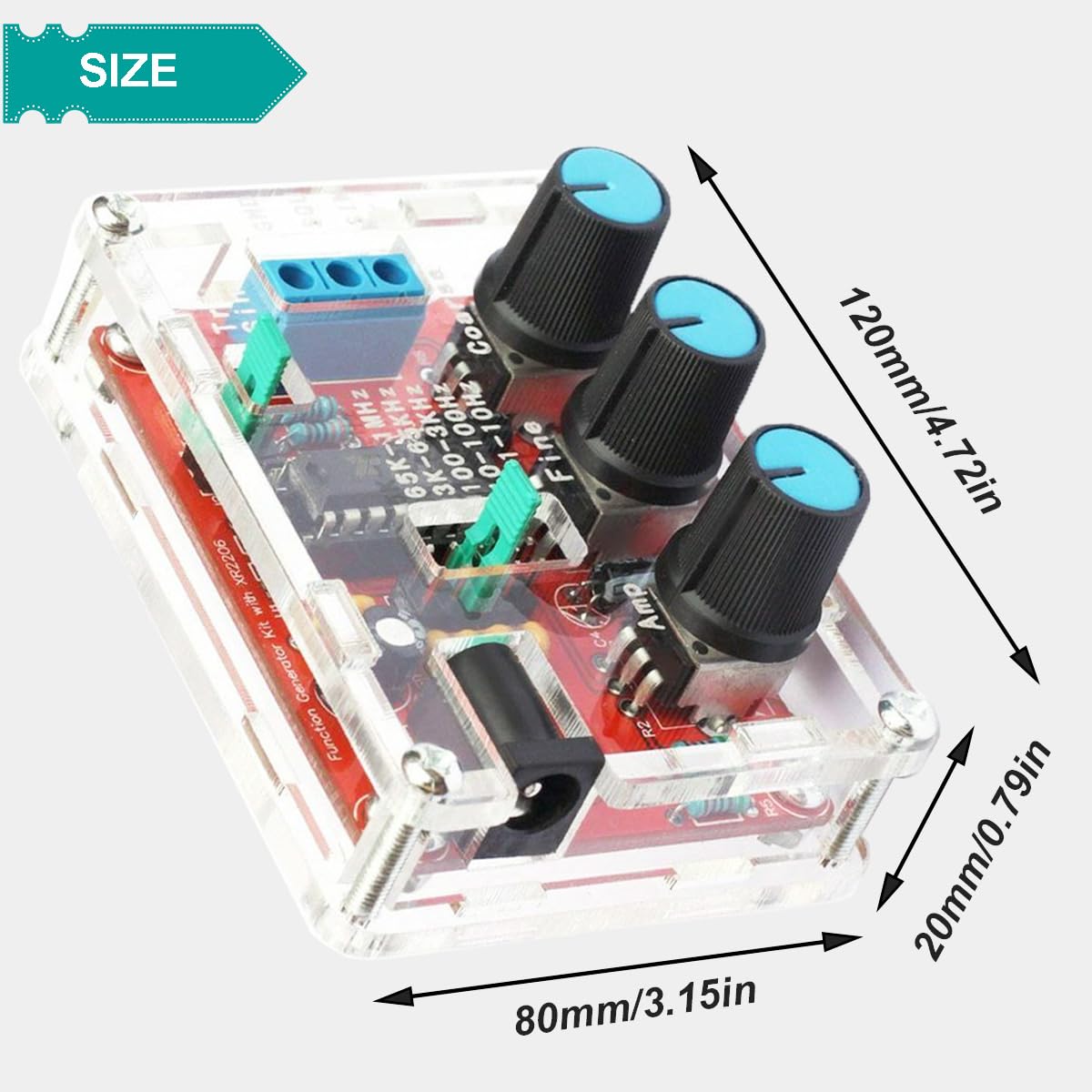

ItemName : DAOKAI XR2206 Signal Generator Module High Precision Function Signal Generator Frequency 9-12V DC Input Sine/Triangle/Square Output 1Hz-1MHz Adjustable,with DC Male Cable
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 5 centimeters
ItemTypeKeyword : function-generators
Manufacturer : DAOKAI
ModelNumber : JA-DA-025
MountingType : Surface Mount
NumberOfItems : 1
NumberOfPoles : 1
PartNumber : JA-DA-025
ProductDescription : Features:
1.High resolution, can generate sine/triangle/square waveforms.
2.Frequency range: 1Hz-1MHz.
3.Adjustable frequency and amplitude.
4.Frequency adjustment features coarse tuning and fine tuning.
5.Wide power supply range, use 9-12V external power or 9V battery(NOT Included).
6.All are through hole components, easy for installation.

Specifications:
Amplitude: 0-3V at 9V DC Input
Distortion: Less than 1% (at 1KHz)
Flatness: +0.05dB 1Hz - 100kHz

Amplitude: 8V (no load) at 9V DC Input
Rise Time: Less than 50ns (at 1KHz)
Fall Time: Less than 30ns (at 1KHz)

Symmetry: Less than 5% (at 1KHz)
TRIANGLE WAVE:Amplitude: 0-3V at 9V DC Input
Linearity: Less than 1% (up to 100KHz) 10mA

Precautions for welding installation:
1.The components are welding the front board, from low to high principles, namely the first low welding components, such as, capacitor, resistor, diode, etc.
2. Welding IC socket, terminal blocks, finally power socket, adjustable potentiometer.
3.Insert the power supply, power supply for 5.5 x 2.1 port, inside and outside is negative polarity;Fitting for 9-12 v power supply voltage, and the waveform may not be stable for more than 12V.

Package Includes:

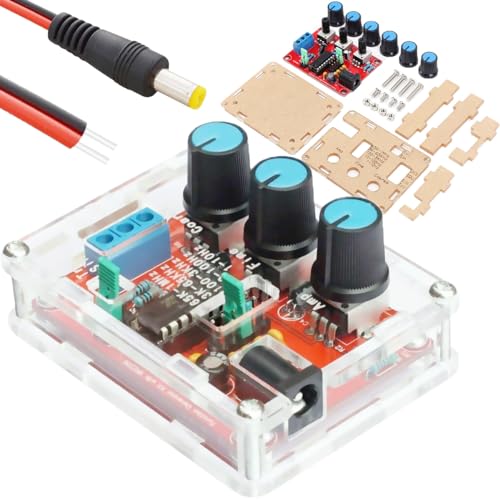

1 x XR2206 Signal Generator module
1 x DC male cable
